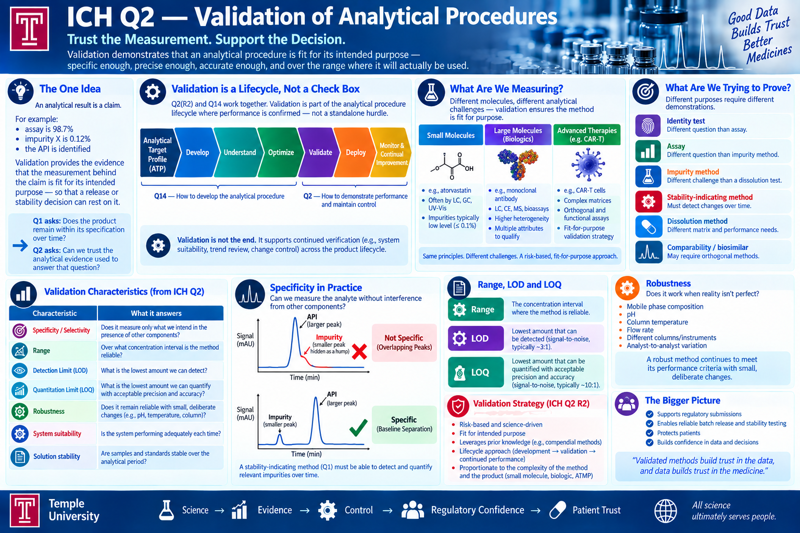

• 1.3.2: ICH Q2 — Validation of Analytical Procedures
• 1.3.3: ICH Q3 — Impurities
• 1.3.4: ICH Q4 — Pharmacopoeial Harmonisation
• 1.3.5: ICH Q5 — Quality of Biotechnological Products
• 1.3.6: ICH Q6 — Specifications
• 1.3.7: ICH Q7 — GMP for Active Pharmaceutical Ingredients
• 1.3.8: ICH Q8–Q12 — Development, Risk, Quality System & Lifecycle
• 1.3.9: ICH Q13 — Continuous Manufacturing

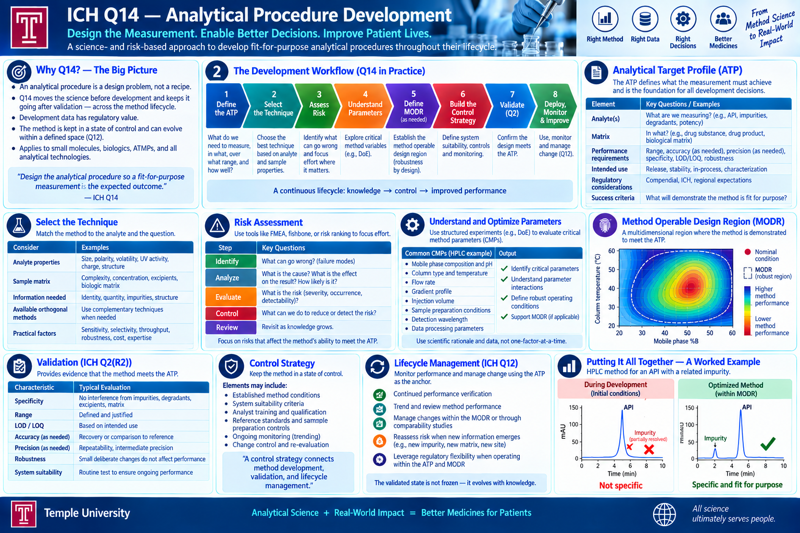

• 1.3.10: ICH Q14 — Analytical Procedure Development
• 1.4: Clinical Development — Removing Uncertainty
• 1.5: Quality Control — Assuring Quality Across the Supply Chain
• 1.6: Lab Automation and Process Analytical Technology — Moving the Measurement to the Line
• 1.7: Knowledge Management — From Data to Wisdom, and the Recipe That Ties It Together

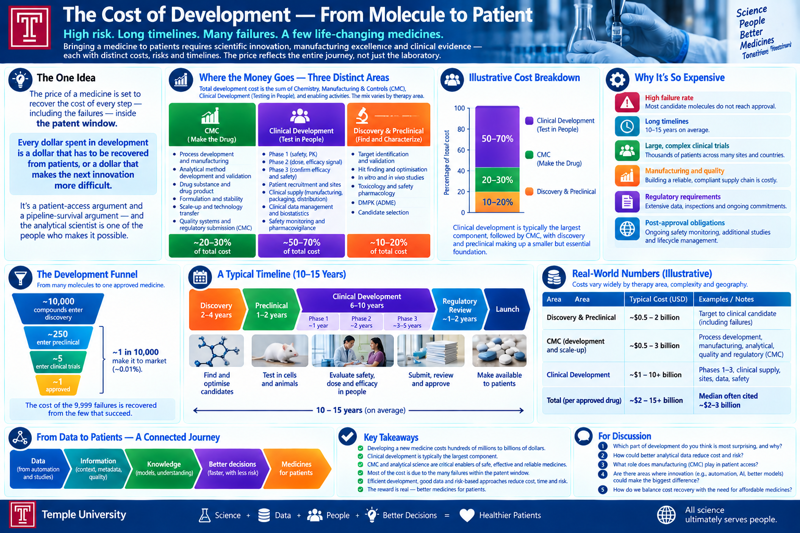

• 1.8: The Cost of Development — and Why It Ends Up in the Price of the Drug
• 2: Week 2 — Sep 21: Analytical Methods Development, the Modality Landscape, and Risk

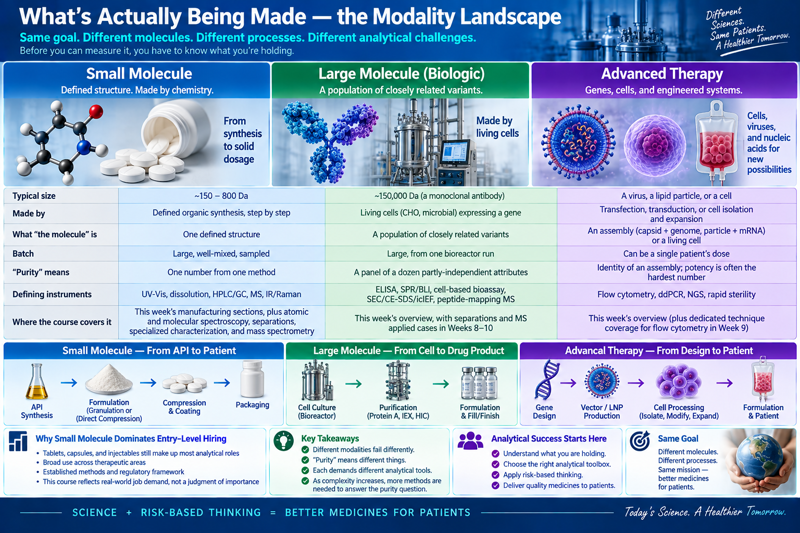

• 2.1: What's Actually Being Made — the Modality Landscape
• 2.1.1: How an API Is Made — Synthesis and Scale-Up
• 2.1.2: From Powder to Tablet — Solid-Dosage Manufacturing
• 2.1.3: How the Toolkit Scales Up — Large Molecules & Biologics
• 2.1.4: The Analytical Frontier — Advanced Therapies

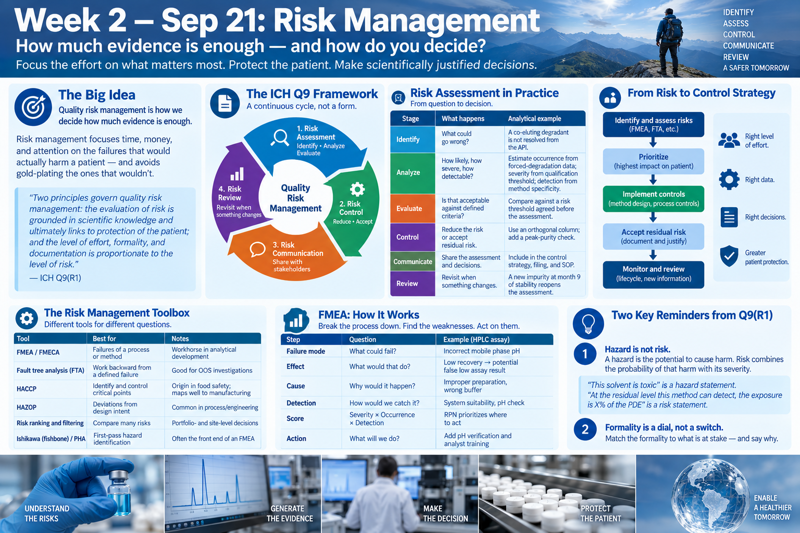

• 2.2: Quality Risk Management — How Much Evidence Is Enough
• 2.2.1: FMEA in Detail — Scoring, Scaling, and Where It Breaks

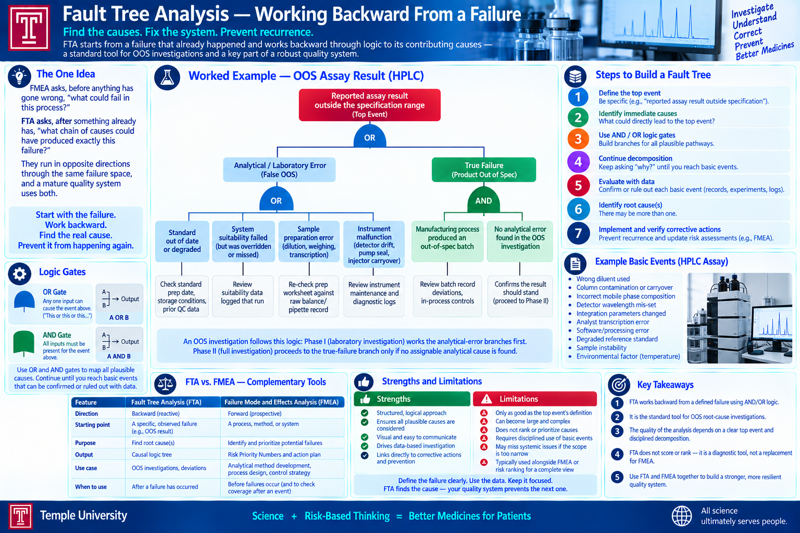

• 2.2.2: Fault Tree Analysis — Working Backward From a Failure

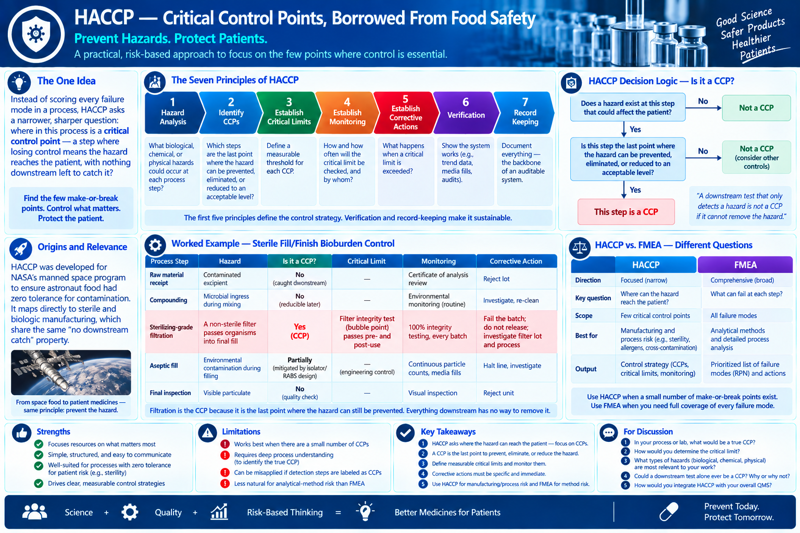

• 2.2.3: HACCP — Critical Control Points, Borrowed From Food Safety

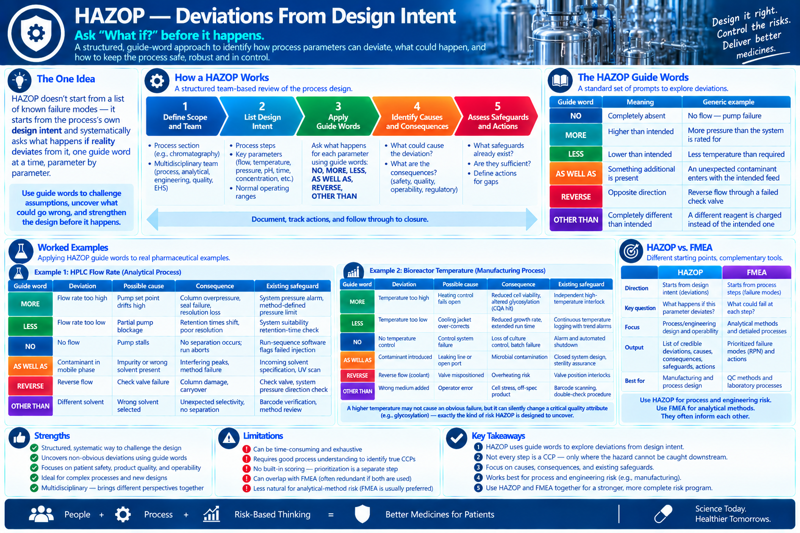

• 2.2.4: HAZOP — Deviations From Design Intent

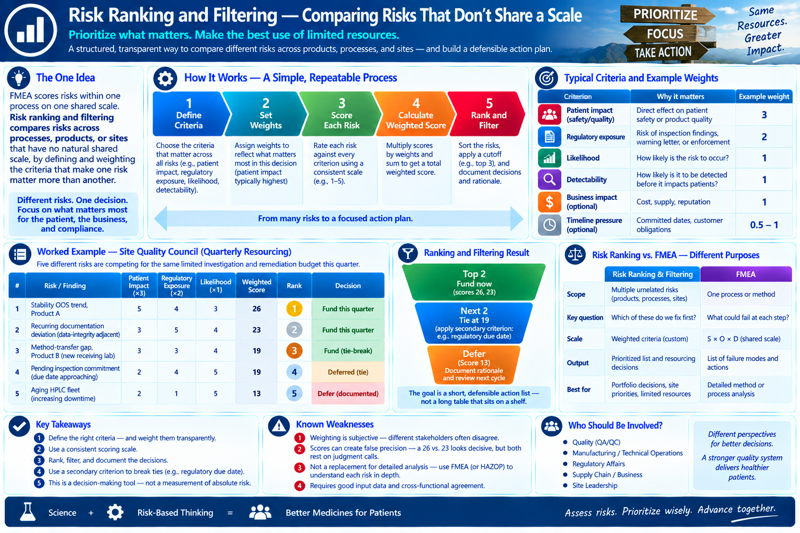

• 2.2.5: Risk Ranking and Filtering — Comparing Risks That Don't Share a Scale

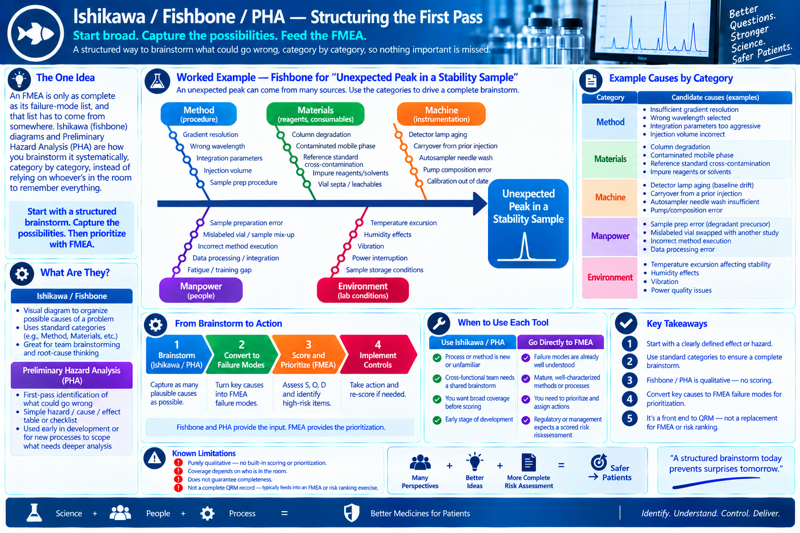

• 2.2.6: Ishikawa / Fishbone / PHA — Structuring the First Pass
• 3: Week 3 — Sep 28: Introduction to NMR Spectroscopy
• 4: Week 4 — Oct 5: NMR Spectroscopy, Continued — Interpretation
• 5: Week 5 — Oct 12: Atomic Spectroscopy (Risk Homework)
• 6: Week 6 — Oct 19: Molecular Spectroscopy (Risk Homework)
• 7: Week 7 — Oct 26: Mid-Term Exam
• 8: Week 8 — Nov 2: Separation Methods — Theory Through Proof of Performance
• 8.1: Chromatographic Theory — Retention, Selectivity, Efficiency, Resolution
• 8.2: LC Method Development
• 8.3: LC Stability-Indicating Methods
• 8.4: The Wet-Chemistry Workhorses — Karl Fischer, Titrimetry, Ion Chromatography
• 9: Week 9 — Nov 9: Specialized and Solid-State Characterization
• 9.1: Thermal Analysis — DSC and TGA
• 9.2: X-Ray Powder Diffraction and Crystallography
• 9.3: Flow Cytometry — Instrumentation, Controls, and Reach
• 9.4: Dissolution — The Performance Test
• 10: Week 10 — Nov 16: Mass Spectrometry (Risk Homework)
• 11: Week 11 — Nov 23: Process Analytical Technology (PAT) and Automation
• 12: Week 12 — Nov 30: Chemometrics & Miscellaneous Methods, Final Paper Presentations
• 13: Week 13 — Dec 7: Final Exam
• 14: Week 14 — Dec 14: Make-Up Class

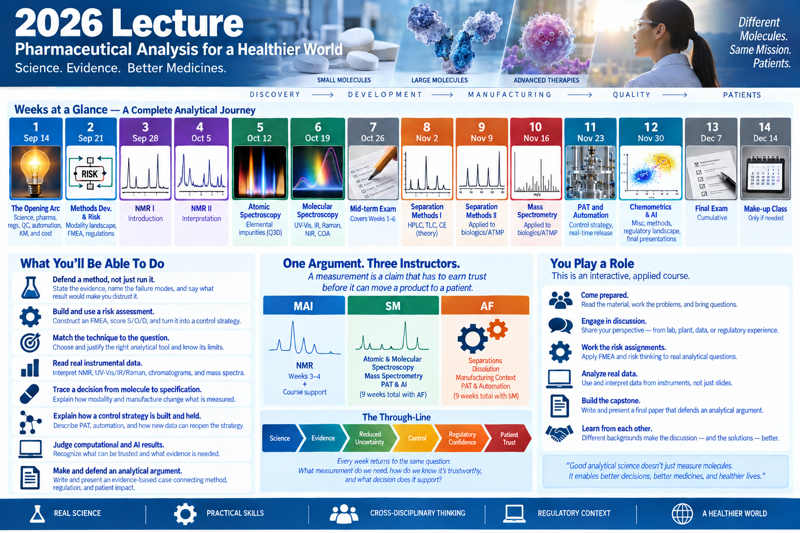

This is the 2026 course, organised weeek by week to match the department’s actual syllabus. Each week has its own folder in the left menu.

What you’ll be able to do

By the end of the term, you should be able to:

• Defend a method, not just run it. For any validated analytical method, state what evidence supports it, name its most likely failure modes, and say what result would make you distrust it.
• Build and use a risk assessment. Construct a method or process FMEA, score severity, occurrence, and detection without inflating detection to look reassuring, and turn the assessment into a control strategy a regulator could follow (Week 2, and the risk-homework checkpoints in Weeks 5, 6, and 10).
• Match the technique to the question. Given an analytical problem — an elemental impurity, an unknown degradant, a charge-variant shift, a polymorph question — choose and justify the right technique among NMR, atomic and molecular spectroscopy, chromatography, solid-state/thermal characterization, flow cytometry, and mass spectrometry, and state what that technique can’t tell you (Weeks 3–10).
• Read real instrumental data. Interpret an NMR spectrum, a UV-Vis/IR/Raman trace, a chromatogram, or a mass spectrum well enough to identify a structure, flag a co-elution or ion-suppression artifact, or catch a spectral match that looks right but isn’t.
• Trace a decision from molecule to specification. Explain how what’s being made — small molecule, biologic, or advanced therapy — changes which failure modes matter and how “identity” or “purity” is even defined, and read a Certificate of Analysis line by line back to the method and manufacturing step behind it.
• Explain how a control strategy is built, held, and reopened. Describe the at-/on-/in-line measurement hierarchy and real-time release testing, and how a complaint or pharmacovigilance signal can force a control strategy that passed every existing test to be revisited (Week 11).
• Judge whether a computational or AI-based result can be trusted. Distinguish predictive/chemometric models from generative AI by how each is governed, recognise information leakage or an out-of-domain prediction, and state what evidence a model needs before it can support a regulatory decision (Week 12).
• Make and defend an evidence-based analytical argument in writing, naming a method’s failure modes and their detectability and connecting the technique to a regulatory expectation and a patient consequence (final paper and capstone).

One argument, taught by three instructors

The course is not a tour of instruments. It is a single argument — a measurement is a claim that has to earn trust before it can move a product or a patient — and it’s taught by three people: MAI, SM, and AF. AF and SM together lead nine of the term’s lecture sessions; MAI leads two (NMR); the rest are the mid-term, the final, and the occasional make-up.

1. The ground (Weeks 1–2). Why analysis is a science, what it is for inside a company that has to discover, develop, and sell a medicine, the regulations that govern every analytical decision, how a method actually gets developed and regulated, what’s actually being made across small molecule / large molecule / advanced therapy, and the risk thinking that decides how much evidence is enough.
2. NMR (Weeks 3–4, MAI). Introduction to NMR spectroscopy, then interpretation — the one part of the term AF and SM hand off entirely.
3. The AF/SM technique arc (Weeks 5–6, 8–10). Atomic spectroscopy and molecular spectroscopy (with UV-Vis and a Certificate-of-Analysis read-through) are taught on the small molecule alone; separation methods and mass spectrometry each add an applied case extending the same technique to biologics and advanced therapies. In between, Week 9 pivots to the specialized and solid-state techniques that don’t fit that main arc but are load-bearing in a real QC lab — DSC/TGA, X-ray powder diffraction and crystallography, flow cytometry, and dissolution. A risk-homework thread runs through the atomic-spectroscopy, molecular-spectroscopy, and mass-spectrometry weeks.
4. Control and the data layer (Weeks 11–12). Process analytical technology and automation — how a control strategy is built and held once a product is made for real — then chemometrics, miscellaneous methods (AI and the regulatory landscape), and final paper presentations.

The mid-term falls after the first technique pair; the final is cumulative, with Week 14 held only if a make-up session is absolutely necessary. Every week returns to the same refrain: science → evidence → reduced uncertainty → control → regulatory confidence → patient trust.

The weeks at a glance

Wk	Date	Instructor	Topic	Assessment
1	Sep 14	MAI, SM, AF*	Fundamentals of analytical development, measurement basics	—
2	Sep 21	SM*/AF	Analytical methods development & regulations; the modality landscape; FMEA & risk introduction	Risk-homework thread begins
3	Sep 28	MAI	Introduction to NMR spectroscopy	Problems for next class
4	Oct 5	MAI	NMR continued — interpretation of spectra	Problem set review
5	Oct 12	SM	Atomic spectroscopy	Risk homework (1 of 3)
6	Oct 19	SM	Molecular spectroscopy (UV-Vis, IR/Raman/NIR); reading a Certificate of Analysis	Risk homework (2 of 3)
7	Oct 26	AF/MAI/SM	Mid-term exam — covers Weeks 1–6	Mid-term
8	Nov 2	AF	Separation methods — theory, method development, HPLC/TLC/CE, proving it keeps working; applied to biologics/ATMP	—
9	Nov 9	AF	Specialized & solid-state characterization — DSC/TGA, XRPD/X-ray crystallography, flow cytometry, dissolution	—
10	Nov 16	SM	Mass spectrometry; applied to biologics/ATMP	Risk homework (3 of 3)
11	Nov 23	SM/AF	Process analytical technology (PAT) and automation	—
12	Nov 30	SM/AF	Chemometric & miscellaneous methods (AI, regulatory landscape); final paper presentations	Capstone assigned; papers presented
13	Dec 7	AF/SM/MAI	Final exam — cumulative	Final exam
14	Dec 14	AF/SM/MAI	Make-up class — only if absolutely necessary	—

Week 1

Week 1 — Sep 14 is the opening arc in full, and it is substantial: it moves deliberately in one direction — science → pharma → regs — then reframes clinical development as the progressive removal of uncertainty and turns to the working detail: quality control across the supply chain, lab automation and process analytical technology, knowledge management, and the cost of development. It is the whole course in miniature; the weeks that follow slow down and do the work.

Work through each week’s sections in order; use the “On this page” list on the right to move within a section, and the ← / → buttons at the foot of each page to step through the course in sequence.

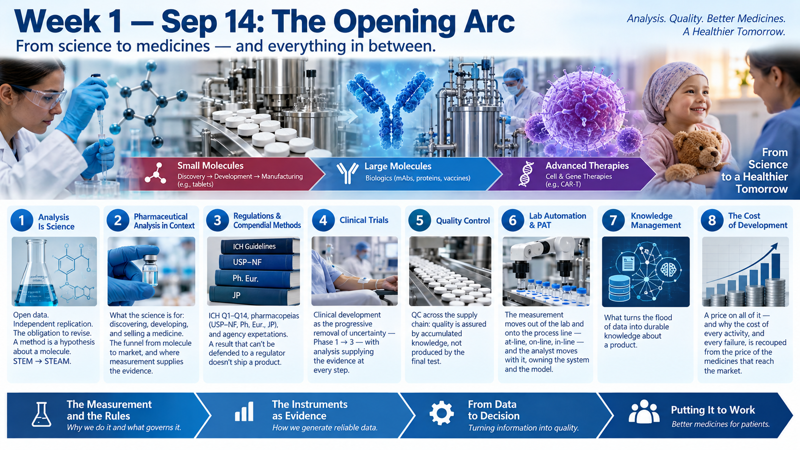

1 - Week 1 — Sep 14: The Opening Arc

Everything in this folder is Lecture 1. It is the opening arc of the course, and it moves deliberately in one direction — science → pharma → regs — before turning to the working detail that fills the rest of the term.

It also plants the course’s three movements in one sitting: the measurement and the rules (sections 1–3), the modalities, made and measured together (sections 4–6, and the three-modality arrow above — small molecule, large molecule, advanced therapy, each taught with the instruments that characterise it), and from data to decision (section 7). Later weeks slow each of these down.

What we cover today

How to use this

Work through the sections in order. Use the menu on the left to see where you are, the “On this page” list on the right to move within a section, and the ← / → buttons at the foot of each page to step through the whole lecture in sequence.

Later weeks each get their own folder in the left menu.

On the job

This course is built around a simple test: could you use this in your first month in an analytical role? A few things that are true on day one, regardless of company or modality:

• Every result you generate is a GMP record the moment it’s written down — dated, signed, and defensible, not a scratch-pad number.
• You will spend far more time reading and defending other people’s results (a CoA, a stability report, an OOS investigation) than generating your own from a blank page.
• “The SOP says so” is not a reason a regulator accepts — you will be asked why the SOP says so, and the answer is always evidence and risk.
• Nobody will hand you a finished specification. You will be handed a partial one and asked whether it’s still adequate — which is exactly what Week 2 starts teaching you to judge.

1.1 - Pharmaceutical Analysis Is Science — From STEM to STEAM

Every year this course opens with a question that sounds settled but isn’t: is what we do a science, or is it just a set of techniques we run? Your answer shapes how you’ll spend the rest of the term — and, frankly, your career.

A working definition

The American Physical Society defines it this way:

Science is the systematic enterprise of gathering knowledge about the universe and organizing and condensing that knowledge into testable laws and theories.

The success and credibility of science are anchored in the willingness of scientists to:

• Expose their ideas and results to independent testing and replication by others. This requires the open exchange of data, procedures and materials.
• Abandon or modify previously accepted conclusions when confronted with more complete or reliable experimental or observational evidence.

I like this definition because it doesn’t lead with test tubes or equations. It leads with a set of commitments — to openness, to replication, and to changing your mind. That is a definition built around continuous learning.

Pharmaceutical analysis meets that definition

Hold our field up against those two commitments and it lines up point for point.

Independent testing and the open exchange of data, procedures and materials. This is not an aspiration in pharmaceutical analysis — it is the regulatory and scientific infrastructure. Compendial methods in the USP–NF, Ph. Eur. and JP are published procedures anyone can run. Reference standards are shared materials with characterized values. Method validation, system suitability, and inter-laboratory proficiency testing exist precisely so that a result is not believed because we produced it, but because it can be reproduced by someone who doesn’t work here.

Willingness to abandon or modify accepted conclusions. An out-of-specification investigation is exactly this: evidence arrives that contradicts what we thought we knew, and we are obligated to follow it. So is the method lifecycle in ICH Q14 and Q2(R2) — a method is not finished when it’s validated; it is monitored, and revised when the data say so. Pharmacopeias issue revisions. Guidance evolves. A control strategy that was current five years ago may now be wrong, and the discipline is designed to notice.

A method, in this light, is a hypothesis about a molecule. Every injection is a test of it. When the system suitability fails, when the recovery drifts, when a new impurity appears — the discipline doesn’t ask us to defend the old conclusion. It asks us to update it.

STEM → STEAM

We usually file analytical chemistry under STEM, and each letter genuinely applies:

• Science — the reasoning above: hypothesis, evidence, revision.
• Technology — the instruments: LC, GC, mass spec, NMR, spectroscopy.
• Engineering — the systems that make a number trustworthy: sampling plans, control strategies, qualification, data integrity.
• Mathematics — statistics, calibration, uncertainty, chemometrics.

But the letter that’s usually left out is the one that separates a technician from an analyst. The A — Arts — is not decoration:

• Judgment — deciding what is fit for purpose, what is a real signal, when “close enough” isn’t.
• Interpretation — reading a chromatogram or a spectrum as a story about a sample, not just a set of peaks.
• Experimental design as craft — a well-designed method or DOE has the same economy as a good proof or a good sentence.
• Visualization and communication — a result that can’t be explained to a reviewer, a regulator, or a patient advocate hasn’t finished being science.
• Ethics — the discipline to report the data you got, not the data you wanted.

STEM gives you the tools. The A is what you bring to them.

What this means for the semester

Treat every method we cover as a claim that can be tested and, sometimes, overturned. Ask what evidence would change it. Keep your data and procedures open enough that someone else could check your work — because in this field, someone will. That habit is the science.

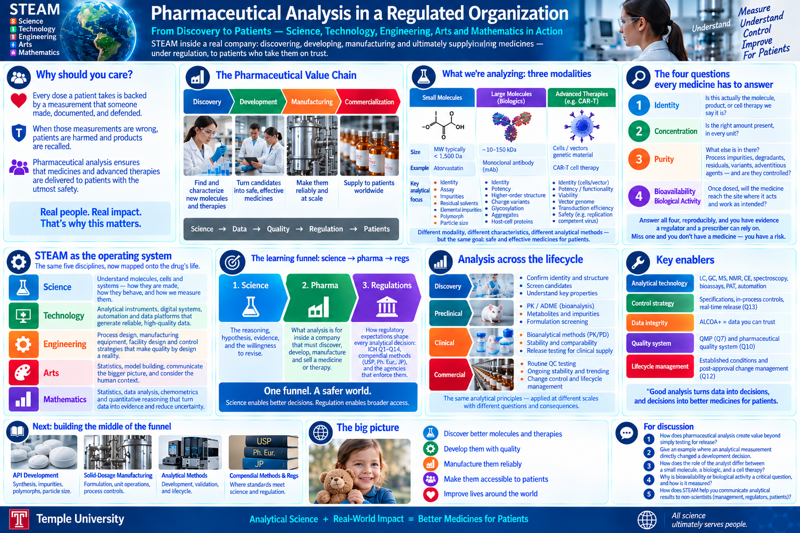

1.2 - Pharmaceutical Analysis in a Regulated Organization

The last section argued that pharmaceutical analysis is science: hypothesis, evidence, and the willingness to revise. Now the setting changes. Put that science inside an organization whose job is to discover a molecule, develop it into a medicine, and ultimately sell it — under regulation, to patients who will take it on trust. STEAM doesn’t get left at the lab door. It becomes the operating system of the whole company.

Why should you care?

Pharmaceutical analysis is the set of practices used to ensure that medicines and devices are delivered to patients with the utmost safety. Every dose a patient takes is backed by a measurement that someone made, documented, and defended. When those measurements are wrong, patients are harmed and products are recalled. That is the stake behind everything in this course.

What we’re analyzing: the API

We will focus on the Active Pharmaceutical Ingredient (API) — the component that does the therapeutic work. APIs fall into two broad classes, and they demand different analytical toolboxes:

Different molecule, different instruments — but the same four questions.

The four questions every medicine has to answer

Leveraging state-of-the-art analytical technology, the medicine is characterized to establish:

1. Identity — is this actually the molecule we say it is?
2. Concentration (strength / assay) — is the right amount present, in every unit?
3. Purity — what else is in there? Process impurities, degradation products, residual solvents, and — for large molecules — aggregates and variants.
4. Bioavailability — once dosed, will the API actually reach the site where it acts?

Answer all four, reproducibly, and you have evidence a regulator and a prescriber can rely on. Miss one and you don’t have a medicine — you have a compound.

STEAM as the operating system of a regulated company

The same five letters from Lecture 1, now mapped onto the drug’s life:

• Science — during discovery, characterization tells you whether you even have the molecule you intended, and how it behaves.
• Technology — during development, the analytical platform (LC, MS, NMR, spectroscopy, bioassay) generates the data that defines the product.
• Engineering — the control strategy: specifications, sampling plans, in-process controls, method qualification, and data integrity — the systems that make a number trustworthy at commercial scale.
• Mathematics — statistics, calibration, uncertainty, stability modeling, and the setting of acceptance criteria that are neither too loose to be safe nor too tight to be manufacturable.
• Arts — the judgment to decide what is fit for purpose at each stage, to interpret a result in context, and to explain it to a reviewer, an inspector, or a patient advocate.

The learning funnel: science → pharma → regs

This course moves in that order on purpose:

1. Science — the reasoning. (Lecture 1.)
2. Pharma — this section: what analysis is for inside a company that must discover, develop, and sell a medicine.
3. Regs — how regulatory expectation shapes every analytical decision: the ICH guidelines (Q1–Q14), general compendial methods (USP–NF, Ph. Eur., JP), and the agencies that enforce them. We’ll get into ICH in detail later; for now, just know that the analytical work has to follow it.

The sections that follow build out the middle of that funnel:

• Quality Control (QC) — the function that tests material against its specification and releases (or rejects) it.
• Physical and chemical properties of drug molecules — solubility, pKa, partition, polymorphism, and stability, and why each one drives an analytical or formulation decision.
• General compendial methods and the regulatory influence on analytical development — where the “standard” methods come from, and how regulatory expectation pulls method development in a particular direction from day one.

1.3 - Regulations & Compendial Methods

Where this fits

Section 1 established that analysis is science. Section 2 put that science inside a company that has to discover, develop, and sell a medicine. This section is the third step of the funnel — regs — and the through-line is simple: an analytical result that can’t be defended to a regulator doesn’t ship a product.

The ICH framework

What ICH is — the International Council for Harmonisation of Technical Requirements for Pharmaceuticals for Human Use; who its members and observers are; why harmonisation exists (one dataset, multiple markets).

The Quality (“Q”) guidelines that touch analysis directly get a full page each — listed below and in the left menu:

• Q1 · Stability — stability testing; defines which methods must be stability-indicating.
• Q2 · Validation — validation of analytical procedures (Q2(R2)).
• Q3 · Impurities — organic (Q3A/B), residual solvents (Q3C), elemental (Q3D).
• Q4 · Pharmacopoeias — pharmacopoeial harmonisation; Q4B evaluation of shared general chapters.
• Q5 · Biotech Products — viral safety (Q5A), expression construct (Q5B), stability of proteins (Q5C), cell substrates (Q5D), comparability (Q5E).
• Q6 · Specifications — acceptance criteria for small and large molecules (Q6A/B).
• Q7 · GMP for APIs — the QC lab’s obligations.
• Q8–Q12 · Lifecycle — QbD, risk management, quality system, lifecycle management.
• Q13 · Continuous Manufacturing and Q14 · Analytical QbD — the modernization pair.

Compendial (pharmacopeial) methods

• The three major pharmacopeias — USP–NF, Ph. Eur., JP — and how the Pharmacopoeial Discussion Group harmonises chapters across them.
• General chapters vs. monographs: a monograph is the spec for a specific article; general chapters are shared methods and policies.
• In USP, numbering signals enforceability: chapters below <1000> are requirements, <1000>-and-above are informational.
• When you must run the compendial method, and when a validated alternative is allowed (equivalence, and verification under USP <1226>).

How regulation shapes analytical development from day one

• Specifications are bounded by ICH limits (Q3A/Q6A) before a method is even developed.
• Under Q14 / analytical QbD, the method is designed against its validation targets (Q2(R2)) from the start — an analytical target profile, not a method you validate after the fact.
• The stability program (Q1A–F) dictates which methods must exist and what they must resolve.
• Data integrity — ALCOA+, audit trails, system suitability as a real-time control — is part of the method, not paperwork around it.

Why you care

Every choice you defended on scientific grounds in Sections 1–2 now has to survive a second audience: an inspector reading your data cold, years later, deciding whether patients can trust it.

1.3.1 - ICH Q1 — Stability Testing

The one idea

A shelf life is a hypothesis: this product, in this package, stored this way, still meets its specification for N months. Stability testing is the experiment that tests that hypothesis over real time. ICH Q1 is the agreed protocol for running that experiment so that the result means the same thing to every regulator.

This is Lecture 1’s definition of science made concrete — you state a claim, you expose it to testing, and you are obligated to revise the shelf life (or the storage statement, or the formulation) when the data say so.

Purpose

The purpose of stability testing is to provide evidence on how the quality of a drug substance or drug product varies with time under the influence of a variety of environmental factors — temperature, humidity, and light.

From that evidence, and the scientific understanding of the molecule and the product, the study establishes three things:

• a re-test period (drug substance) or a shelf life / expiration date (drug product);
• the storage statement that goes on the label (“Store below 25 °C”, “Do not refrigerate”, and so on);
• the degradation pathways — what breaks down, into what, and how fast.

Q1A defines the core stability package expected for a new drug substance and product. It is a floor, not a straitjacket: alternative approaches are acceptable when they are scientifically justified.

The challenge: a moving target

Here is what makes stability hard in practice. The process by which the drug substance and drug product are made changes as development proceeds — the synthetic route is improved, the scale goes up, the site moves, the formulation is adjusted. Every one of those changes can shift the impurity and degradation profile, which means the “scientific understanding” you were leaning on has to be re-evaluated.

When everything around the molecule is changing, standardize your stability approach.

Fixed conditions, fixed pull points, fixed stability-indicating methods, fixed reporting — the discipline of a systematic program is exactly what lets you compare a batch made this quarter against one made two years ago and actually learn something from the difference.

The Q1 family

ICH Q1 is not one document. It is a set:

Stress testing and forced degradation

Stress testing is the process of subjecting the drug substance and/or drug product to elevated storage conditions that expedite chemical and physical transformations. The molecule is deliberately degraded with heat, high humidity (75 % RH or greater), acid and base hydrolysis across a pH range, oxidation, and photolysis.

It shows up in two related but distinct activities:

The R&D screening logic is simple: no reaction at the higher temperature → the lower temperatures are very likely fine. Reaction at the higher temperature → confirm it at the formal, “traditional” study conditions before it means anything for the label.

Advantage. Stress testing provides insight into — and a forecast of — the likely degradation products. That helps establish the degradation pathways, the intrinsic stability of the molecule, and, critically, it validates the stability-indicating power of the analytical procedures. The nature of the stress testing depends on the individual drug substance and the type of drug product involved.

Disadvantage. Some chemical and physical transformations observed at higher temperatures do not occur at normal storage conditions, because the activation energies of the processes differ. A degradant that only appears at 80 °C may be a lab artifact, not a shelf-life risk.

For the analyst, the point is not the formal shelf life. The point is to:

1. Identify the likely degradation products so the method is designed to see them.
2. Demonstrate the analytical procedure is stability-indicating — it resolves the API from its degradants and can quantify them (ICH Q2 validation depends on this).
3. Check mass balance — does the loss of assay account for the rise in degradation products? A gap means a degradant you are not detecting.

If you take one thing from Q1 into the lab: forced degradation is how you prove your method can be trusted to watch a product age.

The degradation chemistry

Every extra peak on a stability chromatogram is the product of a chemical reaction. Knowing which reactions a given molecule is prone to tells you what to look for, which conditions accelerate it, and how to build a method that will actually see it. The common routes:

Rearrangement. An intramolecular reaction that reorganises the bonding without adding or removing atoms, so the degradant is an isomer of the parent. Because the mass is often unchanged, LC–MS alone will not resolve it from the parent — you need retention, UV spectrum, and sometimes NMR. Acyl glucuronides are a clean example: the acyl group migrates around the sugar ring (1-O → 2-, 3-, 4-O), and the rearranged isomers are the ones that bind covalently to protein.

Decarboxylation. Loss of the carboxyl group as carbon dioxide. It is fast when the carbanion or enol left behind is stabilised — β-keto acids, or aromatic acids with an activating group ortho or para. p-Aminosalicylic acid is the textbook drug example: it decarboxylates to m-aminophenol on mild heating or in solution, which is why PAS discolours on storage.

Dimerization. Two API molecules combine into one covalent species; polymerization is the same reaction run many times. It needs a reactive handle — a β-lactam carbonyl, an aldehyde, an activated alkene, a free thiol. In the aminopenicillins the side-chain amine of one molecule opens the β-lactam of another; the resulting dimers and higher polymers are implicated in penicillin allergy, so they are controlled tightly.

Solution phase vs. solid state. The same molecule degrades differently in the two. In solution it is fully solvated and surrounded by water, so hydrolysis and dissolved-oxygen oxidation dominate and the kinetics are usually clean Arrhenius. In the solid state the molecules are locked in a lattice; reaction happens at surfaces, crystal defects, and amorphous or disordered regions, and is often governed by water sorbed onto the surface rather than bulk water — so rates can be non-Arrhenius and show a moisture threshold. This is why solid-state and solution stress testing are designed and reported separately.

Apparent degradation (recovery). Sometimes the assay comes back low and nothing has actually degraded — the drug has adsorbed onto glass, tubing, or a filter (common for peptides and low-dose products), extraction from the matrix was incomplete, or the reference standard itself has drifted. The check is mass balance again: real degradation shows a matching rise in degradation products; a recovery problem shows a loss with no new peaks. Rule out recovery before you call something degradation.

The degradant-profiling workflow

Forced degradation is not a one-off experiment. It is the first active step in a repeatable, iterative degradant-profiling workflow that runs from what might break all the way to documented structures and mechanisms. One widely cited version (Alsante et al., Adv. Drug Deliv. Rev. 59(1), 2007, 29–37) has eight steps:

Steps 2–3 are covered above. Steps 4–5 are stability-indicating method development. Steps 6–8 are degradant identification and knowledge capture. And the loop is iterative — a new degradant seen at a later time point, or after a process change, sends you back to step 2 (see The challenge: a moving target).

(Instructor: confirm the citation detail before lecture.)

One program: forced, accelerated, and long-term together

The formal ICH study (the next section) answers the regulator, but on its own it is slow — it is months before it tells the development team whether they are in trouble, and it does not generate degraded material early enough to build methods against. In practice the formal study is run as part of one coordinated program that also spans forced and extra accelerated conditions on a common schedule.

The lever is temperature. As a rule of thumb, a reaction’s rate roughly doubles for every 10 °C (an Arrhenius approximation, Q10 ≈ 2). A marketed formulation is expected to carry about a two-year shelf life, and you cannot wait two years for that answer during development, so higher stressing temperatures stand in for elapsed time. On the doubling rule, ≈ 80 °C for two weeks ≈ two years at room temperature (take room temperature as ≈ 25 °C, the ICH long-term condition):

Each additional 10 °C halves the time.

A single fast data point is fragile, though, so you set up a gradient of conditions — hot enough for an early read and for method-development samples, mild enough to be relevant, all pulled on one schedule:

One program then gives you two things from the same set of samples: an early read within weeks (are we in trouble?) and the long-term read that supports the filing. The caveat is the disadvantage noted under Stress testing and forced degradation — the forced levels are a screen and a forecast, not the registration answer. Anything they flag is confirmed at ICH conditions before it drives a shelf-life or storage decision.

The formal study design

Batches. At least three primary batches, same synthetic route / manufacturing process, at least pilot scale, in the container closure system proposed for marketing.

Storage conditions (general case):

If 30 °C / 65 % RH is chosen as the long-term condition, there is no separate intermediate condition.

Products in semi-permeable containers (e.g. LDPE bags, plastic ampoules) are also tested for water loss at low humidity (40 °C / not more than 25 % RH).

Testing frequency. Long-term: 0, 3, 6, 9, 12, 18, 24 months, then annually through the proposed shelf life. Accelerated: 0, 3, 6 (minimum three points). Intermediate: 0, 6, 9, 12 (minimum four points). A worked schedule for a three-year study, where X is a scheduled pull and (X) is performed only if the accelerated condition shows a significant change:

“Significant change”

At the accelerated condition, significant change triggers intermediate testing, and the shelf life is then based on long-term data. For a drug product, significant change is any of:

• a 5 % change in assay from the initial value (or failure to meet the potency criterion for a biological/immunological method);
• any degradation product exceeding its acceptance criterion;
• failure to meet acceptance criteria for appearance, physical attributes, or functionality (some physical changes are expected under accelerated stress — e.g. softening of a suppository — and are judged in context);
• failure to meet the pH criterion;
• failure of dissolution for 12 units.

For a drug substance, significant change is simply failure to meet specification.

Climatic zones and why Q1F was withdrawn

ICH covers Zones I and II. Q1F was withdrawn in 2006 because the ICH regions do not include Zone III/IV countries; WHO and national authorities now set those requirements (WHO recommends 30 °C / 75 % RH long-term for Zone IVb).

Q1B — photostability (in brief)

Test sequence: fully exposed product → immediate pack → marketing pack, stopping once you have enough information. Minimum exposure: 1.2 million lux·hours (visible) and 200 W·h/m² (near-UV). Two lighting options — a D65/ID65 daylight standard (Option 1) or cool-white fluorescent plus a near-UV lamp (Option 2). Light dose is confirmed with a validated actinometer (e.g. quinine).

Q1D — bracketing and matrixing (reduced designs)

• Bracketing — test only the extremes of a design factor (strength, container size, fill) at every time point, on the assumption that the extremes bound the intermediates.
• Matrixing — test a subset of samples at each time point, a different subset at the next, so the full matrix is covered across the study but not at every pull.
• The trade-off — less data means less power to extrapolate. If the data turn out variable, a reduced design may not support the shelf life you wanted, and there is no going back in time.

Q1E — evaluating the data

• If accelerated data show significant change, base the shelf life on long-term (and intermediate) data.
• Extrapolation — with long-term and accelerated data showing little change and little variability, you may propose a shelf life up to 2× the long-term data period, but not more than 12 months beyond it.
• Statistics — regression analysis of each attribute against time; test whether batches can be pooled using analysis of covariance at a 0.25 significance level; the shelf life is the earliest time the 95 % one-sided confidence limit for the mean crosses an acceptance criterion.

Modernization — the revised Q1

ICH is consolidating Q1A–Q1F and Q5C (the biologics stability guideline) into a single modernized Q1 — one unified lifecycle framework (the Step 2b draft runs to roughly 108 pages) that pulls stability testing away from a prescriptive checklist and toward a science- and risk-based strategy, aligned with quality by design and with post-approval lifecycle management (Q12).

The concept paper was endorsed in 2022; the Step 2b draft was released in April 2025, and its public consultation closed late in 2025. Step 4 adoption is anticipated in the late-2026 to 2027 window — so it is not in force yet, but protocols written now will be reviewed under it.

Three shifts matter for how you would design a study:

• One scope, many modalities. Rather than guessing which parts of the old series apply to a given product, the new guideline is a common baseline with product-class annexes — synthetic small molecules (including oligonucleotides and peptides), biologics and vaccines (subsuming Q5C), advanced therapy medicinal products (cell and gene therapies), and drug–device combination products.
• Predictive modeling gets a regulatory home. A dedicated annex formalizes mathematical and statistical stability modeling — accelerated-assessment approaches such as ASAP that were previously accepted only case by case. Modeled data can be used to justify shelf-life extrapolation and, in some early filings, to stand in for part of the traditional long-term study.
• Reduced designs must be earned. Bracketing and matrixing (Q1D) move from protocol templates to a defended position: prior knowledge and platform data, a risk assessment tied to the product and its container closure system, and analytics that show statistically that the reduced matrix will not compromise trend detection.

Because stability studies are multi-year commitments, CMC teams writing protocols today are already auditing their SOPs so they don’t lock legacy assumptions into submissions that will be assessed against the new framework.

(Status as of early 2026 — Step 4 not yet adopted; confirm before lecture.)

Where the analyst sits

Every number in a stability report came from a method an analyst developed, validated as stability-indicating, and ran at each time point — sometimes for years. The judgment calls are analytical: is that a real new peak or a column artifact? Does mass balance close? Is the trend real or within method variability? Q1 is the framework; the analyst is the instrument that makes it mean something.

For discussion

• Why is forced degradation done on the drug substance before the formal study, not after?
• Forced degradation at 80 °C produces a degradant you never see at 40 °C or 25 °C. Does it belong on the specification? What decides?
• A molecule has an ester, a secondary amine, and a stereocentre α to a carbonyl. Which degradation reactions would you screen for first, and which stress condition targets each?
• Your method screening (step 4 of the degradant-profiling workflow) can’t resolve two degradants that co-elute. Which later steps are now unreliable, and what do you change?
• A product passes accelerated but a new degradant appears at 9 months long-term. What happens to the shelf life, and what does the analyst have to do first?
• When would you not use a matrixing design, even though it would save the lab months of work?
• The manufacturing process changed at month 12 of a stability study. What does a systematic stability program let you do that an ad-hoc one would not?

1.3.2 - ICH Q2 — Validation of Analytical Procedures

The one idea

An analytical result is a claim: the assay is 98.7 %, this impurity is at 0.12 %, the API is identified. Validation is the body of evidence that the measurement behind the claim is fit for its intended purpose — accurate enough, specific enough, precise enough, over the range where it is actually used — so that a release or stability decision can rest on it.

This pairs directly with the previous section:

Q1 asks: does the product remain within its specification over time?

Q2 asks: can we trust the analytical evidence used to answer that question?

Without Q2, the conclusions from a stability study are only as good as an unexamined instrument reading. Q2(R2) (Step 4, November 2023; a minor error-correction document followed in 2025) is the current framework, and it was developed alongside Q14 — validation is now explicitly the point in an analytical procedure’s lifecycle where performance is confirmed, not a standalone hurdle.

Validation is not “checking the method”

The naïve mental model is a straight line:

develop method → validate method → use method

Q2(R2), read together with Q14, replaces it with a loop:

analytical target profile → develop → understand → optimize → validate → deploy → monitor → maintain / improve

Q14 is how you develop a procedure with scientific understanding and risk-based thinking. Q2 is the question:

Can we demonstrate that the resulting procedure performs adequately for the purpose we intend to use it for?

Validation is therefore not the moment science stops. It is a structured demonstration of what is already understood about the measurement system — and relevant data generated during development can contribute to the validation package rather than being repeated.

The challenge: a moving target

The same difficulty that shadows Q1 applies to the method. The synthetic route, the scale, the manufacturing site, and the formulation all change as a function of development time, and each change can shift the impurity and degradation profile the method was built to see. A method validated against last year’s material may need re-validation — to a degree that scales with the size of the change.

When everything around the molecule is changing, standardize your analytical approach.

Two defences hold the program together:

• A systematic approach — fixed conditions, fixed system suitability, fixed acceptance criteria, fixed reporting — so a result from this quarter is comparable with one from two years ago, and a change in the data means something.
• A multivariate / orthogonal approach — more than one procedure interrogating the same attribute by different physical principles (reversed-phase vs. HILIC, UV vs. MS, chromatography vs. spectroscopy). Q2 notes explicitly that a lack of specificity in one analytical procedure can be compensated by other supporting procedure(s).

The analytical procedure is a measurement system

The concept to fix for graduate students: a method is not HPLC + column + mobile phase + detector. It is a measurement system, and every element of it can move the reported number:

Validating a method means characterizing how this whole system behaves when used for its intended purpose.

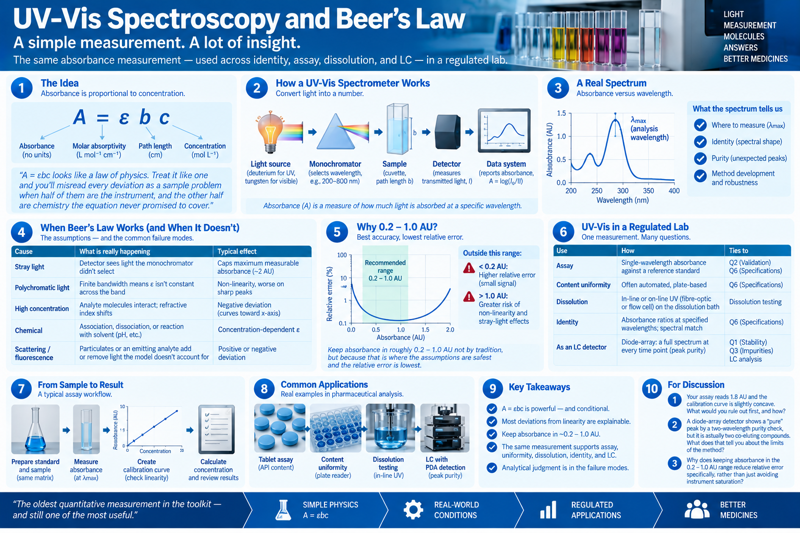

How the measurement works — light and matter

Almost every analytical procedure in this course comes down to the interaction of electromagnetic radiation with chemical species to produce a unit of measure. Different regions of the spectrum carry different amounts of energy and therefore probe different things — molecular rotations and vibrations in the infrared, valence electrons in the UV–visible, nuclear spin states in NMR, core electrons and nuclei at X-ray and γ-ray energies. Choosing a technique is choosing which energy levels you interrogate.

Two broad modes of measurement:

• Direct measurement — light in, signal out, with little or no sample preparation: near-infrared (NIR), infrared (IR), UV, visible, Raman. The result often comes from a model over a whole spectrum rather than a single wavelength — which is exactly what Q2(R2)’s multivariate section addresses.
• Separation first — resolve the mixture, then measure what comes off: thin-layer chromatography (TLC), HPLC/UHPLC, capillary electrophoresis (CE), gas chromatography, usually with a spectroscopic or mass-spectrometric detector at the end.

The validation characteristics are the same either way. What differs is where the variability enters the measurement system — and that is what shapes the validation design.

What are we trying to prove?

The fundamental question is: is the method fit for purpose? — and different purposes demand different demonstrations. An identity test has a different job from an assay; an assay has a different job from an impurity method; an impurity method at a 0.05 % reporting threshold has a different challenge from a dissolution test.

There is no universal validation package that every method must satisfy in the same way.

Q2(R2) sets the expected characteristics but explicitly permits scientifically justified alternative approaches, and it ties the validation strategy to the intended purpose and to what is already known about the procedure. It applies particularly to procedures used for release and stability testing; its scientific principles apply phase-appropriately during development and to other procedures in a control strategy.

Types of analytical procedure to be validated

Q2 organizes everything around four procedure types, because the validation you owe depends on the job the procedure does:

• Identification tests ensure the identity of an analyte — the sample property is matched to that of a reference standard.
• Impurity testing — quantitative or limit — must accurately reflect the purity characteristics of the sample. A quantitative test and a limit test require different validation characteristics: the quantitative test has to be accurate and precise at low levels; the limit test only has to detect reliably at the limit.
• Assay procedures measure the analyte present in a sample. For the drug substance the assay quantifies the major component; for the drug product the same characteristics apply when assaying the active or another selected component, and also to assays associated with procedures such as dissolution.

The performance characteristics — the analytical figures of merit

These are the vocabulary of Q2 — the analytical figures of merit. Defining each one for a given method describes the design space in which the method can effectively operate and measure the quality of the process. Each is a different way of interrogating the measurement system — not a checklist to complete mechanically. Know these cold; they are the concept most likely to be tested.

Q2(R2) reorganizes some of this. Linearity is folded into response; the working range is discussed in terms of a reportable range tied to the intended use rather than a generic instrument property; selectivity/specificity are treated together; and the guideline adds explicit coverage of multivariate procedures and of stability of solutions and samples as part of the package.

The classic Q2 list — the one to memorize — is:

1. Accuracy
2. Precision — repeatability and intermediate precision (and, between laboratories, reproducibility)
3. Specificity
4. Detection limit
5. Quantitation limit
6. Linearity
7. Range

The figures of merit — formal definitions

These are the definitions to be able to state precisely:

The three implications of specificity, by test type:

• Identification — establish that the procedure identifies the analyte and does not respond to related structures.
• Purity tests — establish that the procedures allow an accurate statement of the content of impurities (related substances, heavy metals, residual solvents, etc.).
• Assay (content / potency) — establish that the procedure gives a result that allows an accurate statement of the content or potency of the analyte in the sample.

Which characteristics for which test type

The historical Q2 table — still the working mental model — maps characteristics to purpose. + = normally required, – = normally not.

Read it as logic, not as a grid to memorize: an identity test only has to be specific; a limit test for an impurity has to detect reliably at the limit but need not quantify; a quantitative impurity method has to do nearly everything an assay does, plus work down at the reporting threshold.

Specificity — “are we measuring the right thing?”

An API peak can look clean, integrate cleanly, and report 99.2 % while a degradation product co-elutes underneath it. The instrument still produces a number; the number may be wrong.

Specificity/selectivity is the evidence that the procedure distinguishes the analyte from everything relevant that could interfere:

• impurities and degradation products
• excipients and process-related materials
• matrix components
• other analytes measured by the same method

This is the hinge back to Q1: Q1 tells us the product may degrade; specificity is what lets the analytical procedure see that degradation correctly. Peak purity by diode-array and LC–MS, resolution from forced-degradation products, and mass balance are the usual evidence.

Accuracy — “are we getting the right answer?”

Accuracy is closeness of the measured result to an accepted reference or true value. Depending on the procedure it is shown with:

• certified reference materials
• spiking / recovery studies (add a known amount of analyte or impurity to the matrix, measure what comes back)
• comparison against an orthogonal procedure
• for an assay, from precision + specificity + response taken together

Spike 0.50 % of an impurity into the product matrix and recover 0.50 % consistently, and you have evidence the method is accurate in that region. But accuracy alone is not enough — a method can be accurate on average while being wildly variable.

Precision — “would I get the same answer again?”

Precision is the variability of repeated measurements, assessed at nested levels:

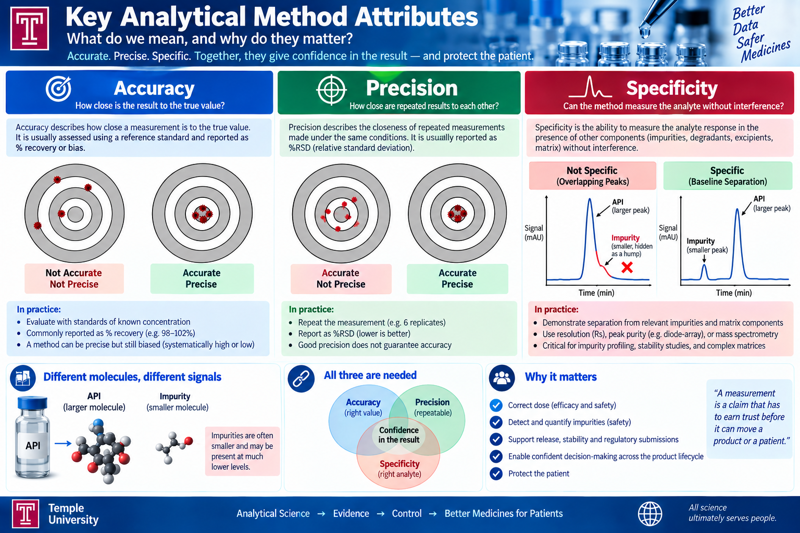

The target picture makes the accuracy/precision distinction concrete — they are independent axes:

• Not accurate, not precise — shots scattered all over: neither the right answer nor a consistent one.
• Accurate, not precise — shots average on the bullseye but scatter widely: right on average, but any single result could be well off.
• Not accurate, precise — a tight cluster, but off-centre: consistently the wrong answer — the dangerous case, because the low scatter looks reassuring.
• Accurate and precise — a tight cluster on the bullseye. This is the goal.

Accuracy is closeness to the right answer; precision is consistency. You need both, and Q2 asks for them separately.

Range — “where does this method actually work?”

A method is not equally reliable at every concentration. An impurity method intended for 0.05 % → 1.0 % may behave beautifully at 0.5 % and still not be demonstrated at 0.05 %. Validation has to cover the reportable range relevant to the intended use — for an assay typically 80–120 % of nominal, wider for content uniformity, down to the reporting threshold for impurities.

Q2(R2) makes reportable range an explicit concept: the interval over which the procedure has been shown to provide results of acceptable accuracy and precision for the decision it supports, not a generic property of the instrument.

Detection limit vs. quantitation limit

Students routinely conflate these:

Seeing a small peak at 0.01 % does not license reporting Impurity = 0.010 %. The ability to see something and the ability to measure it are different scientific claims, and the QL — not the DL — has to sit at or below the reporting threshold for a quantitative impurity method.

Robustness — “what happens when reality isn’t perfect?”

Real laboratories are not perfectly controlled: mobile-phase preparation varies, column temperature drifts, pH moves, flow rate is never mathematically exact, different analysts prepare samples, different instrument units behave differently. Robustness asks whether the method stays fit for purpose under small, deliberate, reasonable variations in those factors.

This is the connection to Q14 and the enhanced approach:

Robustness is not something you discover accidentally during validation. It is something you should establish during development — ideally by design of experiments — so the method arrives at validation with a known operable region.

A fragile method can pass validation under ideal conditions and then be a nightmare in routine QC.

Precision is not the same as reproducibility

Worth a few minutes with graduate students. Lab A runs the method and gets 99.1, 99.2, 99.1, 99.2 %. Lab B gets 98.9, 99.4, 99.0, 99.3 %. Now transfer the method to five manufacturing sites: if every site produces a slightly different answer, you have a method deployment problem, not necessarily a product problem.

The goal is not “the method worked in the development laboratory.” The goal is “the measurement system stays fit for purpose wherever it is legitimately used” — which is why method transfer and lifecycle management (see Quality Control) matter as much as the original validation.

Stability-indicating methods

This is the deepest link to the Q1 lecture. A stability-indicating procedure must be able to detect and quantify the relevant changes in the product over time. The workflow:

stress the product → generate degradation products → develop the analytical separation → demonstrate specificity against those degradants → evaluate assay + degradants → check mass balance → validate the procedure → deploy it in the stability program

So Q1 and Q2 interlock:

• Q1 — the product changes.
• Q2 — the measurement system can detect and quantify the change.

Q2(R2) specifically addresses demonstration of stability-indicating properties as part of specificity/selectivity.

Validation samples are experiments

A teaching point: don’t say “now we do validation.” Say “now we design experiments that let us make defensible claims about the performance of the measurement system.” For example —

That is the hypothesis → experiment → data → interpretation → conclusion → revision loop from Section 1, applied to the measurement instead of the molecule.

Statistics are part of analytical science

Q2 is where students should stop seeing statistics as decoration added to a report at the end. Statistics answer: how variable is the method? is an observed difference meaningful? is the response behaving as expected? what range is supported? are results consistent across analysts, days, instruments? how much confidence belongs on the estimate?

Two cautions:

• A statistically significant result is not automatically scientifically important.
• A non-significant result does not prove two things are identical.

The analyst interprets the statistics against the intended analytical purpose — that judgment is the A in STEAM.

Multivariate analytical procedures

Modern analytical science increasingly goes beyond one signal and one concentration — NIR, Raman, chemometrics, multivariate calibration, process analytical technology. Here the result comes from a model, not a single peak, and Q2(R2) adds explicit considerations for these procedures.

The question for students: when the result comes from a model, what exactly are we validating? Not just the instrument, not just the spectrum — the measurement system and the model together, including how the model was trained, how its inputs are controlled, and how it will be maintained as the process and the samples drift.

Platform methods change the equation

If a company already has a well-understood analytical platform and develops another molecule using essentially the same approach, it does not have to start validation from zero. Q2(R2) recognizes that a platform analytical procedure applied to a new purpose can be validated with an abbreviated package when scientifically justified.

The QbD principle underneath: knowledge has value. Accumulated, reliable knowledge about a measurement platform should not be discarded every time a new product enters development.

Validation through the lifecycle

The most important modernization in how Q2 is taught:

A method can drift. Instruments change, column suppliers change, the formulation changes, the process changes, the impurity profile changes, the specification changes, technology improves. Therefore:

The validated state is not a frozen state.

Validation is evidence that the procedure is fit for purpose at a point in its lifecycle. The procedure then needs monitoring and maintenance — continued performance verification — for the rest of its useful life, and Q2(R2) places that explicitly inside the Q14 lifecycle.

The Q2 → Q14 → QC map

Put this on the board instead of “Q2 is the validation guideline”:

Q14 — how do we develop the analytical procedure?

↓

Q2 — how do we demonstrate it performs as intended?

↓

QC — how do we know it keeps performing?

↓

Lifecycle management (Q12) — what do we do when the world changes?

Q14 builds the scientific understanding; Q2 provides the framework for demonstrating performance; the lifecycle maintains the state of control.

The analytical procedure as a control

A QC result is a decision — pass → release, fail → investigate / reject / hold. The analytical procedure is not merely producing information; it participates in the control strategy. If the measurement is wrong, the decision can be wrong: a false pass releases a defective product; a false fail rejects good product. Behind that decision is a patient.

Analytical validation is ultimately about protecting the quality decision.

The hierarchy of confidence

A useful visual — each layer depends on the ones below it:

What Q2 does not mean

Students often take away the wrong impression. Q2 does not mean:

• “Do these nine tests and you’re validated.”
• “Every method needs exactly the same experiments.”
• “A passing validation report proves the method will work forever.”
• “The instrument is qualified, therefore the analytical result is valid.”

Instead: validation is a scientifically justified body of evidence that the analytical procedure is fit for its intended purpose. That distinction is the heart of Q2(R2).

Where the analyst sits

Every number in a development or QC report ultimately rests on a measurement. The analyst is not asking “what number did the instrument produce?” but “what does this number mean, and what evidence lets me trust it?” — which draws on chemistry, instrumentation, statistics, experimental design, risk assessment, judgment, documentation, and scientific integrity at once. That is STEAM in action.

If the Q1 lesson is a shelf life is a hypothesis that must survive testing, the Q2 lesson is a measurement is a claim that must earn our trust — and together they run the sequence the course follows: science → Q1 stability → Q2 validation → Q3 impurities → Q6 specifications → Q8–Q14 quality by design. The thread is not memorizing guidelines; it is answering how do we know? and then how do we know that we know?

For discussion

• An assay reports 99.2 % and the chromatogram looks clean. What specific evidence would convince you a degradation product is not hiding under the main peak?
• An impurity method has a quantitation limit of 0.08 % and a reporting threshold of 0.05 %. Is the method fit for purpose? What are the options?
• You validated a method in the development lab; two manufacturing sites now get results that differ by 1.5 %. Is this a product problem, a method problem, or a transfer problem — and what data tells you which?
• Your company has a platform HPLC assay used on six prior molecules. A regulator asks why the validation package for molecule seven is abbreviated. What is the scientific justification, and where are its limits?
• A NIR method predicts assay from a chemometric model. List everything that is “the measurement system” here, and say what you would monitor over the method’s life.
• Forced degradation (from the Q1 workflow) produces a degradant at 80 °C that never appears at 25 °C. Does your method need to resolve it? Does it belong in the specificity package?
• A validation result is statistically significant but the effect is 0.2 % of nominal. A different result is non-significant with a 3 % spread. Which one worries you, and why?

Source note. ICH Q2(R2) Validation of Analytical Procedures reached Step 4 on 1 November 2023 and is the current guideline; a minor error-correction version was issued in 2025. Its stated objective is to demonstrate that an analytical procedure is fit for its intended purpose, and it is explicitly harmonized with Q14 and the analytical-procedure lifecycle. Primary texts: the ICH Q2(R2) guideline (2023) and the 2025 error-correction version. (Instructor: confirm the current characteristic-by-test-type table against the R2 text before lecture — the guideline reframes linearity/range as response and reportable range.)

1.3.3 - ICH Q3 — Impurities

The one idea

A drug substance is never one molecule and a drug product is never just the active plus inert excipients. Alongside the thing you are selling there is always a population of other molecules — leftovers from the synthesis, things the molecule turned into on the shelf, solvent that never fully dried off, metal from a catalyst or a reactor wall. Every one of them is a question:

Is it there? How much? Is that amount safe?

Q3 is the framework that answers the third question by turning toxicology into a number on a specification. It says, for a given impurity at a given patient exposure, how much you may ship without further comment, how much obliges you to find out what it is, and how much obliges you to prove it is safe.

This pairs with the two sections before it:

Q1 asks: does the product remain within its specification over time?

Q2 asks: can we trust the analytical evidence used to answer that?

Q3 asks: of everything the method sees that is not the drug, how much is acceptable — and on what basis?

What counts as an impurity

An impurity is any component of the drug substance or drug product that is not the drug substance (or, in the product, an excipient). Q3 sorts them three ways:

Two cross-cutting distinctions matter more than the list:

• Process-related vs. drug-related. A process impurity rides in from the synthesis and is (in principle) removed by better process control and purification — it is a Q11 problem, fixed upstream. A degradation product forms from the drug itself and grows over shelf life — it is a Q1 problem, and no amount of upstream purification removes it.
• Specified vs. unspecified. A specified impurity has its own line and its own acceptance criterion on the specification (named, or identified by relative retention). Everything else is caught by two catch-all limits — “any unspecified impurity ≤ identification threshold” and “total impurities ≤ …”. This is the machinery Q6 assembles into the release contract.

The Q3 family

Q3 is not one document — it is a set, split by the kind of impurity:

The mental model: Q3A/Q3B set the general rules for “ordinary” impurities; Q3C, Q3D and M7 carve out three categories that need their own toxicology because a percentage-of-the-API limit is the wrong tool for them.

The challenge: a moving target

The same difficulty that shadows Q1 and Q2 applies here. The impurity profile is a function of the process, and the process changes throughout development — a new route, a new supplier of a starting material, a scale-up, a site change, a different final crystallisation. Each change can add an impurity, remove one, or shift a ratio. An impurity that was below the reporting threshold in the tox batches can appear at 0.2 % in the first commercial-scale lot.

When everything around the molecule is changing, standardise how you track what is not the molecule.

The defence is the same discipline Q1 and Q2 demand: a fixed, validated, specific method that resolves the known impurities, a fixed reporting convention, and a documented impurity fate map so that when a new peak appears you can say whether it is new chemistry or a known impurity that moved.

The core concept: three thresholds

This is the idea to fix for graduate students. For any impurity, its measured level falls into one of four bands, and the band — not a single universal limit — dictates what you owe:

Two features make this elegant rather than arbitrary:

1. The thresholds scale with exposure. They are expressed as a percentage of the drug substance or as an absolute daily intake (µg or mg per day), whichever is lower. A 5 mg tablet and a 1 g tablet do not get the same percentage limit, because the patient’s actual dose of the impurity is what matters.
2. The ladder is cumulative. Anything you must qualify, you must first have identified and reported. Each rung is a stricter scientific claim: I saw it → I know what it is → I know it is safe.

Q3A — impurities in the new drug substance

Q3A(R2) applies to the drug substance made by chemical synthesis (not biologics — that is Q6B). It asks the applicant to:

• Summarise the actual and potential impurities most likely to arise from the synthesis, purification, and storage, with a rationale for each based on the chemistry;
• List the impurities found in development and toxicology batches, with the analytical procedures used;
• Classify each as an identified/unidentified organic impurity, a residual solvent, or an inorganic impurity;
• Set acceptance criteria for individual specified impurities, any unspecified impurity, and total impurities.

The threshold table (drug substance):

Read the “>2 g/day” row as the safety net: at very high doses even a small percentage is a large absolute intake, so the thresholds tighten.

Q3B — degradation products in the new drug product

Q3B(R2) is deliberately narrower than Q3A. In the finished product it covers only:

• degradation products of the drug substance formed during manufacture or storage of the product, and
• reaction products of the drug substance with an excipient or with the container closure system.

It explicitly does not cover: impurities carried in from the drug substance process, impurities in the excipients themselves, extractables/leachables (a separate discipline), or polymorphic and enantiomeric changes. The logic: the product-stability method should be watching for new chemistry that happens after the drug substance is released — which is exactly the stability-indicating capability that Q1 forced degradation and Q2 specificity exist to demonstrate.

The threshold tables (drug product) are more granular than Q3A because product doses span a wider range. “TDI” is the total daily intake of the degradation product, and “whichever is lower” always applies.

Reporting threshold:

Identification threshold:

Qualification threshold:

Qualification — turning a number into a safety judgment

Qualification is the process of acquiring and evaluating data that establishes the biological safety of an individual impurity or a given impurity profile at the level(s) specified. It is not automatically a new toxicology study. The Q3A/Q3B decision tree offers, roughly in order of preference:

1. Is the level already covered? If the impurity is also a significant metabolite of the drug, or is present at a comparable level in a batch already tested in humans or animals, it is considered qualified.
2. Is it below the qualification threshold? Then no action is needed unless it carries a structural alert for unusual toxicity or genotoxicity (→ M7).
3. If above the threshold and not otherwise qualified: reduce it (better process or formulation), or generate data — typically a genotoxicity screen (bacterial mutagenicity + one chromosomal-damage assay) and a general toxicity study (usually ≥ 14 days, in a relevant species) at a dose that gives the required exposure margin.

The teaching point: qualification is a risk-based off-ramp, not a mandatory battery. Most impurities are qualified by argument and existing data; only the genuinely novel, genuinely abundant ones drive new studies.

Identification — what “identify” actually demands

To “identify” an impurity is to establish its structure — not merely to give it a relative retention time and a code. This is step 7 of the degradant-profiling workflow from the Q1 lecture, and it uses the same tools:

An unidentified impurity above the identification threshold is a finding the application has to explain: what was tried, why the structure could not be assigned, and why the safety argument still holds.

Q3C — residual solvents

Solvents are treated separately because their toxicity is known and dose-based, not a function of “percent of API”. Q3C(R9) sorts solvents into four classes:

PDE (permitted daily exposure) is the anchor. It is derived from a no-effect level in the most relevant animal study, scaled to a 50 kg adult and divided by a stack of five safety factors (interspecies extrapolation, individual variability, short-study correction, severe-toxicity correction, and a NOEL-vs-LOEL adjustment):

PDE = (NOEL × 50 kg) / (F₁ × F₂ × F₃ × F₄ × F₅)

For Class 2 solvents there are two ways to set a limit:

• Option 1 — a fixed concentration limit (ppm), computed assuming a maximum product intake of 10 g/day. Simple; conservative for low-dose products.
• Option 2 — back-calculate an allowed concentration from the actual maximum daily dose of the product, so the daily amount of solvent meets the PDE. More generous when the real dose is well under 10 g.

R9 (minor revision, January 2024) added consideration of solvent volatility when choosing and validating the analytical method (headspace GC behaviour differs sharply between, say, methanol and DMSO), and refreshed the Annex decision trees.

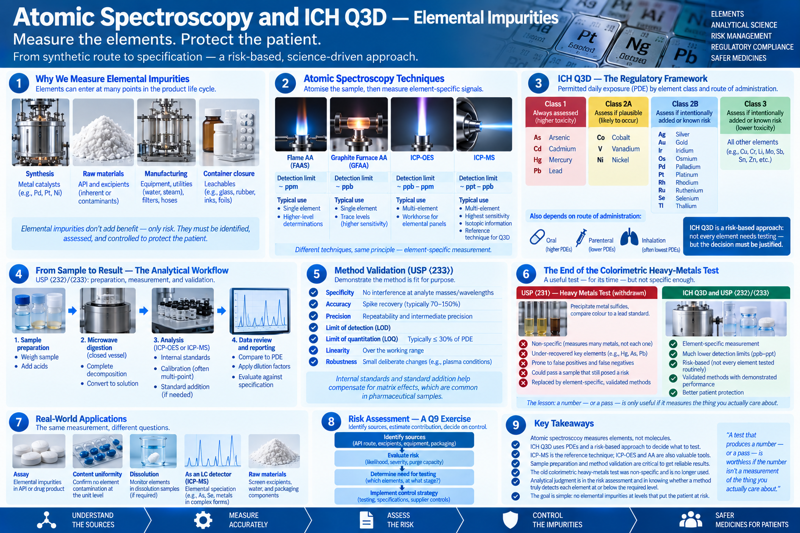

Q3D — elemental impurities

Q3D(R2) replaced the century-old USP <231> heavy-metals test — a non-specific colorimetric sulfide-precipitation assay with poor and element-dependent recovery — with a risk-based, element-specific framework, implemented analytically by USP <232> (limits) and <233> (ICP-OES / ICP-MS procedures).

24 elements, four classes:

PDEs are set per route of administration — oral, parenteral, inhalation, and (added in R2) cutaneous and transcutaneous — because absorption differs by orders of magnitude. The control threshold is 30 % of the PDE: if an element is consistently below that across representative batches, no additional controls are needed.

The heart of Q3D is the risk assessment, not a test:

1. Identify known and potential sources — drug substance, each excipient, water, reagents, manufacturing equipment (reactor alloys, catalysts), container closure system.
2. Evaluate the likely contribution of each source against the PDE, using data, prior knowledge, and worst-case additivity.
3. Summarise and document the conclusion and any controls; test routinely only where the assessment cannot rule out a problem.

R2 (2022) revised the PDEs for gold, silver and nickel and added the cutaneous/transcutaneous routes.

Options for turning a PDE into a per-component concentration limit mirror Q3C: Option 1 (a common limit assuming 10 g/day intake), Option 2a (common limit at the actual daily dose), Option 2b (component-specific limits summing to the PDE), Option 3 (measure the finished product).

M7 — the mutagenic-impurity overlay

Some impurities are dangerous at levels far below any Q3A/Q3B threshold because they are DNA-reactive — a single molecule can cause a mutation. A “0.10 %” identification threshold is meaningless for a compound whose safe intake is measured in micrograms per day. M7(R2) handles these.

• Acceptable intake: the threshold of toxicological concern (TTC) of 1.5 µg/day, corresponding to a theoretical excess lifetime cancer risk of 1 in 100 000.
• Hazard assessment: database and literature search, then two complementary (Q)SAR methodologies — one expert rule-based, one statistical. Concordance (or an expert overruling) drives the call.
• Five structural classes:

• Cohort of concern — N-nitroso compounds, aflatoxin-like compounds, alkyl-azoxy compounds — are so potent that the generic TTC does not protect; they need compound-specific limits derived from their own carcinogenicity data.
• Less-than-lifetime (LTL) limits — shorter exposures get proportionally higher daily limits (e.g. ≤ 1 month → 120 µg/day; > 1–12 months → 20 µg/day; > 1–10 years → 10 µg/day), useful in clinical development.
• M7(R3), in progress — folds in an N-nitrosamine addendum built on the Carcinogenic Potency Categorisation Approach (CPCA), which scores a nitrosamine’s structural features to place it in a potency category and assign an acceptable intake. This is the ICH response to the 2018-onward nitrosamine recalls (valsartan/NDMA, ranitidine/NDMA).

How the pieces fit — the impurity control strategy

Q3 is not read in isolation; it is one layer of a control strategy that runs the length of the course:

Q11 — choose starting materials and design the route so that process impurities are formed late enough, or purged efficiently enough, to be controlled

↓

Q3A / Q3C / Q3D — characterise and limit the process impurities, residual solvents, and elemental impurities that remain in the drug substance

↓

Q1 — forced degradation and stability studies reveal which impurities grow over shelf life

↓

Q3B — limit the degradation products in the finished product; M7 overlays a stricter limit on any impurity or degradant that is DNA-reactive

↓

Q6 — assemble the acceptance criteria into the release specification: specified impurities, unspecified-impurity limit, total impurities

↓

Q2 — validate the method that has to see every one of these at its limit, batch after batch

What Q3 demands of the analytical method

Every Q3 number is only real if a method can measure it. The chain of consequences for the analyst:

• Sensitivity. The quantitation limit must sit at or below the reporting threshold — you cannot report “0.06 %” from a method whose QL is 0.1 %. This is the direct link to the Q2 detection/quantitation-limit discussion.
• Specificity. Each specified impurity must be resolved from the API and from every other specified impurity; peak purity has to be demonstrated for the main peak and for any impurity used to set a limit.
• Relative response factor (RRF). An impurity quantified against the API peak is only accurate if its detector response per unit mass is known. Either measure the RRF and apply a correction, or demonstrate the response is equivalent (within, say, 0.8–1.2) and quantify directly. An unknown RRF is an unstated systematic error in every impurity result.
• Mass balance. The drop in assay should be accounted for by the rise in degradation products. A gap means an impurity the method is not seeing — a specificity failure hiding as a clean chromatogram.

Where the analyst sits

An impurity result is a small number attached to a large decision. Deciding whether “0.12 %” of a late-eluting peak is a known process impurity or a new degradant; whether the RRF assumption still holds after a formulation change; whether an unidentified 0.11 % peak needs a structure or a better argument; whether a structural alert turns an ordinary impurity into an M7 problem — these are analytical judgments, drawing on synthetic chemistry, spectroscopy, toxicology literacy, statistics, and documentation at once. That is the A in STEAM: the science produces the peak; the analyst decides what it means and what the patient’s exposure to it should be allowed to be.

If the Q1 lesson is a shelf life is a hypothesis that must survive testing, and the Q2 lesson is a measurement is a claim that must earn our trust, the Q3 lesson is: an impurity limit is a safety argument in the form of a number — and the analyst is the person who has to be able to defend it.

For discussion

• A tablet contains 5 mg of API; a capsule of the same drug contains 800 mg. An impurity is present at 0.12 % in both. What does each product owe under Q3B, and why are the answers different?
• Your drug-substance process changes suppliers for a key starting material and a new impurity appears at 0.18 %. Walk through the reporting / identification / qualification decisions. What data would qualify it fastest?
• An impurity is a known human metabolite of the drug, present at 0.4 % in the drug substance (qualification threshold 0.15 %). Is it qualified? What is your argument?
• A degradation product co-elutes with the API and is only revealed by an orthogonal method. Which Q3B obligations were you failing to meet while the method was non-specific, and what has to be re-done?
• Your method quantifies all impurities against the API peak with an assumed RRF of 1.0. One impurity turns out to have an RRF of 0.4. Which reported results were wrong, and in which direction?
• A structural-alert check flags one specified impurity as class 3 under M7. It is currently controlled at 0.10 %. What changes?
• Residual DMF is at 700 ppm; the Class 2 Option 1 limit is 880 ppm but your product’s maximum daily dose is only 200 mg. Is Option 2 worth the paperwork here?
• A regulator asks why your Q3D risk assessment does not include routine testing for palladium, even though a Pd catalyst is used two steps before the final intermediate. What is your answer, and what evidence backs it?

Source note. The Q3 family: Q3A(R2) Impurities in New Drug Substances (Step 4, 25 October 2006); Q3B(R2) Impurities in New Drug Products (Step 4, 2 June 2006); Q3C(R9) Impurities: Guideline for Residual Solvents (Step 4, 24 January 2024 — minor revision adding solvent-volatility considerations); Q3D(R2) Guideline for Elemental Impurities (Step 4, 26 April 2022 — revised PDEs for Au, Ag, Ni; added cutaneous/transcutaneous routes). The mutagenic-impurity overlay: M7(R2) Assessment and Control of DNA Reactive (Mutagenic) Impurities in Pharmaceuticals to Limit Potential Carcinogenic Risk (Step 4, April 2023); the N-nitrosamine addendum (CPCA) is being finalised as M7(R3). Implemented compendially through USP <232>/<233> (elemental impurities) and <467> (residual solvents). (Instructor: confirm the threshold tables and the M7(R3) / Q3C annex status against the current ICH texts before lecture — Q3C and Q3D are under continuous maintenance and PDEs change.)

1.3.4 - ICH Q4 — Pharmacopoeial Harmonisation

(The graphic is a lecture aid, not a citation — its “Q4C / Q4D / Q4E” rows and some panel labels don’t match the current ICH text; the Q4 family is Q4B plus its fourteen annexes, as described below.)

The one idea

Q1, Q2 and Q3 are about methods you develop and defend. Q4 is about the methods you didn’t — the shared, published tests that every pharmacopoeia already prescribes for sterility, dissolution, endotoxins, uniformity of dosage units, residue on ignition, and dozens more. These are the compendial baseline: a company does not re-invent a sterility test, it runs the one in the book.

The problem Q4 addresses is that there is more than one book.

The USP sterility test, the Ph. Eur. sterility test, and the JP sterility test all measure the same thing. If they are written differently, a manufacturer selling in all three regions may have to run the test three times — three protocols, three validations, three sets of records — for no gain in product quality.

Q4 is the framework for making one test count everywhere. Its lesson: harmonisation is a quality tool — it removes duplicated work that adds cost and risk without adding assurance.

What a pharmacopoeia is

A pharmacopoeia is a legally recognised compendium of standards for medicines: what a substance or product must be, and the tests that demonstrate it. In a filing, citing a pharmacopoeial standard means you are held to that text as published, including its future revisions.

Two kinds of text, and the distinction runs through the rest of this page:

In USP, the chapter number signals enforceability: chapters numbered below <1000> are requirements; <1000> and above are informational. Ph. Eur. and JP use their own numbering but draw the same line between mandatory methods and guidance.

Q4 is overwhelmingly about general chapters — the shared methods — because that is where harmonisation is both feasible and valuable. Monographs are article-by-article and largely left to the individual pharmacopoeias.

The three pharmacopoeias and the PDG

The ICH regions are served by three pharmacopoeias:

Since 1989 these three have coordinated through the Pharmacopoeial Discussion Group (PDG) — a body separate from ICH whose job is to write harmonised versions of shared general chapters and excipient monographs. The PDG works a topic through a multi-stage process (identification → investigation → expert-committee draft → public consultation → consensus → regional adoption → ongoing maintenance), and a text is “PDG-harmonised” only when all three pharmacopoeias have adopted substantively the same wording. WHO participates as an observer. A PDG reform, published in 2021, opened a pilot to admit further pharmacopoeias; the Indian Pharmacopoeia Commission joined that pilot from 2022.

PDG harmonises the text. ICH’s role (Q4B) is to tell regulators the harmonised text can be relied on. Those are two different jobs done by two different bodies.

The Q4 family

Q4A — why “one text” stalled

The tidy end-state would be a single harmonised pharmacopoeial text adopted verbatim by every region. In practice that runs into:

• Legal standing. Each pharmacopoeia is embedded in its own region’s law. A pharmacopoeia cannot simply cede authorship of a legally binding standard to an external group.
• Format and general-notices differences. Reagents, reference standards, rounding rules, and the “general notices” that govern how every monograph is read differ between compendia; a chapter that is word-identical can still behave differently inside its parent book.
• Revision cycles. The three pharmacopoeias publish on different schedules, so even a jointly agreed text drifts out of alignment over time unless actively maintained.

So ICH did not produce a Q4A guideline. Instead it accepted that the PDG would keep harmonising texts as far as practical, and built Q4B to get regulatory value out of that work without requiring perfect textual identity.

Q4B — evaluate and recommend

Q4B set up an Expert Working Group with members from the three regulatory authorities and the three pharmacopoeias. Its process, per harmonised general chapter:

1. The PDG declares a general chapter harmonised (Stage 5/6 of its process).
2. The Q4B EWG evaluates that text: are the three pharmacopoeial versions technically equivalent for regulatory purposes? Where do real differences remain?
3. The EWG issues an annex with a formal outcome — typically that the texts are interchangeable, so a manufacturer may use any one of the three and it will be accepted by regulators in all three ICH regions.
4. The annex records region-specific conditions: passages that are not harmonised, additional local requirements, or parts of the chapter the recommendation does not cover.

“Interchangeable” is the payoff: run the Ph. Eur. dissolution chapter, cite it in a US or Japanese submission, and it is accepted — you do not re-run it to USP <711>. But interchangeable is not “identical.” Ph. Eur. marks non-harmonised passages with black diamonds (♦…♦); USP uses a similar convention. The Q4B annex is where you learn which parts of a chapter you can actually rely on across regions and which still carry a regional tail.

The Q4B annexes

Each annex is one general chapter. The fourteen:

The pattern is clear: these are workhorse release and characterisation tests — the ones almost every solid oral, parenteral, or biologic filing has to include. Harmonising them removes duplicated method work from nearly every dossier. Note what is absent: chromatographic assay methods, spectroscopy, and anything close to a specific molecule — those stay in monographs, where harmonisation is far harder and the ICH quality guidelines (Q2, Q3, Q6) do the heavy lifting instead.

The compendial-method obligations for the analyst

Q4 is where “a method in the book” meets “a method in your lab.” Three rules govern that hand-off.

1. Verification, not validation, for a compendial method. A pharmacopoeial method is already validated by the pharmacopoeia. When you adopt one, you do not re-run a full Q2 package — you verify it works in your hands, with your product matrix, on your instruments. USP <1226> Verification of Compendial Procedures frames this: assess the subset of Q2 characteristics that could plausibly fail on transfer — usually specificity against your impurities and excipients, and precision — and document it. Verification is lighter than validation precisely because someone else already did the validation.

2. A validated alternative is allowed — but the compendial method wins ties. You may use an alternative (often faster, or better suited to your matrix) provided you demonstrate equivalence to the compendial method. The catch: in a dispute, the pharmacopoeial method is the referee. If your rapid microbiological method and the <71> sterility test disagree, the compendial result stands. So an alternative method needs a validation package and an equivalence argument, and you still have to be able to run the compendial method.

3. Sometimes the compendial method is mandatory. Where a monograph or a regulation names a specific test as the standard — many endotoxin, sterility, and elemental-impurity requirements — that method is not optional and an alternative needs regulatory agreement, not just internal equivalence data. This is how Q3 reaches the bench: Q3C and Q3D set the limits, and USP <467> (residual solvents) and <232>/<233> (elemental impurities) are the compendial procedures that enforce them.

Harmonisation status — a moving target

The same caution that shadows Q1 and Q3 applies here: the compendial landscape moves.

• The PDG reform (2021) restructured the harmonisation process and opened membership; the outcome of the expansion pilot is still settling.
• ICH has signalled that the Q4B mechanism will not be extended to new general chapters — the reformed PDG process, with regulators engaged earlier, is expected to carry harmonisation forward, and the fourteen existing annexes remain in force.
• Individual chapters are revised on their own cycles; a chapter that was harmonised can partly de-harmonise when one pharmacopoeia updates ahead of the others.

The practical consequence for a filing written today: check the current Q4B annex and the current version of each cited general chapter in all target regions, rather than assuming “harmonised” is permanent.

(Status as of early 2026 — confirm the PDG reform outcome and the Q4B forward plan against current ICH/PDG communications before lecture.)

How it fits the control strategy

Q4 is the layer that supplies the shared methods the rest of the framework assumes:

PDG — harmonise the general chapters (sterility, dissolution, endotoxins, uniformity …)

↓

Q4B — recommend the harmonised text as interchangeable across the ICH regions, with the regional caveats documented

↓

Q6 — the specification cites those chapters as the tests behind its acceptance criteria

↓

Q2 / USP <1226> — verify each adopted compendial method performs in your lab with your product

↓

Q7 / QC — run it, batch after batch, as part of the release decision

Where the analyst sits

Compendial methods can look like the boring part of the job — you follow the book. But the judgment calls are real: does this harmonised dissolution chapter’s non-harmonised apparatus footnote matter for my product in this region? Is my faster endotoxin method genuinely equivalent, or only equivalent on the batches I happened to test? Did the last Ph. Eur. supplement change a chapter I cite, and does my US filing still line up? The pharmacopoeia gives you the method; deciding whether it fits, whether an alternative is defensible, and whether your version still matches the current text across three regions is analytical work.

If the Q1 lesson is a shelf life is a hypothesis that must survive testing, and the Q2 lesson is a measurement is a claim that must earn our trust, the Q4 lesson is: a standard is only useful if everyone reads it the same way — and harmonisation is the unglamorous work of making that true.

For discussion

• A harmonised general chapter is “interchangeable” under a Q4B annex, but the annex lists a region-specific acceptance criterion for one ICH region. You run the test once. Have you met the requirement everywhere? What do you check?
• Your site wants to replace the compendial <71> sterility test with a rapid microbiological method. What does Q4 / compendial practice require before you can, and what must you still be able to do afterwards?
• You adopt the PDG-harmonised Uniformity of Dosage Units chapter. Which Q2 characteristics would you include in the USP <1226> verification, and which would you skip — and why?
• Why did ICH build Q4B (evaluate and recommend) instead of pursuing Q4A (one identical text)? Give two concrete obstacles to a single text.
• A Ph. Eur. supplement revises the dissolution chapter; USP has not yet followed. A product is filed in both regions citing “the harmonised chapter.” What is the problem, and what are your options?
• Residual-solvent limits come from Q3C but the test on the bench is USP <467>. Explain the division of labour between the ICH guideline and the pharmacopoeial chapter.
• When is running the compendial method non-negotiable, even if you have a validated alternative that performs better on your matrix?

Source note. ICH Q4B Evaluation and Recommendation of Pharmacopoeial Texts for Use in the ICH Regions reached Step 4 on 1 November 2007; its fourteen annexes reached Step 4 between 2009 and 2013 and remain in force. Q4A was never issued as an ICH guideline — pharmacopoeial harmonisation is carried out by the Pharmacopoeial Discussion Group (USP, Ph. Eur., JP; established 1989), whose 2021 reform and membership-expansion pilot (Indian Pharmacopoeia Commission from 2022) are ongoing. Compendial-method practice for the analyst: USP <1226> Verification of Compendial Procedures, the General Notices provisions on alternative methods and the compendial method as the method of record, and the chapters that implement other ICH guidelines — USP <467> (residual solvents, Q3C), <232>/<233> (elemental impurities, Q3D). (Instructor: confirm the PDG reform outcome, the current status of the Q4B forward plan, and the present version of any cited general chapter before lecture — the pharmacopoeias revise on independent cycles.)

1.3.5 - ICH Q5 — Quality of Biotechnological Products

The one idea

A small-molecule drug substance is defined by a structure: draw the molecule, and any competent lab anywhere can make the same thing and prove it is the same thing. A biotechnological product — a monoclonal antibody, a therapeutic enzyme, a fusion protein, a vaccine antigen — is not like that. It is assembled by living cells, folded and decorated by cellular machinery, and purified out of a broth that also contains the cells’ own proteins, DNA, and — potentially — viruses. Change the cell line, the medium, the bioreactor, the purification train, or the formulation, and you can change the product itself in ways no structural drawing captures.

For a biologic, the process is not how you make the product. The process, to a large degree, is the product.

The Q5 family is the set of guidelines that governs the parts of that reality analysis has to police: what the product is made in, whether the genetic instructions stayed intact, whether the process removes viruses, how the protein ages, and — the question that ties it all together — whether the thing coming out of the new process is still the same medicine as the thing that was tested in patients.

This sits alongside the three sections before it:

Q1 asks: does the product remain within its specification over time?

Q2 asks: can we trust the analytical evidence used to answer that?

Q3 asks: of everything that is not the drug, how much is acceptable — and on what basis?

Q5 asks: when the drug is a protein made in cells, what do we have to characterise and control that a structure alone would never tell us?

What makes a biologic different

Three properties drive everything in Q5:

• Microheterogeneity. A “pure” protein drug substance is a population of closely related molecules — the intended sequence plus a distribution of glycoforms, charge variants (deamidation, C-terminal lysine, N-terminal pyroglutamate), size variants (aggregates, fragments/clips), and oxidised or isomerised residues. The specification controls the distribution, not a single species.
• Process-dependent quality attributes. Glycosylation is the clearest case: the glycan pattern is set by the host cell and the culture conditions, and it can govern half-life, effector function (ADCC/CDC), and immunogenicity. It is a critical quality attribute that the chemistry does not predict and the process determines.
• Adventitious-agent risk. Because the product is grown in mammalian (or insect, or microbial) cells and fed animal- or plant-derived raw materials, there is a contamination pathway — viruses, mycoplasma, TSE agents — that simply does not exist for a molecule made by organic synthesis.

Everything in the Q5 set is a response to one of these three.

The Q5 family

Q5 is not one document. It is five, each carving out one piece of “how the product is generated”:

The mental model: Q5B and Q5D control the source (the cells and their genetic instructions); Q5A controls the hazard the source introduces (viruses); Q5C controls how the finished protein ages; and Q5E is the meta-guideline — the one you reach for every time any of the others’ inputs change.

The challenge: a moving target

The difficulty that shadows Q1, Q2 and Q3 is sharper here than anywhere else in the course. A synthetic route change might shift an impurity ratio. A cell-culture change — a new medium lot, a bioreactor scale-up, a shift from a 2,000 L to a 15,000 L tank, a new production site — can move the glycan profile, the charge-variant distribution, the aggregate level, and the host-cell-protein spectrum all at once, and the protein has no “melting point” you can check to reassure yourself nothing happened.

When the process defines the product, you cannot change the process without an analytical package that proves the product survived the change.

That analytical package is Q5E, and it is why comparability is treated as a discipline in its own right rather than a footnote to change control.

Q5A — viral safety

Q5A(R2) does not rely on a single test — no test for “all viruses” exists. It builds safety from three complementary pillars, on the principle that the weakness of any one is covered by the others:

1. Select and test the cell lines and raw materials. Characterise the master and working cell banks for endogenous and non-endogenous viruses (in vitro and in vivo assays, retrovirus assays, species-specific tests); qualify or eliminate animal-derived raw materials; test unprocessed bulk harvest.
2. Demonstrate the process clears virus. Deliberately spike a known quantity of model viruses (enveloped and non-enveloped, a range of sizes and resistances) into the feed of individual purification steps at small scale, and measure the log reduction factor (LRF) each step delivers. Effective, mechanistically distinct steps — low-pH hold, solvent/detergent, nanofiltration, Protein A and ion-exchange chromatography — are summed to an overall clearance figure.
3. Test the product at appropriate stages for freedom from contaminating infectious virus.

The quantitative logic: rodent cell lines such as CHO carry retrovirus-like particles, countable by electron microscopy at ~10⁷–10⁸ per mL of harvest. From that you calculate the particles a patient would receive per dose with no clearance, then show the validated process provides a reduction that leaves a safety margin of many orders of magnitude (often expressed as “less than one particle per million — or billion — doses”).

R2 (Step 4, September 2023) broadened the guideline well beyond classic recombinant proteins and mAbs — it now explicitly covers a wider range of biotech products (including some gene-therapy vectors and genetically engineered viral products), admits next-generation sequencing and other molecular methods as adventitious-agent detection tools, and formalises the use of prior knowledge and platform data to right-size clearance studies.

Q5B — the expression construct

Q5B answers a narrow but foundational question: are the cells making the protein you designed, and do they keep making it unchanged?

• Verify the coding sequence. Sequence the expression construct — the gene of interest plus the relevant regulatory and vector elements — and confirm it encodes exactly the intended amino-acid sequence.
• Confirm genetic stability. Show that the sequence and copy number are retained, and the correct protein is still expressed, in cells cultured at or beyond the limit of in vitro cell age used for production (i.e. push the cells past their production window and check they have not drifted).

Modern practice leans heavily on peptide mapping with LC–MS and intact/subunit mass analysis of the protein to confirm the sequence was translated faithfully, complementing the DNA-level work. A revision of Q5B is in progress to modernise this and align it with current sequencing and analytical technology.

Q5C — stability of proteins

Q5C is the biologics counterpart to Q1, and it exists because proteins fail in ways small molecules do not:

Because no single method captures all of this, Q5C requires a battery of stability-indicating assays, real-time / real-temperature data as the basis of the shelf life (accelerated conditions are supportive and for stress characterisation only), and attention to light, agitation, freeze–thaw, and container-closure interactions (adsorption to glass or silicone, leachables from the closure or delivery device). Almost all biologics are refrigerated (5 °C) products.

Q5C is one of the guidelines being consolidated into the modernised Q1 — the Step 2b draft folds small molecules, biologics, ATMPs, and combination products into one lifecycle framework with product-class annexes.

Q5D — cell substrates

Q5D governs the cell bank, the true starting material of a biologic. The centrepiece is the two-tiered banking system:

• A Master Cell Bank (MCB) — a large set of identical, cryopreserved vials derived from a single clone, characterised exhaustively once.
• A Working Cell Bank (WCB) — vials expanded from a single MCB vial, used to start production campaigns, so the MCB is drawn down slowly and lasts the life of the product.

Characterisation covers identity (isoenzyme, DNA fingerprinting / STR, now often sequencing), purity and freedom from adventitious agents (bacteria, fungi, mycoplasma, viruses — feeding Q5A), and genetic stability / cell-substrate stability. The limit of in vitro cell age (LIVCA) — the maximum number of population doublings or the maximum time in culture from thaw to harvest — is set from data showing the cells still make the right product, unchanged, at and beyond that point. Production must stay within the LIVCA.

Q5E — comparability

Q5E is the guideline the analyst meets most often. Whenever a manufacturing change is made — a new site, a bigger bioreactor, a reformulation, a raw-material substitution, a purification change — Q5E asks the sponsor to demonstrate that the product made after the change is comparable to the product made before it.

Two words carry the weight:

• “Comparable”, not “identical”. The pre- and post-change products need not be indistinguishable. They must be highly similar, and any differences must be shown to have no adverse impact on safety or efficacy.
• A weight-of-evidence judgement, built in tiers:

The teaching point: comparability is decided analytically first. The lab characterisation package is the primary evidence, and clinical data are a fallback for what the analytics cannot settle — the exact inversion of the intuition that “you prove a medicine works in the clinic.”

Q5E is also the scientific foundation of biosimilars: a biosimilar developer is running a comparability exercise against a product they did not make and whose process they do not know, using an even heavier analytical package to bridge that gap.

How the pieces fit — the biologics control strategy

Q5 is one layer of a control strategy that runs the length of the course:

Q11 — develop the cell line and the process, identifying the critical quality attributes and the process parameters that drive them

↓

Q5D / Q5B — characterise and bank the cell substrate; verify and fix the genetic instructions; set the limit of in vitro cell age

↓

Q5A — evaluate viral safety: test the substrate and raw materials, validate viral clearance across the purification train, test the bulk

↓

Q3 (with Q6B) — limit process-related impurities unique to biologics: host-cell protein, residual host-cell DNA, leached Protein A, media components, aggregates

↓

Q5C / Q1 — stability: a battery of stability-indicating methods plus a potency bioassay establishes the (usually refrigerated) shelf life

↓

Q6B — assemble the specification: identity, purity/impurities, potency, quantity, and product-specific characterisation tests

↓

Q5E — comparability: every time any input above changes, prove analytically that the product did not

↓

Q2 — validate every method in that chain, including the bioassay, which carries far more variability than a chromatographic assay

What Q5 demands of the analytical method

Every Q5 conclusion rests on methods that are harder to build and validate than their small-molecule equivalents:

• Orthogonality is mandatory, not optional. No single method defines a protein. Primary structure needs peptide mapping and intact mass; size variants need SEC and CE-SDS and an orthogonal particle method; charge variants need icIEF or ion-exchange with the other as confirmation. Q5’s characterisation expectations are the reason Q2(R2) leans on “a lack of specificity in one procedure may be compensated by other supporting procedures.”
• The potency assay is the hardest number in the file. A cell-based bioassay can have a relative standard deviation of 10–20 % where an HPLC assay has 1 %. Its validation (Q2), its reference standard, and its trending dominate lifecycle management for a biologic.
• Impurities are proteins and DNA, measured by immunoassay and qPCR. Host-cell-protein ELISA coverage, residual-DNA assay specificity, and the absence of a single “total impurities” number change how Q3 thinking applies.
• Comparability puts the method on trial. In a Q5E exercise you are asking a method to detect a difference between two batches. If it cannot — poor resolution, high variability, a blind spot for a particular glycoform — the comparability claim is only as strong as the method’s power to have found a problem.

Where the analyst sits

A biologics analyst is asked to certify things a structure could never establish: that a shifted glycan peak after a media change is within historical range and not a new risk; that a viral-clearance step still delivers its claimed log reduction at commercial scale; that a 15 % drop in bioassay potency is method noise and not a real loss; that the post-change product is “comparable” when a dozen analytical methods each tell a slightly different story. These are judgement calls drawing on protein chemistry, cell biology, immunology, virology, statistics, and separation science at once — the A in STEAM, with the stakes raised because the product cannot be reduced to a formula.

If the Q1 lesson is a shelf life is a hypothesis that must survive testing, the Q2 lesson is a measurement is a claim that must earn our trust, and the Q3 lesson is an impurity limit is a safety argument in the form of a number, the Q5 lesson is: when the process is the product, “the same medicine” is an analytical verdict — and the analyst is the one who has to reach it.

For discussion

• A monoclonal antibody process moves from a 2,000 L to a 15,000 L bioreactor. The afucosylated-glycan fraction rises from 4 % to 7 %. Walk through the Q5E decision: what analytical data do you generate, and what would push you from “quality comparable” to needing a clinical bridge?
• Your viral-clearance study claims 18 logs of total reduction across four steps, but two of the steps share the same mechanism (both are low-pH holds). How should the overall claim be adjusted, and why does mechanistic diversity matter?
• A CHO cell line contains ~10⁸ retrovirus-like particles per mL of harvest. Sketch the calculation from that number to “less than one particle per million doses,” and identify which process steps you are relying on.
• Q5C requires a potency bioassay even when every physicochemical attribute is within specification. Give a concrete degradation scenario where the chemistry looks fine and the bioassay does not.
• A biosimilar developer runs a Q5E-style comparability exercise against an originator product whose manufacturing process is a trade secret. What can analytics establish, and where exactly does the residual uncertainty sit?
• Your working cell bank is running low and you need to make a new one from the master cell bank. What does Q5D require you to demonstrate before the new WCB can be used for GMP production?
• The modernised Q1 will absorb Q5C. What does a biologics stability program gain, and what is at risk of being lost, when protein stability guidance stops being a standalone document?
• A host-cell-protein ELISA reports “< 10 ppm” after a process change. A regulator asks how you know the antibody reagent still detects the HCPs present in the new process stream. What is your answer?

Source note. The Q5 family: Q5A(R2) Viral Safety Evaluation of Biotechnology Products Derived from Cell Lines of Human or Animal Origin (Step 4, 26 September / 1 November 2023 — R2 expands scope, adds next-generation sequencing and prior-knowledge use); Q5B Analysis of the Expression Construct in Cells Used for Production of r-DNA Derived Protein Products (Step 4, 26 November 1995; revision in progress); Q5C Stability Testing of Biotechnological/Biological Products (Step 4, 30 November 1995; being consolidated into the modernised Q1); Q5D Derivation and Characterisation of Cell Substrates Used for Production of Biotechnological/Biological Products (Step 4, 16 July 1997); Q5E Comparability of Biotechnological/Biological Products Subject to Changes in Their Manufacturing Process (Step 4, 18 November 2004). Related: Q6B (specifications for biotech products), Q11 (development and manufacture of drug substance, including biotech), and the compendial adventitious-agent and characterisation chapters (USP <1050> viral safety, <1132> host-cell protein, <509> residual DNA). (Instructor: confirm the Q5A(R2) and Q5B revision status and the Q5C-into-Q1 consolidation timeline against the current ICH work plan before lecture.)

1.3.6 - ICH Q6 — Specifications

(The graphic is a lecture aid, not a citation — its “Q6C / Q6D / Q6E (Not used)” rows and its “Comparability — Q6E” panel don’t match the current ICH text: there is no Q6C/D/E, and product comparability lives in Q5E. The Q6 family is Q6A plus Q6B, as described below.)

The one idea

By the time a molecule reaches this page, the science has been done. Q1 established how it degrades and how long it lasts. Q3 worked out which impurities matter and at what level. Q5 — for a biologic — characterised the protein and its heterogeneity. Q2 showed the methods can be trusted. Q6 is where all of that collapses into a finite list.

A specification is the short document a quality-control lab actually runs against every batch: a handful of tests, each with a numerical limit, and a single verdict at the end — release, or reject. Everything the development programme learned has to survive being compressed into that list, because the list is what the patient’s supply is checked against, batch after batch, for the life of the product.

A specification is a safety and efficacy argument rewritten as a pass/fail line — and someone signs their name under the result.

This sits alongside the sections before it:

Q1 asks: does the product remain within its specification over time?

Q2 asks: can we trust the analytical evidence used to answer that?

Q3 asks: of everything that is not the drug, how much is acceptable — and on what basis?

Q6 asks: of all the quality attributes we could measure, which ones go on the list, which tests measure them, and where exactly does each limit sit?

What a specification is

Q6A and Q6B share one definition:

A specification is a list of tests, references to analytical procedures, and appropriate acceptance criteria — numerical limits, ranges, or other criteria for the tests described — which establishes the set of criteria to which a drug substance or drug product should conform to be considered acceptable for its intended use.

Three parts, and all three matter:

Two framing points run through the whole guideline:

• A specification confirms quality; it does not create it. Quality is built in by development and by GMP; end-product testing verifies it. A specification is deliberately not exhaustive — it does not re-measure everything that was characterised, only the attributes that need routine confirmation.
• It is one element of a total control strategy. In-process controls, process validation, raw-material controls, a stability programme, and GMP all carry part of the assurance. The specification is the final, documented checkpoint — not the sole guarantee.

The Q6 family

Q6 is split by the kind of product, because a synthetic molecule and a protein made in cells need different test lists:

There is no Q6C. Antibiotics, herbals, and radiopharmaceuticals are outside both; biosimilars lean on Q6B via the Q5E comparability logic. The mental model: Q6A is a checklist framework — here are the tests, here are the trees for the hard calls; Q6B is a characterisation framework — first describe the molecule completely, then decide which small subset to test every time.

The challenge: specifications evolve with knowledge

The same difficulty that shadows Q1, Q2 and Q3 lands squarely on Q6. A specification is not written once. It tightens as the evidence base grows, moving from a wide, provisional net early in development to a precise, well-justified contract by the time of filing — and it keeps being revised afterwards.

The driver is uncertainty. Early on you have a handful of batches, methods that are still changing, and a safety picture built largely from animal data and historical knowledge of the chemical class. You cannot justify a tight limit, so you set a wide one and lean on characterisation instead of routine testing. As clinical and laboratory characterisation accumulates, the safety profile sharpens, the methods get more precise and robust, the impurity profile is understood across many batches, and formal stability data replace projections — and the specification narrows to match.

A specification is a running summary of how well the product is understood. Wide limits are a confession of uncertainty; tight, defended limits are the evidence that the uncertainty has been retired.

Because the earliest commercial specification is still a first draft written with limited evidence, many acceptance criteria are filed as interim — set conservatively, flagged for revision once enough commercial data accumulate — and changing a limit afterwards is a regulated post-approval change (Q12 governs how much room the original filing leaves for that). Throughout, the discipline Q6 demands is the same one Q1 and Q2 demand: fixed tests, fixed methods, fixed reporting, so that batch 400 can be compared honestly against batch 4.

The anatomy of a specification

Q6A organises tests into universal (apply to essentially every substance or product) and specific (depend on the molecule and the dosage form).

Universal tests:

Specific tests — a sample, by dosage form:

Some attributes are characterised but not put on the specification — measured during development, and only added to routine testing if they can vary in manufacture or storage and affect safety or performance (polymorphic form and particle size are the classic examples, resolved by decision tree).

Q6A — small-molecule specifications

Beyond the test lists, Q6A’s real contribution is a set of decision trees for the judgement calls that a checklist cannot make. In brief, they cover:

• Polymorphism — does the drug substance have polymorphs; can they interconvert in manufacture or on the shelf; do they change bioavailability or stability? Only if all three, does a solid-state form test belong on the specification.
• Drug-substance impurities and drug-product degradation products — how to convert the Q3 thresholds and the batch history into a specified-impurity limit, an any-unspecified-impurity limit, and a total.
• Residual solvents — Option 1 / Option 2 limits from Q3C, and when a routine test is needed versus a supplier statement.
• Microbiological quality — when a non-sterile product needs microbial-limit testing on the specification versus periodic testing.
• Dissolution — single-point vs. profile; when disintegration is an acceptable surrogate for a rapidly dissolving immediate-release product; how to build a profile acceptance criterion for modified-release.
• Chirality — identity and impurity control for a single-enantiomer drug.

Q6A also introduces three concepts that recur across the course:

• Periodic (skip) testing — running a test on a pre-selected fraction of batches or at set intervals rather than every batch, when a large body of data shows the attribute is reliably in control (residual solvents, microbial limits, and particle size are common candidates). A failure sends you back to batch-by-batch testing.
• Parametric release — for a terminally sterilised product, releasing on the validated sterilisation-cycle data (F₀, temperature, pressure, time, load) instead of the finished-product sterility test, whose statistics are weak anyway.
• Release vs. shelf-life acceptance criteria — see below.

Setting an acceptance criterion — capability vs. relevance

This is the concept to fix for graduate students. Every limit on a specification is pulled between two anchors:

Q6A’s answer: an acceptance criterion should be no wider than the clinical and stability experience supports, and normally set with reference to what the process can reliably deliver. A limit much wider than the batch data is a red flag (why so much slack?); a limit much tighter than the clinical experience needs is a self-inflicted supply risk. Justifying each number against both anchors — with the batch-analysis table, the stability data, the tox and clinical batch history, and the pharmacopoeial standard — is the core of the specification section of a filing.

Q6B — biological product specifications

For a biologic the test list cannot be written until the molecule has been characterised, because the “drug substance” is a population of related species, not one structure. Q6B separates two activities:

• Characterisation — an extensive, largely one-time (or infrequent) analytical exercise establishing the physicochemical, structural, immunochemical, and biological-activity profile of the product.
• Routine specification testing — a deliberately smaller subset, run on every batch, chosen because it is the sensitive indicator of a process staying in its validated state.

Q6B groups the analytical work into categories:

Two Q6B-specific ideas:

• Product-related substance vs. product-related impurity. A molecular variant that has been shown to have no adverse effect on safety or efficacy is a substance — part of the product, not a defect. A variant that is not so demonstrated is an impurity, with a limit. The distinction is an analytical + biological judgement, revisited as knowledge grows.
• The in-house reference standard. There is usually no compendial standard for a novel biologic, so the manufacturer establishes a primary reference standard (fully characterised, from a clinically qualified lot) and calibrates successive working standards against it. Every potency and many purity results are expressed relative to that material, so its qualification and its replacement over time are critical-path activities.

Release vs. shelf-life acceptance criteria

For a drug product, the same attribute can carry two limits: a tighter one applied at release and a wider one that must hold throughout shelf life. The gap allows for known, predictable change on storage — a small assay decline, a rise in a degradation product, a dissolution slowdown — so that a batch released near its shelf-life limit would fail before expiry.

The concept is only partly harmonised: it is used in the EU and Japan as formal dual limits, while the US treats the tighter figure as an internal (in-house) release limit and registers the single shelf-life specification. A filing has to be built for the target region’s convention.

Periodic testing, parametric release, and real-time release

Q6 opens the door — and Q8, Q13 and Q14 push it wider — to release decisions that lean less on end-product testing:

• Periodic / skip testing reduces the frequency of a test that data show is always in control.
• Parametric release replaces the sterility test with sterilisation-cycle evidence.
• Real-time release testing (RTRT) replaces an end-product test with a validated in-process measurement plus a process model — e.g. NIR-based content uniformity on a tablet press, or a dissolution prediction from granule and press data. The specification still lists the attribute and its acceptance criterion; what changes is where and when the measurement is made.

In every case the acceptance criterion on the specification does not go away — the burden of proof simply moves upstream, and the Q2 / Q14 validation of the surrogate measurement has to be correspondingly stronger.

The certificate of analysis — the specification, one batch at a time

A specification is generic to the product. The certificate of analysis (CoA) is the specification applied to a single batch — the industry-standard document that travels with the material and says, for lot number X, exactly what was tested, what the limits were, and what the batch actually gave.

A CoA lays the same information side by side, one row per test:

The CoA summarises years of development into a single page. Everything behind it — the method validation, the stability programme, the impurity qualification, the acceptance-criteria justification — is compressed into “test / limit / result / pass”. It is what a purchaser of an API checks on receipt, what a regulator asks for during an inspection, and what a qualified person signs against before releasing a product batch.

The teaching point: if you have a current CoA that conforms, you have documented evidence that the control measures for that product are working for that lot. A batch is not “good because it was made carefully” — it is releasable because a CoA shows it met every line of the specification, using methods and limits that are themselves justified. The CoA is where the abstract control strategy becomes a concrete, signed release decision.

A small-molecule API certificate

For a synthetic drug substance the CoA is a compact, recognisable list. Representative tests and illustrative limits (real numbers are drug- and dose-specific):

Two points the table teaches:

• Two identity tests — “two engines on an aeroplane.” Regulators require identity to be specific, and one orthogonal method (IR and an HPLC/UV/TLC/optical-rotation confirmation) will satisfy that. Running a second is cheap insurance against a mislabelled drum or a method-specific artefact: you only strictly need one, but you fly with two.
• Impurity limits are a moving target. A rough teaching benchmark — it varies widely with drug and daily dose, and is looser than the Q3 thresholds a typical oral dose would demand — is: any single unspecified impurity well under ~1 % (in practice near the Q3 identification threshold); specified, qualified impurities allowed higher, roughly 1–3 % with toxicological justification; a drug substance running > 3 % total impurities generally not acceptable for clinical use. All three tighten sharply from Phase 1 to filing as batches accumulate and methods improve.

An immediate-release tablet certificate

The drug-product CoA keeps the universal tests (description, identity, assay, degradation products) and adds dosage-form performance tests:

Consistency of the dosage form is the point of the uniformity and dissolution tests: every tablet a patient takes should deliver essentially the same dose (the 90–110 % per-unit expectation), and release it at essentially the same rate.

Large molecules and advanced therapies

Every product class needs its own CoA, and the further from a small molecule you go, the more the certificate changes shape.

A monoclonal antibody CoA replaces the small-molecule rows with: appearance; identity by peptide map and charge profile (icIEF); protein content (A280); purity by SEC (monomer / high- and low-molecular-weight species), CE-SDS, and icIEF charge variants; a released-glycan profile; potency by a cell-based bioassay (reported as % of the reference standard); process impurities — host-cell protein (ELISA), residual host-cell DNA (qPCR), leached Protein A; endotoxin and sterility; polysorbate content; pH and osmolality. There is no single “assay” and no single “impurities” number — each is a family of orthogonal methods (Q5, Q6B).

An autologous CAR-T CoA is different again, and the differences are instructive:

Three structural constraints shape that certificate:

• The batch is one patient. An autologous dose is a batch of one; there is no “three registration batches” and little classical characterisation history, so the specification leans heavily on platform and prior knowledge and on process control.
• The shelf life can be hours. A fresh CAR-T product may expire the day it is made (cryopreserved products buy time), so the CoA has to be completed on a compressed timeline.
• Some results read out after dosing. The 14-day compendial sterility test cannot gate a product with a 48-hour shelf life. Release runs on rapid sterility, Gram stain, and endotoxin, with the full test as confirmatory — a formal conditional / exceptional release framework, with a plan for what happens if the confirmatory test later fails.

How the pieces fit — the specification as the meeting point

Q6 is where the other quality guidelines converge into a single document:

Q1 — stability data fix the shelf-life limits for assay, degradation products, dissolution, water

↓

Q3 — the threshold ladder and batch history fix the specified-impurity, unspecified-impurity, and total-impurity limits

↓

Q5 / Q6B — characterisation fixes the identity, purity, and potency tests for a biologic, and which variants are substances vs. impurities

↓

Q4 — harmonised general chapters supply the standard test methods the specification cites

↓

Q6 — assemble and justify the acceptance criteria: universal tests + specific tests, each limit defended against process capability and clinical relevance

↓

Q2 — validate every listed method at the limit it has to police

↓

Q7 / QC — run the specification on every batch and record it on the certificate of analysis; that document is the release decision

What Q6 demands of the analytical method

A limit is only real if a method can defend it:

• The method must discriminate at the acceptance criterion. A ≤ 0.2 % impurity limit needs a method whose quantitation limit sits below 0.2 % and whose precision at that level is known — the direct link to Q2.
• Identity tests must be specific. A single non-specific test (one retention time, one colour reaction) is not acceptable for identity; Q6A expects orthogonality, and Q6B often needs a peptide map or an immunoassay.
• The method and the limit are set together. A round-number acceptance criterion the method cannot reproduce at that edge is a specification that will generate out-of-specification investigations from method noise alone.
• Pharmacopoeial methods still need verification in your lab, on your matrix (USP <1226>) — citing a chapter is not the same as demonstrating it works for your product.

Where the analyst sits

Writing a specification is a sequence of judgement calls that no template makes for you: is this impurity specified or caught by the unspecified limit; is that charge variant a substance or an impurity; should particle size be on the specification or only characterised; is a 98.0–102.0 % assay limit justified by the batch data or just a habit; does this product need release and shelf-life criteria for the region we are filing in; is the process mature enough to move this test to skip testing. Each answer has to be defensible to a regulator years later, against data that did not exist when the limit was set. That is the A in STEAM again — the science produces the numbers; the analyst decides which ones become promises.

If the Q1 lesson is a shelf life is a hypothesis that must survive testing, the Q2 lesson is a measurement is a claim that must earn our trust, and the Q3 lesson is an impurity limit is a safety argument in the form of a number, the Q6 lesson is: a specification is the finite, numbered promise that everything the science established is still true of this batch — and the analyst is the one who has to be able to defend every line of it.

For discussion

• An impurity is present at 0.08 %, 0.10 %, and 0.09 % in your three registration batches. The Q3 qualification threshold is 0.15 %. Where do you set the acceptance criterion, and how do you justify it against both anchors — process capability and clinical relevance?
• A Phase 1 specification lists an impurity limit of “≤ 0.5 % (report result)”; the commercial specification for the same impurity is “≤ 0.15 %”. Explain what changed between those two documents to justify the tighter limit — and what would have been wrong with filing 0.15 % at Phase 1.
• You receive a drug-substance lot from a supplier with a certificate of analysis showing every result within specification. What does the CoA let you conclude, what does it not tell you, and what would you still verify before using the material?
• Your assay method has a precision (RSD) of 1.5 % at the 100 % level. Marketing wants a 98.0–102.0 % release limit. What is the statistical problem, and what limit would you defend instead?
• A drug product loses about 3 % of its assay value over its 24-month shelf life. The lower shelf-life limit is 95.0 %. What should the release limit be, and how does the answer differ for an EU filing versus a US filing?
• A polymorph screen finds two forms of the drug substance. Walk the Q6A polymorphism decision tree: what would put a solid-state form test on the drug-product specification, and what would keep it off?
• For a monoclonal antibody, deamidation at one site rises from 5 % to 12 % after a media change but a comparability study shows no effect on binding, potency, or PK. Is the deamidated form now a product-related substance or an impurity? What decides it?
• Your site has 300 batches of clean residual-solvent data. Make the case for moving that test to periodic (skip) testing — and describe exactly what happens if a skip-tested batch fails.
• A tablet line proposes NIR-based real-time release for content uniformity, dropping the end-product test. What stays on the specification, what moves, and why does the method validation burden go up?
• A regulator asks why your biologic’s potency is reported as “percent of reference standard” rather than in absolute units. What is your answer, and what does it imply about maintaining that reference standard over the product’s life?

Source note. ICH Q6A Specification: Test Procedures and Acceptance Criteria for New Drug Substances and New Drug Products: Chemical Substances reached Step 4 on 6 October 1999, including its attached decision trees. ICH Q6B Specifications: Test Procedures and Acceptance Criteria for Biotechnological/Biological Products reached Step 4 on 10 March 1999. The two are read with Q3A/Q3B/Q3C/Q3D (impurity limits), Q1 (shelf-life criteria), Q2 (method validation), Q5 (biotech characterisation and comparability), and the compendial general chapters harmonised under Q4B. Real-time release testing and the lifecycle management of specifications are developed further in Q8–Q12, Q13, and Q14. (Instructor: Q6A and Q6B date from 1999 and have not been revised; confirm the current decision-tree numbering and check whether the ICH work plan has opened a Q6 revision before lecture, and cross-check all threshold references against the current Q3 texts.)

1.3.7 - ICH Q7 — GMP for Active Pharmaceutical Ingredients

The one idea

The sections before this one are about the result: is the shelf life real (Q1), can the measurement be trusted (Q2), is the impurity safe (Q3), is the limit on the list defensible (Q6). Q7 is about the system that produced the result. A correct number from an uncalibrated instrument, an untrained analyst, an unvalidated method, or a batch record written from memory a week later is not evidence of anything.

Guidance regarding good manufacturing practice (GMP) for the manufacturing of active pharmaceutical ingredients (APIs) under an appropriate system for managing quality — and to help ensure that APIs meet the requirements for quality and purity that they purport or are represented to possess.

The operative phrase is an appropriate system for managing quality. GMP status is not a certificate on the wall; it is the demonstrable, documented existence of every control in the numbered sections below, running every day, provable to an inspector reading the records cold years later. This page is the checklist of what that system contains.

Where GMP begins — and why it tightens

Q7 does not govern the whole synthetic route. It starts at a defined point and gets stricter toward the end.

API starting material — a raw material, intermediate, or API used in the production of an API that is incorporated as a significant structural fragment into the API. It is often an article of commerce. GMP under Q7 applies from the point the API starting material is introduced into the process.

The stringency of GMP increases as the process moves from early API steps to final isolation, purification, and packaging.

Early steps get appropriate, evolving controls. The final steps that fix the impurity profile, the physical form, and the label identity get the full weight of Q7. The rationale is purge capacity: an error early in the route can still be removed by later purification; an error in the final crystallization or the packaging line reaches the patient.

The quality unit — the keystone control

Every other section leans on this one. There must be a quality unit that is independent of production, and Q7 lists duties that may not be delegated to production:

• Release or reject every batch of API; release or reject intermediates used outside the company’s control.
• Review and approve the completed batch production record before the batch is released.
• Ensure that critical deviations are investigated and resolved.
• Approve all specifications and master production instructions, and any procedure that affects the quality of intermediates or APIs.
• Approve and audit contract manufacturers and contract laboratories.
• Approve changes that potentially affect quality (change control).
• Review and approve validation protocols and reports.
• Maintain effective systems for complaints and recalls and for stability monitoring.
• Conduct internal audits (self-inspection) and the product quality review.

Product quality review — at least annually, covering critical in-process and API test results, batches that failed specification, critical deviations and their investigations, changes, stability results, returns / complaints / recalls, and the adequacy of the corrective actions taken.

The controls, section by section

The complete checklist of what a facility must have in place and be able to prove:

Section 11 in detail — laboratory controls

This is where the course lives. Section 11 sets what a GMP QC laboratory must have.

General controls. Documented procedures for sampling, testing, and the approval or rejection of every material; specifications that are scientifically sound and consistent with the regulatory filing; scientifically sound sampling plans; primary records that include the raw data — charts, spectra, printouts — not just a transcribed result; all testing performed to procedure and documented at the time; deviations recorded and justified.

Testing and the impurity profile. Each batch is tested for conformance to its specification. And the requirement that ties Q7 back to Q3 and Q6:

The impurity profile should be compared at appropriate intervals against the profile in the regulatory submission, or against historical data, to detect changes resulting from modifications in raw materials, equipment operating parameters, or the production process.

The analyst is the early-warning system for a process drifting away from what was registered.

Out-of-specification (OOS) results. Q7 requires a written procedure covering data analysis, assessment of whether a real problem exists, assignment of corrective actions, and conclusions, with any resampling or retesting done only to a documented procedure. The widely applied practice (aligned with FDA’s OOS guidance) is a laboratory-assessment phase first — was the method followed, the instrument in calibration, the calculation correct? — and then, absent an assignable laboratory cause, a full investigation extending to the batch, other batches, and the process. Averaging away a failing result or retesting into compliance is not acceptable; the investigation and its conclusion become part of the batch record.

Certificate of analysis. An authentic CoA issued for each batch on request: product name and grade, batch number, each test with its acceptance limits and its actual numerical result, the date, and an authorised signature. It must carry the original manufacturer’s data; a CoA issued by an agent has to name the original manufacturer and be traceable to the original.

Stability monitoring. A documented ongoing programme: stability-indicating methods; containers that simulate the market package; the first three commercial batches, then at least one batch per year thereafter (if any is made); storage conditions matching the label.

Expiry and retest dating. Assigned from stability data; a retest-dated API may be used after its retest date provided a representative sample is retested and still conforms.

Reserve (retention) samples. Packaged as marketed (or more protectively), in at least twice the quantity needed for a full specification re-test, retained one year past the batch’s expiry, or three years past distribution for a retest-dated API — whichever is longer.

Section 12 in detail — validation

• Validation policy — documented; critical parameters and attributes identified from development or historical data; the ranges for reproducible operation defined.
• Qualification before validation — installation and operational qualification (IQ / OQ) of facilities and equipment, with design and performance qualification as applicable, precede process validation.
• Process validation — normally prospective for APIs; three consecutive successful production batches used as a guide; concurrent validation justified case by case; retrospective validation only for well-established legacy processes.
• Periodic review — validated systems reviewed to confirm they still operate validly; where nothing significant has changed, a documented review can substitute for revalidation.
• Cleaning validation — residue limits set from solubility, toxicity / pharmacological activity, and the minimum therapeutic dose; validated analytical methods sensitive enough to detect residues at those limits; clean-hold and dirty-hold times established.
• Analytical method validation — every method validated (unless it is a verified compendial method) for the characteristics appropriate to its purpose: accuracy, precision, specificity, detection and quantitation limit, linearity, range, robustness — the Q2 figures of merit — with revalidation to a degree that scales with any change.

Documentation and data integrity — ALCOA+

GMP status is proved by records, so the records themselves are a control. The ALCOA+ criteria — later codified in data-integrity guidance but built on the Section 6 requirements — say every GMP record must be:

The concrete Q7 requirements behind this: entries in indelible ink in the space provided, signed and dated at the time; corrections dated and signed, leaving the original legible; audit trails on computerised systems; controlled blank forms; defined retention periods; and quality-unit review of the complete batch record — production and laboratory — before any batch is released.

Reprocessing vs. reworking

A distinction Section 14 makes that students routinely blur:

Continuing a process step after an in-process control shows it is not finished is normal processing — not reprocessing.

Where the analyst sits

Q1, Q2, Q3, and Q6 tell you what the numbers must mean. Q7 is the reason anyone believes your numbers in the first place: the instrument was calibrated, the method was validated, the reference standard was qualified, the raw data still exists, and an independent quality unit — not your manager in production — signed the release. Every audit finding that begins “the result looked fine, but…” is a Q7 finding.

If the Q1 lesson is a shelf life is a hypothesis, the Q2 lesson is a measurement is a claim that must earn trust, and the Q6 lesson is a specification is a numbered promise, the Q7 lesson is: none of those promises count unless the system that produced them is itself under control — and that control is the thing you have to be able to show. That is the A in STEAM again: the analyst is where an abstract quality system becomes a signature on a page.

For discussion

• Q7 applies “from the point the API starting material is introduced into the process,” and stringency rises toward the final steps. Why is a deviation in the first synthetic step treated more leniently than the same deviation in the final crystallization?
• An analyst gets a failing assay result, repeats the injection, gets a passing result, and reports the mean. Which parts of Section 11 does that violate, and what should have happened?
• Your impurity profile for the last four batches shows a new peak at 0.06 % that was absent from the registration batches. It sits below the Q3A identification threshold. What does Section 11 oblige you to do anyway?
• A batch of API is out of specification for a single impurity. The site proposes recrystallising it with the normal process solvent under the normal conditions. Is that reprocessing or reworking, and what does the answer change?
• A contract laboratory runs your release testing. What must be in place before you can rely on their CoA, and what remains your responsibility?
• The quality unit is asked to release a batch to meet a shipping date before a deviation investigation is closed. On what basis can they refuse, and who outranks them?
• You are setting cleaning-validation residue limits for a high-potency API on shared equipment. Which three inputs set the limit, and why does the analytical method’s LOQ have to be checked against it?

Source note. ICH Q7 Good Manufacturing Practice Guide for Active Pharmaceutical Ingredients reached Step 4 on 10 November 2000; a set of clarifying questions and answers was adopted in June 2015. In the ICH quality framework, Q7 is read alongside Q9 (quality risk management) and Q10 (pharmaceutical quality system), but it stands on its own as the GMP standard for APIs and is implemented regionally as FDA guidance, EU GMP Part II, and the PIC/S equivalent. Its laboratory requirements connect directly to Q2 (method validation), Q1 (stability-indicating methods and the stability programme), Q3 (the impurity profile), and Q6 (the specification the laboratory runs). (Instructor: Q7 dates from 2000 and the core guideline has not been revised; confirm the current status of the Q7 Q&A document and any ICH work-plan item before lecture, and cross-check the retention-period, stability-batch, and reserve-sample specifics against the current text.)

1.3.8 - ICH Q8–Q12 — Development, Risk, Quality System & Lifecycle

The one idea

Everything before this section judges a result after the fact: is the shelf life real (Q1), can the measurement be trusted (Q2), is the impurity safe (Q3), is the limit defensible (Q6), is the system that produced it under control (Q7). Q8–Q12 are about designing the process so the result is right by construction, and then managing that process for the life of the product.

A harmonised pharmaceutical quality framework applicable across the life cycle of the product, emphasising an integrated approach to quality risk management and science.

These are the newer ICH guidelines, and they read differently from Q1–Q7. They are high-level and deliberately less prescriptive — visionary rather than procedural — and they trade fixed rules for flexible, risk-based regulatory approaches: do the science, understand your process, show your reasoning, and the filing (and the inspection, and the post-approval change process) can be lighter in proportion.

What this page covers

• Q8 — pharmaceutical development: quality by design (QbD), the quality target product profile, critical quality attributes (CQAs), design space, and control strategy — plus the methods used to determine a design space and build causality from process parameters to quality attributes.
• Q9(R1) — quality risk management: the process, the toolbox (FMEA, FMECA, FTA, HAZOP…), and criticality analysis as the way a high-dimensional process is reduced to “what matters”; the R1 revision on formality and subjectivity.
• Q10 — the pharmaceutical quality system: management responsibility, the four elements (monitoring, CAPA, change management, management review), and how it enables regulatory flexibility.
• Q11 — development and manufacture of drug substances (small molecule and biotech); starting-material selection and justification.
• Q12 — lifecycle management: established conditions, the Product Lifecycle Management (PLCM) document, and post-approval change categories.
• How a pharmaceutical development section is assembled into the CTD — risk management, design space, control strategy, drug-substance information.
• The analytical throughline: CQAs drive specifications drive methods; a method is part of the control strategy, and changing it is a managed change under Q10/Q12 — the same logic Q14 applies to the method itself.

The family at a glance

A labelling note. Q11 is Development and Manufacture of Drug Substances; Q12 is Lifecycle Management. It is a common slip to swap them or to call Q11 “continuous validation” — that concept belongs to the FDA’s process-validation lifecycle and to Q13, not to a numbered Q11 title.

Q8 — pharmaceutical development and quality by design

Q8 asks the applicant to begin with the end in mind and then show the reasoning that connects the two ends:

1. Quality Target Product Profile (QTPP) — a prospective summary of the quality characteristics the product must have to deliver the intended clinical performance (dosage form, route, dose, pharmacokinetic profile, container, shelf life).
2. Critical Quality Attributes (CQAs) — the physical, chemical, biological, or microbiological properties that must be within a limit to ensure the QTPP is met (assay, uniformity, dissolution, a named impurity, aggregation for a protein).
3. Link inputs to CQAs — identify which material attributes (of drug substance, excipients) and process parameters affect each CQA, and how strongly, using risk assessment plus experimentation.
4. Design space — the multidimensional combination of input ranges that has been demonstrated to assure quality. Working within it is not a change; leaving it is.
5. Control strategy — the planned set of controls, derived from that understanding, that keeps the process producing conforming product.
6. Continual improvement — within the pharmaceutical quality system (Q10), across the lifecycle.

The vocabulary

Determining the design space

A design space is a claim about causality between parameters and attributes, and Q8 recognises several ways to earn that claim. Any one, or any combination, may be used.

The practical sequence is usually: FMECA to narrow the field → DOE (and, where possible, mechanistic models) to quantify the relationships → scale-up correlations to move the result to commercial equipment. The output is a design space plus a control strategy, both filed for the licence to manufacture and sell.

Criticality analysis — FMECA

A commercial process has dozens of parameters and dozens of measurable attributes. Criticality analysis is the discipline of reducing the dimensionality of a complex system to what matters.

• It is a systematic way to separate the parameters that move a CQA from the parameters that do not.
• It enables focus — effort, monitoring, and the metrics used to track and control the process are spent on what is actually necessary.
• Done well, it builds causality into the process parameters that are tied to quality attributes, rather than carrying every parameter forward “just in case”.

Where the field is going. Today, criticality is still largely tacit knowledge and experience — an expert panel scoring a spreadsheet. The direction of travel is toward explicit, statistical, model-driven criticality assessments built from data: the DOE and the mechanistic model produce the sensitivity coefficients, and the criticality ranking falls out of them rather than out of a workshop vote.

The control strategy

The control strategy is what a design space is for. Q8 defines it as the planned set of controls, derived from current product and process understanding, that assures process performance and product quality. It is assembled from the development work:

• DOEs establish which parameters and attributes are important, and the ranges over which the process behaves.
• Process parameters and quality attributes are enumerated and their relationships mapped.
• FMECA relates the process parameters to the quality attributes and, through them, to patient risk.
• The CPPs and CQAs are defined — the short list that must be controlled and measured every batch.
• The result is the framework for the control strategy and for the filing that supports the licence to manufacture and sell.

A control strategy typically spans: controls on input material attributes (drug substance, excipients, container); controls on process parameters (setpoints and ranges for the CPPs); in-process controls and in-process tests; a monitoring scheme; and the finished-product specification (Q6). The more assurance sits upstream in material and process controls, the less has to rest on end-product testing — up to and including real-time release testing (Q13, Q6).

Writing it into the CTD

Pharmaceutical development and the related information are submitted in the Common Technical Document — Module 3 is Quality, and the pharmaceutical development section (3.2.P.2 for the product, with parallel drug-substance content) is organised around the QbD outputs:

This is all in scope of Q8 (with its Annex on the enhanced approach); Q11 and Q12 extend it to the drug substance and to the post-approval phase.

Q9 — quality risk management

Q9 supplies the method that Q8, Q10, Q11, and Q12 all lean on. Two principles:

1. The evaluation of risk to quality should be based on scientific knowledge and ultimately link to protection of the patient.
2. The level of effort, formality, and documentation of the risk-management process should be commensurate with the level of risk.

The process is a loop: risk assessment (identification → analysis → evaluation) → risk control (reduction / acceptance) → risk communication → risk review. The toolbox includes FMEA, FMECA, fault tree analysis (FTA), HACCP, HAZOP, preliminary hazard analysis (PHA), and simple risk-ranking and filtering.

Q9(R1) (2023) revised the guideline to address four points where practice had drifted: high subjectivity in risk scoring; unclear expectations around formality (not every decision needs a full FMECA); the role of QRM in ensuring supply continuity, not just product quality; and better guidance on risk-based decision-making. It connects directly to the risk-based stringency in Q7 and to how acceptance criteria are justified in Q6.

Q10 — the pharmaceutical quality system

Q10 describes one quality system covering the entire product lifecycle — pharmaceutical development, technology transfer, commercial manufacturing, and product discontinuation — built on regional GMP and complementing ISO quality-management concepts. It is what operationalises Q8 and Q9 in a company.

Management responsibility is explicit: senior management owns the quality system, defines the quality policy and objectives, provides resources, and conducts management review.

Four elements run at every lifecycle stage:

Two enablers cut across all four: knowledge management and quality risk management. A mature, demonstrable PQS is the basis on which regulators grant the operational and regulatory flexibility that Q8 and Q12 promise.

Q11 — development and manufacture of drug substances

Q11 applies the Q8/Q9/Q10 approach to the active substance, for both chemical entities and biotechnological/biological products, and can be followed with a traditional approach, an enhanced approach, or a combination.

Its most-cited contribution is the selection and justification of starting materials. General principles include:

• A starting material is incorporated as a significant structural fragment into the drug substance (the same phrase that governs where GMP begins in Q7).
• Manufacturing steps that affect the drug substance impurity profile should normally be part of the described process — you cannot push the GMP boundary so far downstream that impurity-forming and impurity-purging chemistry sits outside it.
• The applicant should identify the CQAs of the starting material and the risks it carries into the drug substance, and justify the proposed control strategy for the drug substance on that basis.

It ties tightly to Q3A/Q3C/Q3D (impurity origin, fate, and purge), to Q7 (GMP for the described steps), and to Q6 (the drug-substance specification that results).

Q12 — lifecycle management

Q8–Q11 describe how to develop and register a product. Q12 addresses what Q8–Q11 largely left implicit: how to change a registered product efficiently. Without it, a design space is only as useful as a regulator’s willingness to honour it, and every method tweak or site move becomes a submission.

Regional caveat. Q12 reached Step 4 in 2019, but adoption is uneven — notably, the FDA has stated that the Established Conditions and PLCM concepts are not fully compatible with the current US legal framework and are being implemented only in part. Confirm the current regional position before relying on ECs in a filing strategy.

The analytical throughline

Q8–Q12 are usually taught as manufacturing guidelines, but the analyst is inside every step:

• A CQA is only actionable if a method can measure it at the limit that matters — the link straight back to Q2 and Q6.
• The DOEs that populate a design space are analytical exercises: the response variables are assay, impurity levels, dissolution, particle size, aggregation — measured by methods whose own precision sets the resolution of the design space.
• The FMECA that ranks process parameters against CQAs and patient risk is only as good as the analytical data behind the severity and detectability scores.
• An analytical method is part of the control strategy. Changing it — a new column chemistry, a move from HPLC to a PAT model — is a managed change under Q10 and, depending on how the ECs were defined, under Q12.
• Q14 is Q8 applied to the method itself: the analytical target profile is the method’s QTPP, the method operable design region is its design space, and the method lifecycle is managed exactly like the process lifecycle here.

Why QbD?

The enhanced approach is optional and front-loads cost. The case for doing it anyway:

• Higher assurance of product quality — a process understood well enough to predict its output, not just test it.
• Cost saving and efficiency for industry and regulators — fewer investigations, fewer failed batches, less duplicated review.
• Facilitates innovation to address unmet medical needs — the framework rewards new technology instead of penalising it.
• More efficient manufacturing — fewer rejects, less rework, better yield.
• Fewer compliance actions — minimised or eliminated exposure to costly penalties and recalls.
• Better odds of first-cycle approval — a coherent development story is easier to review.
• Streamlined post-approval changes — move within the design space; use PACMPs and ECs (Q12) instead of a submission per change.
• More focused inspections — pre-approval inspection (PAI) and post-approval GMP inspection target the genuine risks the applicant has already identified.
• Continual improvement — an approved design space and a mature Q10 system make ongoing optimisation a normal activity rather than a regulatory event.

The honest counterpoint: the enhanced approach demands significant early investment in DOE, modelling, and analytical development; the regulatory reward is real but uneven across regions; and a poorly constructed design space can lock a process into commitments that are hard to unwind. QbD is a decision, not a default.

Where the analyst sits

Q1, Q2, Q3, and Q6 tell you what the numbers must mean. Q7 tells you why anyone believes them. Q8–Q12 are where the analyst helps decide which numbers the process will be built around — running the DOEs that map parameters to CQAs, owning the methods that make each CQA measurable at the limit that matters, supplying the data that a criticality analysis turns into a control strategy, and then living inside the change-management system that governs every method for the rest of the product’s life.

If the Q1 lesson is a shelf life is a hypothesis, the Q2 lesson is a measurement is a claim that must earn trust, the Q6 lesson is a specification is a numbered promise, and the Q7 lesson is none of those promises count unless the system is under control, the Q8–Q12 lesson is: quality is designed, not inspected — and the design is a documented chain of causality from process parameters to quality attributes to the patient, which someone has to build and defend. That is the A in STEAM again: the analyst is where an abstract control strategy becomes a set of real measurements.

For discussion

• A team has a list of 40 process parameters and 12 CQAs. Walk through how you would get from that to a design space and a control strategy — what does FMECA do first, what does DOE do next, and where do scale-up correlations come in?
• Q8 says a first-principles model is “desirable but not required or expected in every case.” When is a mechanistic model worth building, and when is a well-designed DOE enough on its own?
• An operating point moves from the normal operating range to another point that is still inside the approved design space. Is that a change that needs to be reported? What if it moves just outside the design space?
• Your FMECA scores a parameter low on severity but the DOE later shows it has a large, interacting effect on a CQA. What went wrong in the risk assessment, and what does Q9(R1) say about that kind of subjectivity?
• Distinguish “critical process parameter” from “critical material attribute” from “critical quality attribute” with one concrete example of each for an immediate-release tablet.
• Under Q12, an analyst wants to replace an HPLC assay with an equivalent UPLC method. Whether that needs prior approval depends on how the “established conditions” were written. Explain the two possible outcomes.
• Give the business case for QbD to a manufacturing director who sees only the upfront DOE and modelling cost. Which of the benefits are near-term and which only pay off years later?
• Q11 says steps that affect the impurity profile should normally be inside the described process. Why can’t a company simply designate a late intermediate as the “starting material” to shorten the regulated portion of the route?

Source note. ICH Q8(R2) Pharmaceutical Development reached Step 4 in August 2009 (R2 adding the Annex on the enhanced approach). ICH Q9(R1) Quality Risk Management reached Step 4 on 18 January 2023 (original Q9, November 2005). ICH Q10 Pharmaceutical Quality System reached Step 4 on 4 June 2008. ICH Q11 Development and Manufacture of Drug Substances reached Step 4 on 1 May 2012, with a Q&A on starting-material selection adopted in 2017. ICH Q12 Technical and Regulatory Considerations for Pharmaceutical Product Lifecycle Management reached Step 4 on 20 November 2019, with annexes. These five are read alongside Q7 (GMP), Q6 (specifications and real-time release), Q3 (impurity origin and control), and the modernisation pair Q13 and Q14. (Instructor: confirm the current Step 4 dates and any open ICH work-plan revisions before lecture; check the current FDA position on Q12 Established Conditions and the PLCM document, which as of the last revision was only partially adopted in the US; and note for students that Q11 is “development and manufacture of drug substances,” not “continuous validation,” and that Q12 — not Q11 — is the lifecycle-management guideline. The overview graphic is a lecture aid, not a citation: its lifecycle wheel pairs the guidelines loosely with lifecycle stages (e.g. “Launch — Q6, Q7”), which is a teaching simplification rather than anything in the ICH text.)

1.3.9 - ICH Q13 — Continuous Manufacturing

The one idea

A batch process makes a discrete quantity of material in a sequence of contained steps, and quality is judged step by step and at the end. A continuous process feeds material in and takes product out at the same time, continuously, for hours or days, with the unit operations physically linked. There is no lot sitting in a drum waiting for a release decision — so the release decision has to move onto the line, in real time.

Q13 does not require continuous manufacturing. It removes the excuse that the regulations don’t know how to review it.

Everything Q13 adds — residence time distribution, material traceability, diversion logic, the batch definition — exists to answer one question that batch manufacturing answered by construction: which material is in specification, and how do I know?

The Q13 guideline

Q13 is deliberately short on prescription and long on illustrative examples — it carries annexes working through a continuous drug-substance process, a continuous direct-compression drug-product line, integration of drug substance and drug product, and a continuous protein process. It codifies concepts that companies and the FDA Emerging Technology Program / EMA PAT Team had been negotiating case by case since about 2015.

What “continuous” actually changes

Residence time distribution (RTD) is the central new object. It is measured (tracer pulse studies) and modelled for each unit operation and for the integrated line. It tells you three things you cannot otherwise know: how long after a disturbance the affected material reaches the outlet, how much that disturbance is smeared out (a sharp input spike becomes a broad, lower bump), and therefore how much material to divert and when. Get the RTD wrong and you either ship non-conforming product or throw away good material.

Why do it — the cost–benefit rationale

This is the question a manufacturing director asks first. The honest answer is that CM front-loads cost and expertise for benefits that are partly operational and partly strategic.

The case for.

• No scale-up. Development happens at commercial scale. Fewer registration and stability batches, less tech-transfer risk, and typically faster to market — the step that historically breaks (scale-up) is deleted.
• Smaller footprint, lower capital. Equipment is bench-to-room scale; a CM line can replace a suite of large vessels and the building around them. Facilities are cheaper to build and to qualify.
• Flexible supply. Output is set by run time. You can match production to demand, ramp quickly for a launch or a shortage, and run the same line for clinical and commercial supply. This is the drug-shortage and supply-resilience argument that now drives policy interest and onshoring incentives.
• Quality built in. PAT plus real-time release means non-conforming material is diverted continuously in grams, not discovered as a failed batch and rejected in kilograms. Less waste, fewer investigations, fewer rejected lots.
• Fewer manual operations. Integrated, closed transfers mean less operator handling, lower contamination risk, and lower exposure for potent compounds.
• Greener. Often less solvent, less energy, less intermediate isolation.

The case against (the costs).

• Upfront investment in equipment, PAT instrumentation, process modelling, automation, and the data infrastructure to run and record it all.
• New expertise. Process dynamics, RTD characterisation, chemometrics / model building, and real-time process control are not traditional pharma skill sets. The Q14 analytical-development burden goes up, not down.
• Model lifecycle. Every PAT model is an asset that drifts, needs monitoring, and needs a managed-change path (Q10/Q12). Maintenance is permanent.
• Transient handling. Startup, shutdown, and disturbance recovery all produce material of uncertain quality; the diversion logic has to be designed, justified, and validated.
• Uneven regulatory reward. Q13 harmonised the science, but regional implementation and inspector familiarity still vary; a global filing can meet different expectations in different markets.
• Not always worth it. A very high-volume commodity, or a stable legacy product with a fully depreciated batch plant, may never repay the conversion.

The rule of thumb: CM pays off fastest for new molecules (capture the no-scale-up benefit from the start), for potent or hazardous chemistry (containment), and where agile supply has real value. It pays off slowest as a retrofit of a mature, high-volume, low-margin product.

Examples — products already made this way

Continuous manufacturing is not hypothetical; a growing list of approved products use it, mostly oral solid dosage forms via continuous direct compression or continuous wet granulation.

Continuous drug-substance manufacture (flow chemistry, continuous crystallisation) and continuous biologics downstream processing (periodic counter-current chromatography, single-pass tangential-flow filtration) are further behind in approvals but are exactly what Q13’s drug-substance and protein annexes address. Continuous upstream culture (perfusion) is used commercially for some proteins but sits at the edge of Q13’s stated scope.

(Instructor: confirm each approval year and the batch-vs-CM detail before lecture — several of these are widely cited but the public record is thin on process specifics, and companies rarely disclose which unit operations are continuous.)

The control strategy Q13 adds

On top of the Q8–Q12 control strategy, a CM control strategy has to specify:

• Process dynamics and RTD — characterised for each unit operation and the integrated system; the basis for traceability and diversion.
• Material traceability — the method (often a validated model) that links a deviation at any input to the affected outlet material.
• Diversion strategy — where diversion valves sit, what triggers them (a PAT result, a process-signal excursion, a feeder fault), and how the diverted quantity is calculated from the RTD with a safety margin.
• State-of-control monitoring — the PAT and process signals watched in real time, their limits, and the response to an excursion.
• Startup and shutdown — how the process reaches steady state, how long that takes, and whether any of that material can be kept.
• Process models — each classified by risk (low / medium / high impact) per Q8–Q12 and Q14, with a verification and maintenance plan.
• Equipment and system integration — data architecture, control-system reliability, and what happens on a sensor or power failure.

Batch definition and disposition

Q13 keeps the regulatory concept of a batch — it just lets you define its size by any of:

• a quantity of input or output material,
• the quantity produced in a defined time interval, or
• the quantity produced by a defined number of equipment cycles or a defined variation of a process parameter.

Whatever the definition, GMP still applies: a batch has one record, one disposition decision, and defined homogeneity. Non-conforming material identified by the control strategy is diverted in real time and does not count toward the batch; the RTD tells you exactly how much to remove on either side of the event.

The analytical shift

This is where the section’s through-line lands. In batch QC the analyst takes a sample to the lab, runs a validated method, and reports a number days later. In CM the line measures itself and the analyst’s job moves upstream and sideways:

Real-time release testing (RTRT) replaces an end-product test with a validated in-process measurement plus a model — e.g. NIR content uniformity at the tablet press instead of the compendial CU test. The specification still lists the attribute and its limit (Q6); what changes is where and when it is measured, and the validation burden goes up because you are now validating an instrument, a model, and their maintenance rather than a single wet method.

Where the analyst sits

In a CM line the analyst is not at the end — they are embedded in the process. The chemometric model that decides whether a tablet interval is released is an analytical procedure: someone developed it against a reference method, validated it under Q2(R2) and Q14, set its outlier and drift limits, and answers for it every day. The RTD study that sets the diversion volume is an analytical measurement. When a feeder hiccups at 03:00 and the line diverts 400 g, the defensibility of that number — and of every gram kept — traces back to analytical work done months earlier.

If the Q1 lesson is a shelf life is a hypothesis and the Q2 lesson is a measurement is a claim that must earn trust, the Q13 lesson is: when the measurement moves onto the line, the analyst moves with it — from running assays to owning the models and the process understanding that let a product be released the moment it is made.

For discussion

• A batch process and a continuous process both make 100 kg of tablets. For each, explain how you would answer “is all of it in specification?” — and where the analytical work happens in each case.
• Why does converting an approved batch product to CM (like Prezista) count as a manufacturing change that needs review, and what does Q13 let the company avoid that they could not before?
• A moisture spike hits the granulator inlet for 20 seconds. Walk through how the RTD determines what gets diverted. What happens to your diversion decision if the RTD model is 30 % too narrow?
• RTRT for content uniformity by NIR drops the end-product test. What stays on the specification, what moves, and why does the method-validation burden go up?
• Give the cost–benefit case for CM to a director looking at a new small-molecule NCE versus the same director looking at a 30-year-old high-volume generic. Why are the answers different?
• The NIR calibration model starts drifting six months after launch. What could cause that, how would you detect it, and what is the regulatory path to updating the model (Q12 established conditions)?
• Q13 excludes continuous upstream biologics (perfusion culture) from its scope. What is different about that step that made ICH hold it back?

Source note. ICH Q13 Continuous Manufacturing of Drug Substances and Drug Products reached Step 4 on 16 November 2022 and was adopted by the FDA and EMA in 2023. It is read with Q8–Q12 (QbD, control strategy, lifecycle management), Q2(R2) and Q14 (analytical procedures and their development), Q7 (GMP), and Q6 (specifications and real-time release). The FDA’s companion guidance Quality Considerations for Continuous Manufacturing aligns with Q13. (Instructor: confirm the Step 4 date and the current list of regions that have adopted Q13; verify each product in the examples table — approval year and the batch-vs-CM detail — against a current source, since process specifics are rarely disclosed; check whether ICH has opened Q13 follow-up work on continuous biologics upstream processing. The overview graphic on this page is AI-generated and several words in it are garbled — regenerate or hand-correct it before lecture.)

1.3.10 - ICH Q14 — Analytical Procedure Development

The one idea

An analytical procedure is a design problem, not a recipe you inherit. Before you choose a technique, you write down what the measurement has to achieve — what it measures, in what, over what range, and how well — and then you develop a procedure against that requirement and prove it meets it.

That target is the Analytical Target Profile (ATP), and it does for the method what the quality target product profile does for the product in Q8:

Q8 asks: design the process so a conforming batch is the expected outcome.

Q14 asks: design the analytical procedure so a fit-for-purpose measurement is the expected outcome.

This is the guideline that reframes the whole section. Once the method is designed against its requirements, Q2(R2) validation confirms the design rather than being the first real test of a method built by guesswork — and every downstream method (Q3 impurity methods, stability-indicating methods from Q1, PAT and real-time release methods from Q13) is developed inside this framework.

Q14 reached Step 4 on 1 November 2023, published as a package with Q2(R2). It is a new guideline — there is no predecessor Q14 — and it is deliberately enabling rather than prescriptive: it describes what good analytical development looks like and lets you choose how much of it to do.

Validation is not where method science starts

The naïve model puts all the thinking at validation:

pick a technique → develop a method → validate it → use it

Q14 inserts the science before development and keeps it running after deployment:

define the ATP → select the technique → assess risk → understand the parameters → (optionally) define an MODR → build the analytical control strategy → validate (Q2) → deploy → monitor → manage change

Two consequences:

• Development data has regulatory value. Robustness, specificity against forced-degradation products, and range-finding done during development are not throwaway experiments — they feed the Q2 validation package directly, so validation confirms rather than repeats them.
• The validated state is not frozen. The procedure is monitored and maintained for the rest of its life, and Q14 places that continued performance verification inside the lifecycle explicitly — the same lifecycle logic Q10 and Q12 apply to the process.

The challenge: a moving target

The same difficulty that shadows Q1 and Q2 is the reason Q14 exists. The synthetic route, the scale, the site, and the formulation all change as development proceeds, and each change can shift the impurity and degradation profile the method was built to see. A method developed with no explicit performance target has nothing to test a proposed change against — you re-develop and re-validate from scratch, or you hope.

When everything around the molecule is changing, design the method against a fixed statement of what it must do.

An ATP is that fixed statement. A changed procedure, an alternative technique, or a method transferred to a new site is judged the same way: does it still meet the ATP? If yes, the change is manageable; if no, it is not fit for purpose. The target, not the historical method, is the anchor.

Minimal vs. enhanced development

Q14 describes two approaches, and — like the traditional/enhanced split in Q8 — they are ends of a spectrum, not a binary. You can apply enhanced elements to the parts of a method where they earn their place and a minimal approach elsewhere.

The enhanced approach front-loads cost — risk assessments, designed experiments, modelling — and the payoff is regulatory flexibility later. It is a decision, not a default.

The Analytical Target Profile

The ATP is a prospective summary of the performance characteristics an analytical measurement must have to be fit for its intended purpose. It has two parts:

1. The intended purpose — what is measured (the analyte or attribute), in what matrix (drug substance, drug product, in-process), and over what concentration or reportable range, tied back to the CQA and the specification it supports.
2. The performance criteria — the required specificity, accuracy, precision, range, and (for trace methods) quantitation limit, each with a numerical target. Q2(R2) allows these to be expressed as a combined target measurement uncertainty where that is more natural than separate accuracy and precision limits.

The defining feature: the ATP is technique-agnostic. More than one procedure — HPLC or CE, UV or MS, chromatography or a spectroscopic model — could satisfy the same ATP. That is what makes it useful as a lifecycle anchor:

• It drives technique selection — you choose the method that can plausibly meet it.
• It sets the validation acceptance criteria for Q2 — validation demonstrates the ATP is met.
• It is the yardstick for change — an alternative or modified procedure that meets the ATP is fit for purpose; the regulator can pre-agree that meeting the ATP is the condition for a lower-category change.

An assay ATP, in outline: quantify the active moiety in the drug product over 70–130 % of nominal, with a specificity that resolves it from all known degradation products, an accuracy within ±2.0 % of the true value across the range, and an intermediate precision ≤ 2.0 % RSD. Any procedure that hits those numbers is a candidate.

Selecting the analytical technique

Q14 treats technique selection as a reasoned step, driven by:

• Analyte and sample properties — chromophore, volatility, molecular size, charge, chirality, thermal lability, concentration, matrix complexity. A protein aggregate needs SEC or AUC; a residual solvent needs headspace GC; an inorganic counter-ion needs IC.
• The purpose from the ATP — an identity test, a limit test, a quantitative impurity method at a 0.05 % threshold, and an assay make different demands.
• Prior knowledge — platform methods, compendial general chapters, the behaviour of structurally related molecules.
• Practical constraints — throughput, cost, whether the method must run in-line (Q13), transferability to QC and contract labs.

The output is a candidate procedure — a technique plus a first-draft set of conditions — that development then refines and challenges.

Knowledge and risk management — finding the parameters that matter

A chromatographic method has dozens of parameters (mobile-phase composition and pH, gradient, column chemistry and temperature, flow, injection volume, detection wavelength, sample and standard preparation, integration). Most do not meaningfully move the result; a few do. Enhanced development is the discipline of separating the two before spending experimental effort.

The tools are the same as Q9:

• Prior knowledge — what is already known about this technique and this class of molecule.
• Ishikawa / fishbone diagrams — lay out every factor that could affect each performance characteristic, grouped (method, instrument, sample, analyst, environment, materials).
• FMEA / risk ranking — score each factor for its likely effect on the ATP characteristics and the chance it varies in practice; the high-risk factors become the experimental variables.

This is Q8’s criticality analysis applied to a method: reduce a high-dimensional system to the handful of analytical procedure parameters that actually govern whether the ATP is met.

Robustness and the Method Operable Design Region

Robustness — the method’s tolerance to small, deliberate, reasonable variation in its parameters — is the connection between Q14 and the enhanced approach that Q2 keeps pointing back to:

Robustness is not something you discover at validation. It is something you establish during development — ideally by design of experiments — so the method arrives at validation with a known operable region.

The high-risk parameters from the risk assessment are varied together in a designed experiment, and the responses (resolution, tailing, recovery, RSD, reported result) are modelled against them. That model gives you:

• Proven acceptable ranges for each parameter, and the interactions between them.
• Optionally, a Method Operable Design Region (MODR) — the multivariate combination of parameter ranges within which the procedure is demonstrated to meet the ATP.

The MODR is the analytical analogue of a design space. Its regulatory meaning is the same: movement within an approved MODR is not a change and needs no regulatory action; leaving it does. A method with an MODR can be adjusted — a column from a different supplier, a slightly different gradient — without a submission, as long as the new operating point is inside the region.

Ruggedness (the USP term) is the related idea across normal rather than deliberate variation — different analysts, instruments, days, labs — and maps onto intermediate precision and reproducibility. Q14 expects development to probe both.

The Analytical Control Strategy

The MODR and the parameter understanding are for something: the analytical control strategy (ACS) — the planned set of controls, derived from the development understanding, that assures the procedure performs as intended every time it is run. It is assembled from:

SSTs are the visible, routine face of the ACS — they are how a QC analyst confirms, on the day, that the measurement system is still inside the region where the ATP was demonstrated. A well-constructed ACS is also what lets some parameters not be established conditions: if the SST reliably catches a parameter drifting out of range, that parameter may not need regulatory oversight to change.

The analytical procedure lifecycle

Q14’s third act — after “define the target” and “develop with understanding” — is manage the procedure for its useful life. A method drifts: columns are reformulated, reagent suppliers change, instruments are replaced, the impurity profile shifts, the specification tightens, better technology appears.

• Continued performance verification — trend the SST results, OOS/OOT rates, and method-related investigations; a method going out of control shows up here first, and feeds CAPA and continual improvement.
• Change management — every proposed change is assessed against the ATP and the Q9 risk process. Meeting the ATP is the bar for “still fit for purpose.”
• Established Conditions (ECs) — per Q12, the elements of the procedure that are legally binding and require a regulatory notification to change. Q14’s enhanced approach — an ATP, an MODR, a defended ACS — is what lets ECs be defined narrowly and with justification, so more of the method can be maintained under the company’s own PQS.

The regulatory flexibility this unlocks, when the science supports it:

Platform analytical procedures

Q14 formally recognises the platform analytical procedure — a well-characterised procedure applied across multiple products that share the relevant attribute (a platform CE-SDS for monoclonal-antibody purity, a platform HPLC assay for a family of small molecules, compendial-style shared methods).

The QbD principle underneath is the one from Q2 and Q8: accumulated knowledge has value and should not be discarded each time a new product enters development. A platform procedure can be developed and validated for a new product with an abbreviated package, leaning on the platform’s history, and some regions allow a platform designation that carries its own reporting benefit for changes.

Multivariate and PAT procedures

When the result comes from a model over a spectrum rather than a single peak — NIR or Raman assay, a chemometric identity model, a PAT method feeding real-time release testing — Q14 (with Q2(R2)) adds lifecycle expectations that static methods do not need:

• Model development and calibration — how the calibration set was chosen, how it spans the expected variation, how the model was built and internally validated.
• Model verification — independent demonstration that predictions meet the ATP.
• Model maintenance — the procedure for updating the model as the process and the material drift, and the change-management triggers that say when an update is a reportable change versus routine maintenance.

The thing being validated and maintained is the measurement system and the model together — including how the model’s inputs are controlled and who owns it over its life.

How Q14 changes the rest of this section

Read the section as one argument and Q14 is the keystone that was added last:

Q14 — how do we develop the procedure? (ATP, risk, MODR, ACS)

↓

Q2 — how do we demonstrate it meets the ATP? (validation confirms the design)

↓

QC — how do we know it keeps meeting it? (SST, trending, continued verification)

↓

Lifecycle (Q12) — what do we do when the world changes? (ECs, MODR, PACMP, change against the ATP)

Every method obligation elsewhere in the section now has a “designed against a target” version:

• The stability-indicating requirement from Q1 becomes a specificity criterion in the ATP, tested by design against forced-degradation products.
• The quantitation limit at or below the reporting threshold rule from Q3 becomes a performance criterion in the ATP for an impurity method.
• The method is part of the control strategy point from Q6/Q8 becomes literal: the ACS is a named sub-strategy, and changing the method is a managed change.

Where the analyst sits

Q14 is the guideline that makes the analyst a designer rather than a technician executing an SOP. Writing an ATP is a judgment call about how good the measurement has to be for the decision it supports. Running the risk assessment that picks the experimental variables is analytical chemistry plus Q9 risk thinking. Designing the robustness DOE, fitting the model, drawing the MODR, and defending the ACS to a regulator are all the analyst’s work — and then the analyst lives inside the change-management system that governs the method for the rest of the product’s life.

If the Q1 lesson is a shelf life is a hypothesis that must survive testing, the Q2 lesson is a measurement is a claim that must earn our trust, the Q6 lesson is a specification is a numbered promise, and the Q8–Q12 lesson is quality is designed, not inspected — then the Q14 lesson is: an analytical procedure is designed against a written statement of what it must do, and everything downstream — validation, transfer, change control — is checked against that statement rather than against the method’s own history. That is the A in STEAM: the analyst is where an abstract performance target becomes a real, defensible measurement.

For discussion

• Write a one-paragraph ATP for a quantitative impurity method with a 0.05 % reporting threshold and a 0.20 % specification limit. Which performance characteristics get numerical targets, and what numbers would you propose?
• Two procedures — a reversed-phase HPLC method and a CE method — both demonstrably meet the same ATP. A regulator has approved the ATP as the change criterion. What can the company now do that it could not with a conventionally validated HPLC method?
• Your risk assessment (fishbone + FMEA) scores mobile-phase pH as low-risk, but the robustness DOE shows a steep, interacting effect on the resolution of two degradants. What went wrong in the risk assessment, and what does that tell you about relying on prior knowledge?
• Distinguish “method operable design region,” “proven acceptable range,” and “established condition” with one concrete example of each for an HPLC assay.
• An MODR was established for a method and approved. QC wants to switch to a column from a different vendor. Under what circumstances is that not a reportable change — and what evidence has to exist for that to be true?
• A NIR assay predicts content from a chemometric model. List everything that is “the analytical procedure” here, and say which parts you would designate as established conditions versus maintain under the PQS.
• Q14 lets development data feed the Q2 validation package. Give two specific experiments a well-run enhanced development would produce that a validation protocol could then cite instead of repeating — and one it could not.
• A platform CE-SDS method has been used for six prior monoclonal antibodies. A reviewer asks why the development and validation package for antibody seven is abbreviated. What is the scientific justification, and where are its limits?
• When would you deliberately not establish an MODR, even though the regulatory flexibility is attractive?

Source note. ICH Q14 Analytical Procedure Development reached Step 4 on 1 November 2023 and was published as a package with Q2(R2) Validation of Analytical Procedures; the two are designed to be read together, Q14 covering development and Q2(R2) the demonstration of performance. Q14 is a new guideline with no predecessor (concept paper 2018, developed alongside the Q2 revision). It applies to drug substances and drug products, chemical and biological, and its enhanced elements — the analytical target profile, systematic risk assessment, the method operable design region, the analytical control strategy, and lifecycle management with established conditions — are optional and may be combined with a minimal approach. It connects to Q2(R2) (validation against the ATP), Q8/Q9 (QbD and risk management, of which this is the analytical instance), Q12 (established conditions and post-approval change management for analytical procedures), and Q13 (PAT and RTRT methods). (Instructor: confirm the Step 4 date and the current regional implementation status — particularly the FDA position on analytical established conditions and MODRs, which follows the same partial-adoption pattern as Q12 — against the current ICH texts before lecture. Check whether an ICH Q14 Q&A document has been issued. A one-page overview graphic for this page is still to be produced.)

1.4 - Clinical Development — Removing Uncertainty

The regulations section framed ICH as the machinery for turning scientific knowledge into demonstrated control. Clinical development is where that knowledge is generated — and the useful way to see it is not as a timeline but as a disciplined process for reducing uncertainty.

The one idea

At the start of a program there is a molecule and a hypothesis:

Will this molecule safely produce the desired effect in humans?

Nobody knows. Each stage of development exists to generate evidence, retire a specific uncertainty, and decide whether to continue. As the program advances, the number of participants grows, the information grows, the analytical toolbox gets more sophisticated, and the decisions get more consequential.

The goal is not to eliminate uncertainty. It is to reduce it enough to make a scientifically defensible decision.

The world’s most complex bioreactor: Homo sapiens

An analyst can control an instrument. A process engineer can control a reactor. The system the drug ultimately enters — the human being — cannot be controlled the same way. People differ in age, weight, genetics, metabolism, renal and hepatic function, disease state, diet, concomitant medications, immune response, and adherence.

That variability is why development proceeds stepwise: a progressively larger and more diverse population is exposed to the medicine as knowledge accumulates.

The clinical development funnel

Patient numbers are deliberately approximate — they vary substantially by disease, modality, therapeutic area, and program.

The question changes at every phase

The scale changes, but the more important shift is in the question:

• Discovery — Can this molecule work? Reducing molecular and biological uncertainty.
• Preclinical / toxicology — Is human exposure justified? Reducing toxicological uncertainty.
• Phase I — What happens when humans receive it? Establishing pharmacokinetics (what the body does to the drug), pharmacodynamics (what the drug does to the body), exposure, tolerability, and dose range.
• Phase II — Does it appear to work, and at what dose? Connecting the chain dose → exposure → response → benefit.
• Phase III — Does the benefit outweigh the risk in the intended population? Consequential, because the evidence has to support the intended patients and the eventual label.
• Phase IV — What did we not know? Approval does not mean uncertainty is gone; it means the benefit–risk relationship is acceptable for the proposed use. Real-world use then becomes an enormous additional source of evidence.

Where pharmaceutical analysis fits

This connects straight back to STEAM. Pharmaceutical analysis is one of the mechanisms by which an organization reduces uncertainty and demonstrates control. At every stage it asks the same things — the habit Lecture 1 called science:

• What do we know?
• How do we know it?
• How certain are we?
• What evidence would change the conclusion?

The analytical control strategy evolves with the molecule: characterization → analytical methods → specifications → process understanding → manufacturing controls → clinical testing → stability monitoring → commercial control strategy → post-market surveillance. It is not a static document. It is the accumulated scientific knowledge about the product and process.

Risk assessment vs. demonstration of control

Reducing risk is not the same as demonstrating control.

We think this impurity is unlikely to occur is a risk assessment. We understand how the impurity forms, we measure it with a validated method, we have set a justified specification, we control the process that creates it, and we monitor that process over time — that is demonstration of control.

The analytical scientist’s job is to convert “we think this is controlled” into “here is the evidence that it is controlled.”

Uncertainty decreases — but never reaches zero

Read the funnel as a descent in uncertainty rather than a passage of time: Discovery (many candidate molecules, high uncertainty) → Preclinical (activity and toxicology) → Phase I (human PK/PD and safety) → Phase II (dose and preliminary efficacy) → Phase III (benefit–risk and population variability) → Approval (enough evidence for a regulatory decision) → Phase IV (real-world evidence and rare events) → continuous learning.

Every experiment, analytical result, clinical observation, stability point, deviation, and batch adds information. Uncertainty falls at each step — and never reaches zero.

The connection to ICH

This is the tie back to the regulations section:

ICH is the framework for converting increasing scientific knowledge into increasing control.

• Q1–Q7 establish foundational knowledge and controls around the product — stability, method validation, impurities, specifications, GMP.
• Q8–Q12 move toward development, risk management, quality systems, process understanding, and the recognition that the product keeps evolving across its lifecycle.
• Q13 addresses new approaches to manufacturing.
• Q14 applies the same lifecycle and risk-based philosophy directly to analytical procedures.

So the story of the whole course, in one line:

science → evidence → reduced uncertainty → control → regulatory confidence → patient trust

— and pharmaceutical analysis is present at every link in that chain.

For discussion

• Drug development is not a march toward certainty; it is a disciplined process for reducing it. What does that change about how you’d design a study?
• The weak question is “did the test pass?” The better one is “what did we learn, how much uncertainty did we remove, and is the remaining uncertainty acceptable for the decision in front of us?” Apply that to a single failing stability time point.
• Give an example of something that is risk-assessed but not demonstrated as controlled, and describe the analytical work that would close the gap.

1.5 - Quality Control — Assuring Quality Across the Supply Chain

The clinical development section framed development as reducing uncertainty until a program can be approved — a one-time argument built over years. Quality control is the other half: the function that demonstrates control on every batch, every day, for as long as the product is on the market.

The one idea

Quality control is how “demonstration of control” stops being a project and becomes routine. Raw materials, in-process intermediates, and finished product are each tested against a specification before they are allowed to move to the next step. Quality is not produced by the final test — it is assured by knowledge accumulated across the entire process and enforced at every point where a decision is made.

Quality can’t be tested into a product

You cannot inspect quality into a product; it has to be built in.

Final-product testing alone is a weak guarantee. You test a handful of units out of a batch of hundreds of thousands; statistics limit what that sample can tell you, and by the time the product is finished, a problem is expensive and often unfixable. Staged controls — each one close to where a risk actually arises — are what make the finished-product result confirmatory rather than the first time anyone looks.

Controls across the supply chain

QC methods are developed and deployed at every stage where material changes hands or changes state:

Every “what is tested” column traces back to the four questions from Section 2 — identity, strength, purity, bioavailability — asked at a different point in the process.

Method development and deployment

A QC method has a lifecycle, and “deployment” is the part people underestimate:

develop → validate → transfer / deploy → verify → monitor → maintain

• Develop against a defined purpose — an analytical target profile (see Q14).
• Validate the performance characteristics (Q2).
• Transfer / deploy — the method has to give the same answer in every lab that will run it: the developer’s lab, multiple manufacturing sites, contract manufacturers and testing labs, possibly on different instruments. A method that only works where it was born is not deployed.
• Verify it performs in the receiving lab; monitor it over time; maintain or revise it as knowledge and technology change.

The scientific + regulatory approach

Two lenses, both of which must be satisfied:

• Scientific — understand the process well enough to know what to control and where. Which impurities can form, at which step, under what conditions; which attributes affect performance in the patient.
• Regulatory — the controls, methods, and specifications are the ones agreed with the agency and written into the filing (specifications, GMP for APIs). You do not get to change them unilaterally.

Combining knowledge from across the process is what lets quality be assured rather than merely hoped for. And because the regulations — ICH, GMP, the pharmacopeias — apply to every company, they raise the floor for the whole industry: a patient can trust any approved medicine, not just the ones from a manufacturer they happen to know.

Partnerships — the part that isn’t a science problem

Building a QC and control strategy is a complex, multivariate problem, and only some of it is analytical chemistry. It depends on interrelationships between sectors:

• Internal — discovery, development, clinical, manufacturing, and quality assurance, each with its own timeline and priorities.
• External — the FDA, EMA and other agencies; raw-material suppliers; contract manufacturers and testing labs.

Some of the problems in that web are scientific or engineering problems. Others are corporate policy, resourcing, and regulation. A control strategy only works if the partnerships across all of those sectors work — which means the analytical scientist has to be able to operate in both registers.

Quality, speed, cost

These are usually presented as a trade-off. They stop being one when knowledge and control are built in early — the core promise of quality by design (Q8–Q12):

• Quality is driven by the ICH development standards. Leaning on an agreed international framework instead of reinventing one keeps development lean — effort goes into the product, not into arguing about the rules.
• Speed comes from analytical automation and informatics: efficient, reliable reporting and the ability to run advanced multivariate analysis on the data you already collect — and, increasingly, from moving the measurement out of the lab and onto the line (lab automation and PAT).
• Cost falls out of the other two. Get quality and speed, and cost drops — for the company and, ultimately, for the patient.

For discussion

• Why is finished-product testing a weak guarantee of quality on its own? What makes a staged set of controls stronger than a single final test with tighter limits?
• Name a QC problem on a program you know that is really a corporate-policy or partnership problem, not a science problem. What would the analytical scientist need to do about it?
• If you could add exactly one new in-process control anywhere in a supply chain, how would you decide where it retires the most uncertainty?

1.6 - Lab Automation and Process Analytical Technology — Moving the Measurement to the Line

The Quality Control section described QC as the function that demonstrates control on every batch — and, traditionally, it does that by pulling a sample and carrying it to a laboratory. This section is about what happens when the measurement stops travelling to the lab: when it moves next to the process, then onto it, and finally into the control loop that runs it.

The one idea

Lab automation is usually pitched as a set of technologies — robots, LIMS, NIR probes, machine vision. That framing hides the more useful question, which is about where the measurement happens and what the measurement is allowed to do:

Automating the QC lab makes the answer arrive faster. Moving the measurement onto the line changes what the answer is for.

A result that comes back from the lab two days later can only be information — evidence for a release decision. A result that comes from a probe in the powder stream can be information, or it can be an input to a controller that changes the process while it runs. The interesting transitions in this section are the ones where a measurement crosses from one role to the other.

The automation maturity ladder

Rather than a dozen unrelated technologies, read pharmaceutical measurement as a ladder. Each rung moves the measurement closer to the process and gives it more authority.

The rungs are not a maturity contest. A single product routinely sits on several at once — an at-line hardness tester, an in-line NIR blend monitor, and a manual dissolution test in the lab — one rung per attribute, chosen by what the attribute is worth and how well it can be measured where you want to measure it.

At-line, on-line, in-line

The three middle rungs turn on a vocabulary worth fixing precisely (the terms come from PAT practice and ASTM E2363):

Each step tightens the link between measurement and process and removes a place where the sample can change, be swapped, or be lost. It also moves variability into the measurement system — the analytical procedure is a measurement system, and an in-line probe adds the process environment, the probe window, and a calibration model to the list of things that can move the number.

A worked example: the tablet press

One scenario carries most of the ideas in this section.

Every 15 minutes an operator collects 10 tablets from a running press, carries them to an at-line tester, and measures weight, thickness, and hardness. The results are typed into a batch record. If a value drifts, the operator adjusts the press.

Conversation 1 — what could we automate? The quick answer is “the tester.” Push further. Why collect the tablets by hand? Why every 15 minutes and not continuously? Why 10 and not 3, or 100? Why does a person transcribe a number a machine already produced? Each “why” is a design decision that was made once and rarely revisited.

Conversation 2 — divert the tablets automatically. Now the press feeds tablets straight into the tester on a schedule. Nothing about the measurement changed, but the quality system did: the sampling is now defined by equipment, the data path is electronic end to end, and the record is created without a human hand. What has to be qualified that wasn’t before?

Conversation 3 — the tester sees weight rising. It is trending toward the upper limit. Should it raise an alarm for the operator, or adjust the press’s fill depth itself? The moment the measurement is allowed to move an actuator, it has stopped being a test and become a control — and the validation, the failure modes, and the regulatory description all change.

Conversation 4 — the press predicts tablet properties from compression force. The press already measures compression force on every tablet; a model turns that into a predicted weight and hardness, continuously, for 100 % of the batch. Do we still need to physically test tablets? How many? What evidence would you want before reducing or removing the at-line test — and what stays on the specification regardless?

That single example reaches automation, PAT, sampling theory, control strategy, model validation, process capability, data integrity, and real-time release — without opening with a regulation.

Where did the QC lab go?

Set the same product in 1985: manufacture the batch → pull samples → send them to QC → test → wait → release. Every critical quality attribute is measured once, at the end, on a few units, days after the material was made.

Now walk the measurement toward the process:

Lab → At-line → On-line → In-line → Feedback control → Real-time release

At the end of that walk the finished-product test is gone, replaced by a validated in-process measurement plus a process model — real-time release testing (RTRT). The provocative version of the question:

If we can measure the critical quality attribute continuously while we manufacture the product, why are we taking thirty tablets to a laboratory afterward to prove what we already know?

The answer is not simply “we shouldn’t.” That question is where the interesting pharmaceutical-quality discussion starts: measurement uncertainty, sample representativeness, whether the model is validated across the range the process will actually explore, what happens when a sensor fails, calibration and model drift, the depth of process understanding behind the model, the commitments already written into the filing, and the difference between a specification limit and a control limit.

A catalogue of pharmaceutical examples

Each of these is a conversation of its own — the same push from “automate the test” toward “does the test still need to exist.”

What has to be true before the test can move

Moving a measurement down the ladder is not free. Before an in-process measurement can reduce or replace a lab test, the evidence has to carry more weight, not less:

• Representativeness. A probe sees a small, fixed volume of a moving stream. Does that volume represent the batch the way a thief sample or a composite does?
• A validated model, not just an instrument. An NIR or Raman result is a model over a spectrum, and the thing being validated is the measurement system and the model together — how it was calibrated, how the calibration set spans the expected variation, how predictions are checked against a reference method.
• A model lifecycle. Feed material drifts, the process ages, the probe window fouls. The model needs monitoring, a recalibration trigger, and a managed-change path — the analytical procedure lifecycle Q14 describes, with a method operable design region and established conditions deciding what counts as a reportable change.
• Failure modes. What does the system do when the sensor fails, the model flags an outlier, or the process moves outside the calibration range? A lab test that cannot run just delays release; a control loop that misreads can move the process the wrong way.
• Process understanding. RTRT rests on a demonstrated link from process parameters to the quality attribute — the design space and control strategy from Q8. The measurement is only half the argument.
• Specification vs. control limits. The specification limit does not move when the measurement does — the attribute and its acceptance criterion stay on the filing. What changes is where and when it is measured, and the validation burden goes up to match.

Where the analyst sits

On the manual rung the analyst runs the sample. By the middle of the ladder the analyst reviews exceptions instead of results. By the top, the analyst does not run anything routine — they own the model and the monitoring: the calibration, the reference-method correlation, the drift limits, the revalidation after a raw-material change, and the answer to “why should we believe this number” when no one pulled a sample.

If the Q2 lesson is a measurement is a claim that must earn trust, and the Quality Control lesson is quality is assured by accumulated knowledge, not produced by the final test, the automation lesson is: when the measurement moves onto the line, the analyst moves with it — from producing the number to owning the system and the model that produce it, and proving both stay fit for purpose while the process drifts underneath them. Section 1 called a method a hypothesis about a molecule; on an in-line probe that hypothesis is being tested a thousand times an hour, and someone has to be accountable for it. That is the A in STEAM again.

For discussion

• The tablet tester detects rising weight. Should it alert an operator or adjust the press itself? Name exactly what changes in the quality system the moment a measurement is allowed to move an actuator.
• A line runs in-line NIR content uniformity and predicts every tablet. What evidence would you need before you stop pulling 30 tablets for the lab test — and what stays on the specification either way?
• Classify each as testing, monitoring, or control, and name the quality-system obligation each carries: an at-line hardness tester; a press that trends compression force; a press that adjusts fill depth from that force.
• Why every 15 minutes? Why 10 tablets? Why does a person transcribe the result? Take one manual QC step you know and push on every part of it.
• The NIR model that has run your blend-uniformity release for two years starts drifting against the reference HPLC. Walk through what you do — and whether that is a reportable change under Q14 / Q12.
• Automated microbiology — plate handling, rapid methods, environmental monitoring — is a harder automation problem than an automated chemistry lab. Why?
• An in-line Raman endpoint says a reaction is complete; the analyst’s HPLC 30 minutes later disagrees by a hair. Which do you believe, and what would you have had to establish beforehand to answer that quickly?
• Pick one row from the catalogue above and write the four-step “tablet press” conversation for it.

Source note. This section is a teaching framing rather than a single guideline. Its anchors: the FDA’s PAT guidance (PAT — A Framework for Innovative Pharmaceutical Development, Manufacturing, and Quality Assurance, 2004), which introduced the at-line / on-line / in-line vocabulary and the “process understanding” argument; ASTM E2363 for the PAT terminology; and the ICH pages this course already covers — Q8–Q12 (design space, control strategy, established conditions), Q13 (real-time release testing, diversion), Q14 (analytical QbD, the method operable design region, model lifecycle), and Q2(R2) (multivariate procedures). (Instructor: confirm the current status of the FDA PAT guidance, and note that “real-time release testing” is the current ICH term, not “real-time release” or “parametric release”; the maturity-ladder levels here are a teaching device, not a standard scheme.)

1.7 - Knowledge Management — From Data to Wisdom, and the Recipe That Ties It Together

The lab automation section ended with the analyst owning a model instead of running a sample. Automation gave the laboratory horsepower — hardware and software that generate results faster than any person can read them. This section is about the other half of that bargain: once you can make data that quickly, what turns it into something worth keeping?

The one idea

Automation is very good at producing data. It is completely indifferent to whether that data ever becomes knowledge. Left alone, a modern lab generates terabytes that are never looked at twice.

Your job as a scientist is to publish the right data, in the right form, with the right context, at the right time — so that it can be transformed into information, and then into durable knowledge about your product.

Knowledge management is the discipline that makes that transformation deliberate instead of accidental. It is not an IT function bolted on at the end; it is a design choice made every time someone decides what to measure, how to record it, and how to describe it.

The DIKW pyramid

The useful mental model is the data → information → knowledge → wisdom hierarchy (often attributed to Russell Ackoff’s 1989 “From Data to Wisdom”). Each level is built from the one below it by adding context, then pattern, then judgement.

Two things fall out of the table. First, the jump from data to information is where most knowledge is lost — a number with no method, no units, and no provenance can never be promoted. Second, knowledge is what lets you explain the past and wisdom is what lets you predict the future; both are the output of a model, which is why the rest of this section is largely about models.

Every scientist is a data scientist

There is a stronger claim behind the pyramid:

I have never met a scientist who is not a data scientist. I have met data scientists who are not scientists.

The skills that used to belong to a specialist — structuring data so it can be queried, keeping an analysis reproducible, versioning a method, sharing it so someone else can run it — are now part of doing pharmaceutical analysis at all. The Turing Way is a good, free handbook for exactly this: reproducible, ethical, collaborative data science. Its commitments line up point-for-point with the definition of science from Section 1 — open exchange of data and procedures, and results that hold up when someone else re-runs them.

The practical version for this course: a result you cannot reproduce, or a method you cannot hand to another lab, has not finished being science — the same lesson as method transfer and deployment in Quality Control, seen from the data side.

Formal and informal models

A model is something a community creates, amends, and interprets in order to refine its shared knowledge of some area of interest. Models explain past phenomena (knowledge) and predict future ones (wisdom). They come in two kinds, and the difference matters enormously.

Legislation is the cleanest example of an informal model: natural language, read in context, with loopholes that are easy to create and hard to test. Great science runs the other way. It is built on formal models because they can be tested cheaply and communicated without ambiguity.

The goal of knowledge management in a pharmaceutical organisation is therefore not just to store knowledge but to push it from informal toward formal — from “the operators know the dryer runs hot in summer” to a moisture model with a control limit. That progression is the same thing earlier sections called demonstration of control: moving from we think this is unlikely to here is the model that says so.

What is a database, really?

A database is, at its plainest, an organised collection of tabulated data. The history is worth a minute because each era solved a problem the last one exposed:

Follow that last row to its conclusion and you arrive at self-describing data: a record that carries its own schema, units, and context, so it means the same thing to whoever opens it, whenever they open it. Which sounds a great deal like a good laboratory notebook — a self-contained, self-explaining account of what was done and what was found. Achieving that at scale, digitally, is genuinely hard, and it is why the industry keeps building bigger containers for data.

Databases, warehouses, lakes, meshes

Each step widens what you are willing to integrate:

Underneath all of them is a joke with a point in it: most data integration is still homo sapiens integration — a scientist opening three systems in three browser tabs and reconciling them by hand. Warehouses and lakes are attempts to do that same reconciliation automatically and at scale. The value of a warehouse is not storage; it is that you can pull diverse data back out and build mathematical models across it — models of your product that no single source could support.

Automation is the engine that makes this run, at three points at once:

1. Generate the data — instruments, PAT probes, automated workflows.
2. Organise the data — capture it with its context, into a structure that can be queried.
3. Analyse and report the data — multivariate analysis, models, and the reports that go to reviewers and regulators.

Automate only step 1 and you have made the integration problem worse. The goal across all three is the same as before: move from informal to formal models, and use them to demonstrate scientific understanding of the product.

The recipe as the informational framework — S88/S95

Everything above needs a skeleton to hang on — a shared way of saying what step of what process produced this number, on what equipment, for what material. The ISA-88 / ISA-95 standards (also IEC 61512 and IEC 62264) provide exactly that.

• S88 is a model for batch processes: a recipe hierarchy (general → site → master → control recipe) built from a procedural model (procedure → unit procedure → operation → phase) that runs on a physical model (site → area → process cell → unit → equipment / control module).
• S95 connects that plant-floor model up to the enterprise — scheduling, materials, quality, the business systems.

The insight worth carrying out of this course: at the end of the day you are running a recipe. A synthesis step is a recipe. A granulation is a recipe. And an analytical method is also a recipe — prepare the mobile phase, condition the column, inject, integrate, calculate, compare to specification. Describing the QC method in the same recipe framework as the process it tests means the data from both can be linked, queried, and modelled together, instead of living in separate worlds that a human has to reconcile.

This is the subject of a body of work on the “MadSciGuys” site (content on GitHub), including a recipe-based approach to data aggregation (Poulsen & Fermier) and a paper with Rutgers on linking laboratory and plant data (Fermier & Higgins, 2018), plus a “paper on glass” treatment of digital process data capture aligned to the S88/S95 ontology — digitising the operator’s familiar form while, underneath it, capturing semantic meaning, relationships, and process context rather than just values.

The future: linked data and semantics

The direction of travel is toward linked data — data that carries not just its structure but its meaning, expressed in a shared vocabulary so that machines can combine datasets they were never designed to combine. In practice that means RDF and ontologies (the Semantic Web idea), the FAIR principles (Findable, Accessible, Interoperable, Reusable), and, in analytical chemistry specifically, standards like AnIML and the Allotrope framework for instrument data, and SiLA 2 for instrument control.

Why it matters here:

• Method sharing. A method expressed semantically can be understood — and re-run — by a lab that has never spoken to yours.
• Future-proofing. Data described in a shared, open vocabulary is still interpretable when the instrument, the software, and the people who generated it are all gone. Data locked in a vendor format is not.
• Model building at scale. Linked data is what lets you build models across the whole product lifecycle instead of one study at a time.

Where the analyst sits

The Q2 lesson was a measurement is a claim that must earn trust. The Quality Control lesson was quality is assured by accumulated knowledge, not the final test. The automation lesson was when the measurement moves onto the line, the analyst moves with it. Knowledge management is where those converge:

The analyst’s job now includes owning the knowledge, not just the number — deciding what context a result must carry to be worth keeping, structuring data so it can feed a model, pushing the group’s understanding from informal toward formal, and keeping methods described well enough to share and to survive. Section 1 called a method a hypothesis about a molecule; knowledge management is how a laboratory accumulates the answers to all those hypotheses into something coherent enough to call understanding of a product. That is the A in STEAM — judgement, interpretation, and communication — operating on the whole data estate, not one chromatogram.

For discussion

• Take a result you produced recently. Write down every piece of context it needs — units, method, sample, equipment, analyst, date, raw data location — to be promoted from data to information. How much of that is captured automatically today, and how much by a person?
• Give an example from your own work of an informal model the group relies on. What would it take to make it a formal one, and what would you gain?
• “An analytical method is a recipe.” Take a method you run and sketch it in S88 terms — procedure, operations, phases. Does anything about the method look different when you write it that way?
• Legislation is offered here as the archetypal informal model, full of loopholes and hard to test. Where in a control strategy or a specification have you seen the same failure mode — language that different readers interpret differently?
• Your lab has a data lake with ten years of raw instrument files in it. What has to be true about how those files were captured for the lake to actually support model building — and what happens if it isn’t?
• Pick one: RDF/ontologies, FAIR, AnIML/Allotrope, SiLA. What problem does it solve that a well-designed relational database does not?
• Automation lets you generate, organise, and analyse. If a program automated only the “generate” step, would its knowledge management get better or worse? Why?

Source note. This section is a teaching framing, not a single guideline. Its anchors: the DIKW / “data–information–knowledge–wisdom” hierarchy commonly traced to Russell Ackoff’s 1989 address “From Data to Wisdom” (the attribution and the exact ladder are both debated — present it as a lens, not a law); E. F. Codd, “A Relational Model of Data for Large Shared Data Banks” (Communications of the ACM, 1970), and Codd’s later OLAP paper (1993); The Turing Way handbook for reproducible data science; the FAIR data principles (Wilkinson et al., Scientific Data, 2016); ANSI/ISA-88 and ISA-95 (IEC 61512 / IEC 62264) for the recipe and enterprise-integration models; and the analytical-data standards AnIML, Allotrope, and SiLA 2. The MadSciGuys references — a recipe-based aggregation approach (Poulsen & Fermier), a lab-to-plant data paper with Rutgers (Fermier & Higgins, 2018), and an S88/S95 “paper on glass” treatment — are at github.com/AdamFermier/madsciguys; the PDFs (poulsen-fermier-1.pdf and the Rutgers paper) are in that repository. (Instructor: produce the section infographic as image.png; confirm the current ISA-88/95 edition numbers and the DIKW attribution before lecture; decide whether to demo AnIML or Allotrope live.)

1.8 - The Cost of Development — and Why It Ends Up in the Price of the Drug

The knowledge management section ended with the analyst owning a data estate and the models built on it. This section asks the question that sits underneath every other decision in the course and rarely gets said out loud: all of this costs money, someone has to pay it back, and the way it gets paid back is the price on the box.

The one idea

A medicine is priced, during the years it is protected by patent, to recover the cost of developing it — and the cost of every candidate that failed along the way, and the cost of capital tied up for a decade while none of it earned anything. After the patent expires, generic competition collapses the price toward the cost of manufacture, which for most small molecules is small. So the entire economic argument for a new drug has to close inside a window of roughly ten to fifteen years of market exclusivity.

Every dollar spent inefficiently in development is a dollar that has to be recouped from patients, or a dollar that makes the next program not worth starting.

That is why “spend wisely” is not a budget slogan. It is a patient-access argument and a pipeline-survival argument at the same time — and the analytical scientist, who designs experiments and sets the evidence bar, is one of the people spending the money.

What a new medicine costs to develop

There is no single number, and the honest thing to teach is the range and why it is so wide.

Three things drive the spread: attrition (how many failures each success has to carry), the cost of capital (whether you charge the program for the decade its money was locked up), and therapeutic area (an oncology program and a dermatology program are not the same bet). Whichever figure you use, two features are stable — most of the number is clinical, and a large fraction of it is failure.

Where the money goes

Split the R&D spend by activity and the shape is consistent across studies:

The teaching deck this section is built on puts it as discovery and development together accounting for over 60 % of the spend, with clinical affairs alone around a third to a half of the total R&D budget. The exact percentages move with how you draw the lines — but the message is the one to keep: the expensive part is not inventing the molecule, it is proving it works and is safe, and getting it into a form that survives a supply chain.

Why clinical development dominates — and why recruitment is the worst of it

Inside a clinical trial, the costs stack up roughly like this: study sites and per-patient payments, patient recruitment and retention, clinical monitoring, data management, regulatory and safety reporting, and drug supply. Per-patient costs run from tens of thousands of dollars in Phase I to well over $40,000 in a large Phase III, and a single pivotal trial can cost $100–300 million.

Patient recruitment consumes more time and more money than any other single activity in a trial. The numbers usually quoted:

• Around 80 % of trials fail to meet their original enrolment timeline; recruitment is the leading cause of trial delay.
• The average cost to enrol one participant is on the order of $6,500, and replacing a drop-out can cost several times that.
• A day of delay to a launch is worth anywhere from roughly $0.6 million to $8 million in lost patent-protected sales, depending on the drug — which means the hidden cost of slow recruitment usually dwarfs the direct cost.

Two operational consequences follow, and both are places where analysis and data feed the economics:

• Budgeting and performance assessment. Recruitment is not a line you set once. Enrolment rate, screen-fail rate, and site productivity should be read while the trial runs and fed straight into mid-trial decisions — reallocate to the sites that are working, open new ones, close dead ones, or stop early. A trial that reports its recruitment metrics only at the end has wasted the information.
• Clinical operations structure and workflow. How the trial is organised — central vs. site-based tasks, monitoring model, how data flows from the clinic to the database, how the drug supply is planned — determines whether those mid-trial decisions can actually be made in time. This is the same deployment problem the Quality Control section raised for methods, seen at trial scale.

The cost of failure is the point, not a footnote

Roughly one in ten molecules that enters Phase I ever reaches the market; in oncology it is closer to one in twenty. Every approved drug is therefore paying for something like nine to nineteen that failed — often after a Phase II or Phase III that cost hundreds of millions. When a study says a drug “cost $2.6 billion,” most of that figure is not the drug on the box; it is the graveyard behind it, plus interest.

This is the direct link back to clinical development as the removal of uncertainty: the cheapest failure is the early one. Anything that kills a bad molecule in preclinical or Phase I instead of Phase III — better toxicology, a sharper biomarker, a cleaner exposure–response argument — moves cost out of the most expensive bucket. Analysis that retires uncertainty early is analysis that saves the most money.

Why development keeps getting harder

The pressure on development comes from three directions at once, and they pull against each other.

Scientific demands — development is a materials-science problem

Discovery hands over a biological lead: a molecule that hits the target. Development then has to turn that molecule into something that can be made at tonne scale, stored for two years, shipped through a hot warehouse, and dissolved reproducibly in a patient. That is a materials-science problem — and it is where the analytical work concentrates:

• Solid-state form — which salt, which polymorph, crystalline vs. amorphous. The form sets solubility, dissolution, stability, and whether the powder can even be compressed.
• Stability — chemical and physical degradation over the product’s shelf life, under real and stressed conditions (ICH Q1).
• Formulation and process — getting a reproducible, manufacturable drug product with the right exposure.

The cautionary tale is ritonavir: an unexpected, more stable polymorph appeared after launch in 1998, the marketed capsule could no longer be made, and the product had to be pulled and reformulated at enormous cost. The form work that would have found it was cheap; finding it in the market was not.

Business realities

• More compounds pushed into development to feed the pipeline.
• Shorter timelines — every month of delay is patent-protected revenue lost.
• Flat or shrinking headcount — the same or fewer scientists absorbing the extra throughput.

More work, less time, no more people. That arithmetic only closes through better methods, automation, and reuse of knowledge — which is the entire case made in the lab automation and PAT and knowledge management sections.

Regulatory compliance and expectations

All of it has to be done under GxP — Good Laboratory Practice for the safety studies, Good Manufacturing Practice for anything a human will take, Good Clinical Practice for the trials. GxP is not optional overhead; it is what makes the data usable in a filing. But the expectation keeps rising — more characterisation, tighter data integrity, lifecycle thinking (Q8–Q12, Q14) — and every increment has a cost that lands in the same budget.

What “spend wisely” asks of the analyst

Put the three pressures together and the response is not “work harder.” It is the set of ideas this course has been building:

• Front-load knowledge. Quality by design (Q8–Q12): understand the molecule, the form, and the process early, when experiments are cheap, so late-stage rework and post-approval investigations don’t happen. The ritonavir money was spent in the wrong phase.
• Right-size the method and the specification. A phase-appropriate method: fit for the decision in front of you, not gold-plated for a decision three years away. A specification justified by data, not by reflex tightening — every unjustified limit is a future batch failure and an investigation.
• Automate the repetitive, model the rest. Move the measurement toward the line where it pays to (Section 6); spend the freed time on the experiments that actually retire uncertainty.
• Capture knowledge so it is reused, not regenerated (Section 7). Re-running an experiment because the first result wasn’t recorded properly is pure waste.
• Kill bad molecules early. The most valuable analytical result is often the one that ends a program in Phase I instead of Phase III.

We all must do our share to spend wisely — because the money is not abstract. It is recouped from patients, or it is the reason the next program doesn’t get funded.

Where the analyst sits

The Q2 lesson was a measurement is a claim that must earn trust. This section adds the constraint that trust is not free: every measurement has a cost, a duration, and an opportunity cost, and the analytical scientist is the person who decides how much evidence is enough for the decision at hand. Judging “is this result worth what it cost, and is the remaining uncertainty acceptable for this decision?” — rather than reflexively generating more data — is the A in STEAM again: judgement and design, now applied to the budget. Section 1 called a method a hypothesis about a molecule; this section adds that a hypothesis test costs money, and a good scientist designs the cheapest test that still answers the question.

For discussion

• A drug is quoted at “$2.6 billion to develop.” Break that number down for a non-scientist: how much is the molecule itself, how much is failures, how much is the cost of capital?
• Your Phase III is enrolling at 60 % of plan at the halfway point. What analytical or clinical data would you want in front of you to decide between adding sites, changing the protocol, and stopping?
• Give an example of an analytical activity that is cheap in early development and ruinously expensive if deferred to post-approval. What would you have done differently?
• “The most valuable result is the one that kills the program early.” Argue the other side — when is generating a killing result too aggressive?
• Development faces more compounds, shorter timelines, and flat staffing. Pick one lever from the earlier sections (QbD, automation, PAT, knowledge management) and estimate, qualitatively, where it actually saves money.
• A colleague proposes tightening an impurity specification “to be safe.” Walk through the cost of that decision over the product’s commercial life.

Source note. This section is an economic framing, not a single guideline, and the figures are ranges rather than facts — present them that way. Anchors: J. A. DiMasi, H. G. Grabowski & R. W. Hansen, “Innovation in the pharmaceutical industry: New estimates of R&D costs” (Journal of Health Economics, 2016) and the associated Tufts CSDD briefing — the ~$2.6 billion capitalised figure, and the preclinical/clinical split (preclinical ≈ 32 % of out-of-pocket, ≈ 42 % of capitalised cost); O. J. Wouters, M. McKee & J. Luyten, “Estimated Research and Development Investment Needed to Bring a New Medicine to Market, 2009–2018” (JAMA, 2020) — median ~$985 million, mean ~$1.3 billion, and an explicit critique of the higher estimates; A. Sertkaya et al., “Costs of Drug Development and Research and Development Intensity in the US, 2000–2018” (JAMA Network Open, 2024) — how much of the per-drug figure is attributable to failures; the U.S. Congressional Budget Office, “Research and Development in the Pharmaceutical Industry” (2021) — an independent overview of R&D spend, pricing, and how patents and exclusivity let costs be recouped; A. Sertkaya et al., “Examination of Clinical Trial Costs and Barriers for Drug Development” (ASPE / HHS, 2014) — per-patient and per-phase clinical trial costs and the recruitment barrier; C. H. Wong, K. W. Siah & A. W. Lo, “Estimation of clinical trial success rates and related parameters” (Biostatistics, 2019) and the BIO/Informa “Clinical Development Success Rates” reports — the ~10 % Phase I-to-approval figure; and, for the ritonavir polymorph episode, S. R. Chemburkar et al. (Organic Process Research & Development, 2000) and J. Bauer et al. (Pharmaceutical Research, 2001). Patient-recruitment operational statistics (80 % of trials delayed, ~$6,500/patient, up to ~$8 million/day of delay) are widely cited across the CRO and clinical-operations literature; see the patient recruitment overview for entry points. (Instructor: produce the section infographic as image.png. Decide which single cost figure to lead with in lecture and stick to it — the range is the teaching point, but students want one number. The “~37 % on clinical affairs” and “> 60 % on discovery + development” figures come from the internal teaching deck; reconcile them with whichever published breakdown you assign, and note that the percentages move with definitions.)

2 - Week 2 — Sep 21: Analytical Methods Development, the Modality Landscape, and Risk

(Lecture 2.) Week 1 argued that a method is a hypothesis about a molecule and that the discipline is built to revise it when the evidence says so. This week asks three questions that sit underneath everything else in the course: how does an analytical method actually get developed and regulated, what is actually being made, and how much evidence is enough? The third question is risk — assessed explicitly, not by reflex — and it’s the one this week is named for; the first two are the ground it stands on.

The one idea

A control strategy cannot be designed in the abstract — it is designed against a specific molecule, made by a specific process, measured by a method developed and validated for that purpose, with its own population of things that can go wrong. Before the course can teach how you measure something and how you control it, it has to teach what you are holding and how the method that measures it came to exist — then it can teach how much evidence is enough.

Analytical methods development and regulation

Every technique week for the rest of the term assumes a method already exists. This section is the one-page version of how it got there, so that assumption is never invisible:

The regulatory expectation — captured in ICH Q14 — is that a method is designed against its validation targets and its analytical target profile from the start, not developed first and validated as an afterthought. Every worked method later in the course (chromatography, mass spec, spectroscopy) follows this same lifecycle; this is the only week that names it explicitly end to end.

What’s actually being made, and how much evidence is enough

Two more questions sit underneath every technique week: what is actually being made, and how much evidence is enough? Both get their own full treatment this week, in their own sections:

• The modality landscape — a small molecule, a large molecule / biologic, and an advanced therapy compared side by side (size, manufacture, what “the molecule” even is, what purity means), plus why small molecule dominates entry-level hiring.
• Quality risk management — the ICH Q9(R1) framework, the risk-management toolbox (FMEA, FTA, HACCP, HAZOP, risk ranking and filtering, Ishikawa/PHA, each with its own full walkthrough), and how a risk assessment becomes a control strategy.

The risk-homework thread

Three of the technique weeks later in the term — atomic spectroscopy, molecular spectroscopy, mass spectrometry — carry a risk-assessment assignment: take the method taught that week and build a method FMEA against a stated analytical target profile. The point is repetition: by the third checkpoint, scoring detectability should be a habit.

Where the analyst sits

Nobody hands you the modality landscape or the method-development lifecycle on day one — you infer them from the job posting, the SOPs on the shelf, and the first specification you’re asked to read. And in almost every method FMEA, the analyst is the only person in the room who knows the true detection score. A project manager can estimate severity; a process chemist can estimate occurrence; but whether the current controls would actually catch a failed extraction, a mis-integrated peak, a drifting calibration, or a co-eluting impurity before it reached a release decision is analytical knowledge, and if the analyst rounds it toward “we’d probably catch it,” the whole assessment is quietly wrong.

This is the STEAM “A” again: judgment about what the evidence can and cannot rule out. The refrain for the term — science → evidence → reduced uncertainty → control → regulatory confidence → patient trust — runs through method development above, and through the modality landscape and risk management in the sections that follow.

On the job

• Read a job posting for an “Analytical Chemist I” or “QC Analyst” role and identify which column of the modality table it’s written against — the instrument list in the posting almost always gives it away.
• Small molecule dominates entry-level hiring for a structural reason: there are simply more marketed small-molecule products, more generic and CDMO manufacturing sites, and more routine QC testing volume than for biologics or advanced therapies, which remain comparatively low-volume, specialised, and concentrated at fewer sites.
• You will fill out, or be asked to sign off on, an FMEA far more often than you will build one from scratch — learn to read one critically before you learn to write one.
• “Detection” is the column you’ll be asked about most, because you’re usually the only person in the room who actually knows what the running method would or wouldn’t catch. Don’t round it up to be agreeable.
• A risk assessment that predates you (written by someone who’s since left) is still binding until it’s formally revisited — know how to find it, read it, and flag when it no longer matches reality.

For discussion

• A job posting lists “HPLC, dissolution, ICP-MS” as required instruments. Which column of the landscape table is this role almost certainly in?
• Why does “purity” require a panel of methods for a biologic but one method for a small molecule? Push past “it’s bigger” to the actual mechanism.
• An advanced-therapy company is hiring far fewer analysts than a generic small-molecule manufacturer down the road, for a product that’s scientifically more sophisticated. Reconcile that with “the industry needs analytical skill.”
• A method FMEA gives a mis-integration failure mode an RPN of 90 (S=9, O=2, D=5) and a wrong-diluent failure mode an RPN of 90 (S=5, O=3, D=6). Should they get the same attention? What does RPN hide here?
• Your detection score for “co-eluting unknown degradant” depends on data you don’t have yet (forced degradation isn’t finished). How do you score it now, and what do you commit to?
• The nitrosamine risk assessments concluded “no risk” for many products on the strength of a purge argument, with no confirmatory testing. When is a scientific argument enough, and when do you need the number?

Source note. Method-development framing follows ICH Q14 and ICH Q2(R2). See the modality landscape and risk management for their own sourcing. (Instructor: this session now absorbs what were two separate lecture weeks — confirm the pacing works in a single 3-hour slot.)

2.1 - What's Actually Being Made — the Modality Landscape

The one idea

Before the course can teach how you measure something, it has to teach what you are holding — a small molecule, a large molecule, and an advanced therapy fail differently, are made differently, and demand entirely different definitions of “pure.”

What’s actually being made — the modality landscape

Before any of the technique weeks make sense, the course needs to answer a question that has to come first: what is actually being made?

The bottom rows are a thread the whole course pulls on: as a modality gets more complex, the “purity” question needs more methods to answer it, and each of those methods has to work harder to defend its own answer.

How each modality is made and tested

• Small molecule — API synthesis and scale-up, then solid-dosage manufacturing (direct compression vs. granulation, compression, coating, packaging). Dissolution — the one routine test about the patient’s experience rather than the molecule’s identity — is covered later, in Week 9, alongside the other characterization techniques. The technique weeks that measure all of this — atomic spectroscopy, molecular spectroscopy, separations, specialized characterization, mass spectrometry — follow later in the term.
• Large molecule / biologic — recombinant manufacture, the CQA panel, potency, particles, and comparability, in full.
• Advanced therapy — flow cytometry, ddPCR, gene therapy, mRNA-LNP, and oligonucleotides, in full — flow cytometry gets a second, full technique-lecture pass in Week 9; ddPCR is the one technique here with no dedicated week anywhere else in the term.

What most entry-level jobs actually are

If you walk into a QC or analytical-development lab in this industry, the odds are strongly in favour of small molecule: tablets, capsules, and injectables built from defined organic synthesis still dominate the number of open analytical roles, which is why this course gives that column the most technique-week time and the other two their own depth here, up front, instead of spread across dedicated weeks. That is not a judgment about which modality matters more scientifically — it is a plain reflection of where the jobs are, and a course meant to get you ready for one should weight itself the same way.

Source note. The modality landscape follows standard pharmaceutical-technology and biopharmaceutical references; the jobs-market framing follows industry hiring-volume reporting (BioSpace, ACS C&EN annual employment surveys) rather than a single citable guideline. (Instructor: confirm current hiring-volume figures if citing numbers in lecture.)

2.1.1 - How an API Is Made — Synthesis and Scale-Up

Before there is a tablet, there is a molecule, and before there is a molecule at commercial scale, someone has to have proven — repeatedly, at increasing scale — that the same reaction that worked in a 50 mL flask still works in a 4,000 L reactor. That proof is process research and scale-up, and it is where most of an API’s eventual impurity profile and physical form get decided.

The one idea

A route that works on the bench is a hypothesis about a plant process. Scale-up is the experiment that tests it — and the things that break are almost never the chemistry you’d expect.

A synthesis is a chain of control points

An API is built from starting materials through a defined sequence of reactions, each producing an isolable intermediate, until the final step delivers the API itself — usually followed by a purification (crystallization, sometimes chromatography) that fixes its final form. Every step is a place where things can go right or wrong:

None of this is visible in the finished white powder. It is found — or missed — by the analytical methods built around the route, which is why route chemistry and analytical method development happen together, not in sequence.

Choosing a route is not just chemistry

Process research doesn’t take the first route that works; it evaluates candidate routes against criteria that have nothing to do with whether the reaction is elegant:

• Robustness — does the yield and impurity profile hold up across the ranges of temperature, concentration, and reagent quality a plant will actually see, or does it need bench-level precision?
• Safety — exotherms, gas evolution, unstable intermediates, reagents that are fine in a fume hood and dangerous in a jacketed reactor holding hundreds of litres.
• Purge capacity — can later steps (crystallizations especially) reliably wash an impurity out, so an early imperfection doesn’t have to be perfect?
• Cost, atom economy, and green chemistry — solvent volumes, reagent cost, waste generated per kilogram of API, and increasingly a formal E-factor target.
• Freedom to operate — does the route avoid a competitor’s process patent?

A route redesigned late in development to fix one of these is common, and every redesign reopens the impurity and degradation picture — which is exactly the “moving target” that makes a systematic, comparable analytical program non-negotiable across route changes.

Bench → kilo lab → pilot plant → commercial plant

The same reaction run at four scales is not the same experiment, because the physics around the chemistry changes with vessel size in ways the flask never revealed:

Why scale-up breaks things that bench chemistry never revealed:

• Surface-area-to-volume ratio falls as vessels get bigger, so heat that dissipated instantly in a flask now has to be removed through a jacket — an exotherm that was a non-event on the bench can become a runaway or a safety incident in a reactor.
• Mixing and mass transfer get harder, not easier — a reagent added over seconds by hand goes in over hours through a dip pipe, so local concentration and temperature gradients appear that a flask never had, changing selectivity and impurity formation.
• Filtration and drying times scale with cake depth and batch size, not linearly with batch mass — a crystallization that filters cleanly at 1 kg can be impractically slow, or dry unevenly, at 500 kg.
• Crystallization control becomes the whole ballgame for the API’s final physical form — cooling rate, seeding, and agitation at scale determine particle size distribution and polymorphic form, both of which the next section inherits directly: they decide whether the API even flows and compresses well enough for direct compression, or whether it needs granulating first.

Where GMP begins in the route

Not every step in the synthesis is manufactured under the same regulatory weight. ICH Q7 draws a line at the API starting material — the raw material or intermediate that becomes a significant structural fragment of the API — and GMP applies from that point forward, tightening as the route approaches the final isolation. The logic is purge capacity again: an error early in the route can still be removed by a later purification step; an error in the final crystallization, drying, or micronization reaches the patient with nothing left to catch it. This is also why the final isolated API — its purity, its residual solvents, its elemental impurities, its polymorphic form — is the single most heavily analytically characterised material in the whole route.

Where the analyst sits

The chemist who ran the route on the bench is rarely the person defending it in a regulatory filing five years later at commercial scale. The record that survives — validation batches, in-process specifications, impurity qualification data — has to speak for a process that changed as it scaled. Reading that record and asking does this impurity limit still make sense given how the route actually runs today is analytical judgment, not chemistry.

For discussion

• A palladium-catalysed coupling step is three steps before the final API isolation. Why might the elemental-impurity risk still be considered high, even with two purifications in between?
• A crystallization that gave a single, reproducible polymorph at kilo-lab scale gives a mixture of two polymorphs at pilot-plant scale, with no change to the recipe on paper. What changed, and how would you find out?
• Process research chooses a lower-yielding route because it avoids a Class 1 residual solvent entirely. Was that the right trade, and what would change your answer?

Source note. Route selection and scale-up follow standard process-chemistry texts (Anderson, Practical Process Research & Development) and the Q3C residual-solvent classes. GMP scope follows ICH Q7. (Instructor: add a specific worked route once course examples are finalised.)

2.1.2 - From Powder to Tablet — Solid-Dosage Manufacturing

The previous section ended with the API’s final physical form — particle size, flow, compressibility, moisture sensitivity — decided by how it was crystallised and isolated. Everything in this section is downstream of that: the API’s own properties decide which manufacturing route is even available, before a single formulation decision is made.

The one idea

Every solid-dosage process is a justified answer to one question: given what this API actually is — how it flows, how it compresses, what degrades it — what is the least-handling route to a tablet that still meets its specification, batch after batch?

Three routes to a tablet, in order of how much they touch the powder

Fluid-bed granulation is the wet route worth naming specifically: the powder bed is fluidised in a stream of air while binder solution is sprayed in, and the granules are dried in the same vessel without transferring the batch — one piece of equipment doing agglomeration and drying together, which reduces handling but makes airflow, spray rate, and inlet-air temperature the parameters that decide whether the granule comes out right.

Compression and the properties it exposes

Whichever route produced the material — powder blend or granules — it is compressed into tablets, and compression is where the granulation choice either pays off or doesn’t:

A tablet that is too soft or too friable is usually a granulation problem revealing itself late; a tablet with poor content uniformity is usually a blending or flow problem revealing itself even later still. Compression is the first point any of this becomes visible as a number.

Coating — cosmetic, or a control

A film applied to the compressed tablet does one of two different jobs:

• Cosmetic / taste-masking — colour, gloss, ease of swallowing, identity (colour and imprint) for the patient and pharmacist. Coating weight gain is tracked, but performance isn’t riding on it.
• Functional coating — delayed-release (enteric, survives the stomach) or extended-release (controls the rate the drug is available at all). Here the coating is the mechanism, and dissolution becomes the test that decides whether the product works, not just whether it looks right.

Packaging — protecting what the process just achieved

Everything upstream — the API’s stability, the tablet’s moisture sensitivity, whether the coating is intact — is only as good as the container that ships it:

The justification is a stability and QbD argument, not a preference

None of the choices above are made on convenience. Each is defended with data and traced back to a control strategy:

• The route (DC vs. dry vs. wet granulation) is justified by the API’s measured flow, compressibility, and moisture/heat sensitivity — a quality-by-design argument under Q8: the process is designed around the material’s known properties so that a conforming batch is the expected outcome, not a hoped-for one.
• The packaging is justified directly by stability data under ICH Q1 — a hygroscopic API that shows significant change in an open-dish humidity study earns an Alu-Alu blister or a desiccant bottle; a photosensitive one earns an opaque bottle or overwrap, backed by Q1B photostability data.
• Container-closure integrity is itself a tested attribute, not an assumption — it is part of what the stability program is confirming batch after batch, on the shelf, for the life of the product.

Put together, the manufacturing route and the pack are two halves of one answer to the same question this week’s risk-management framework asks of everything it touches: what could go wrong with this specific molecule, and what does the process or the pack have to do about it?

Where the analyst sits

None of the choices above are visible in a finished tablet by inspection. A tablet made by direct compression and one made by wet granulation can look identical and perform very differently under stress — which is exactly why the in-process controls in the tables above exist, and why a batch record reader needs to know which control is protecting against which upstream decision.

For discussion

• A roller-compacted formulation and a wet-granulated formulation both meet release specifications for the same product. What stability or robustness question would you still want answered before picking one for commercial launch?
• An API is reformulated from a bottle with desiccant to an Alu-Alu blister after a stability failure. What does that change tell you about the API, and what data would have predicted it before the failure?
• A functional (extended-release) coating passes every appearance and weight-gain check, but the batch still fails dissolution. Where would you look first?

Source note. Solid-dosage unit operations follow standard pharmaceutical-technology texts (Aulton, Pharmaceutics: The Design and Manufacture of Medicines). QbD justification follows ICH Q8; packaging justification follows ICH Q1.

2.1.3 - How the Toolkit Scales Up — Large Molecules & Biologics

This section fills in the large molecule column of the modality landscape table above. A small molecule’s “purity” is one number from one method; a protein’s is a dozen partly-independent attributes, and its potency is a biological measurement, not a chemical one. The separations and mass-spectrometry methods that read most of this panel are taught in full — with a worked case that starts here — in Separation Methods and Mass Spectrometry.

The one idea

The analytical control strategy scales with molecular complexity. A 300-dalton small molecule is fully defined by structure and a handful of impurities. A 150,000-dalton antibody produced by living cells is a population of closely related molecules, and no single method describes it — the specification is a panel, and the hardest number on it (potency) is the one a chemist can’t measure directly.

How a biologic is made — and where analysis bites

Contrast with small-molecule manufacturing: defined reactions, isolable intermediates, impurities you can name and synthesise. Here the “impurities” are the cells’ own proteins and DNA, and the product itself is heterogeneous by design.

The monoclonal-antibody CQA panel

Potency — the number a chemist can’t measure

Potency is a required specification for every biologic, and usually the one that limits shelf life. It is a biological measurement of function, reported as relative potency against a reference standard:

• Cell-based bioassays — proliferation, reporter-gene, ADCC/CDC — measure what the molecule does to cells, often read out by flow cytometry (counting labelled cells or measuring a fluorescent reporter one cell at a time — Week 9 teaches the technique in full; the advanced-therapies section introduces its CAR-T application). Biologically relevant, and variable: geometric %CV of 10–20% is normal.
• Binding assays — ELISA, and kinetic methods (SPR / Biacore, BLI / Octet) measuring association and dissociation rate constants and affinity (KD) — are more precise but measure binding, not function; acceptable when binding is shown to predict activity.
• The reference standard is itself a stability-limited material with a potency value; when it is replaced, a bridging study re-anchors the scale, and any drift there propagates into every future result.

Particles and the immunogenicity link

Protein aggregates and subvisible particles are associated with immunogenicity. Control spans three size regimes with different methods, and no single method covers the range: submicron (DLS), subvisible ~1–100 µm (light obscuration, flow imaging microscopy), and soluble oligomers (SEC, AUC, AF4). Orthogonality is the theme: you believe an aggregation result when methods with different failure modes agree.

Comparability — the analytical argument

Every manufacturing change — a new site, a bigger bioreactor, a formulation tweak — raises the question: is it still the same product? ICH Q5E answers it with a tiered, risk-based analytical comparison: the more an attribute matters to safety and efficacy, the more sensitive the method and the tighter the acceptance criterion. Biosimilars run the same logic in reverse: analytical similarity to the reference product is the foundation of the whole abbreviated pathway.

Worked case — a charge-variant shift after a process change

A mAb process moves to a larger bioreactor. Post-change lots show acidic charge variants up from 18% to 26% by icIEF. Everything else in the panel is comparable, and potency is unchanged. Peptide mapping localises the extra acidic species to increased deamidation at a known site; HDX-MS and an FcRn binding assay confirm it doesn’t affect binding or recycling. The resolution: comparable on function, a localised and characterised chemical difference within prior experience, accepted with a tightened in-process control. Had potency moved, or had the variant been uncharacterised, it would have needed a PK bridging study.

Where the analyst sits

With a panel this large, the judgment is triage — which attribute is the one that would actually harm a patient if it drifted. And potency forces a specific call the rest of the course doesn’t: how much assay variability is acceptable when the attribute is function itself. That is the STEAM “A” at its most consequential.

On the job

• A large-molecule CQA panel report will land on your desk as a dozen numbers from a dozen instruments — your first real skill is triage: which one, if it drifted, would you refuse to release on?
• Expect your first exposure to potency assays to be as a reader of a bioassay report, not a runner of one — cell-based assays are typically run by a specialized team, but every analyst on the product needs to interpret the %CV and the reference-standard bridging history.
• “Comparable” on a Q5E comparability exercise is a conclusion you’ll be asked to defend line by line, attribute by attribute — not a single yes/no you can wave at.

For discussion

• A mAb’s potency assay has a geometric %CV of 18%. The specification is 80–125% relative potency. How many replicates do you need to make a confident release decision, and what does that cost per batch?
• SEC says 2.0% aggregate; AUC says 3.5%. Which do you report, and how do you resolve the discrepancy?
• In the worked case, what would have made you insist on a PK bridging study despite unchanged potency?
• Biosimilar developers argue analytical methods are now sensitive enough to make some comparative clinical trials unnecessary. Where is that argument strong, and where does it break?

Source note. Manufacturing and control follow standard biopharmaceutical references and ICH Q5A–Q5E, Q6B, and Q11. Potency and bioassay design follow USP ⟨1032⟩–⟨1034⟩; particles follow USP ⟨787⟩/⟨788⟩/⟨1787⟩. Comparability follows ICH Q5E; biosimilar analytical similarity follows FDA/EMA biosimilar guidance. Endotoxin: USP ⟨85⟩/⟨86⟩. (Instructor: confirm current biosimilar analytical-similarity expectations.)

2.1.4 - The Analytical Frontier — Advanced Therapies

This section fills in the advanced therapy column of the modality landscape table above. Large molecules were a population of one designed molecule. Advanced therapies push further: the “product” can be a virus, a strand of mRNA inside a lipid particle, or a single patient’s own cells — and the batch can be one.

The one idea

As a modality gets more complex and more personalised, characterisation gets harder, potency and identity move to the centre, and shelf life and batch size shrink — toward the point where you must release the product before all the analytical data is in. The analyst is often writing the method and the specification at the same time as the product exists.

Flow cytometry, in practice

Flow cytometry is the defining instrument of cell therapy, and it’s worth understanding mechanically, not just as a table entry — Week 9 gives it the full technique-lecture treatment (instrumentation, controls, and its reach beyond cell therapy); this is the CAR-T-specific application:

• The principle. Cells in suspension flow single-file past a laser. Each cell scatters light (forward scatter ≈ size, side scatter ≈ granularity/complexity) and, if labelled with fluorescent antibodies or dyes, emits at specific wavelengths — measured cell by cell, thousands per second.
• Panel design. Each fluorophore needs a distinct enough emission to be resolved from the others (spectral overlap is corrected by compensation or, in newer spectral cytometers, unmixing algorithms); a panel is built around the specific surface markers (CD antigens) that define the cell population of interest.
• Gating. Data is filtered sequentially — first to exclude debris and doublets, then to select the population of interest by marker combination — and the order and logic of the gates is part of the method, not an analysis afterthought; two analysts gating the same raw data differently can report different results from identical instrument output.
• What it measures for CAR-T: identity and purity (percentage of cells expressing the target CD markers), viability (live/dead stains), transduction efficiency (percentage expressing the introduced CAR construct), and — via a functional assay read out on the cytometer — a component of potency.

ddPCR, in practice

Digital droplet PCR partitions a sample into tens of thousands of nanoliter droplets, runs PCR in each independently, and counts how many droplets are positive versus negative for the target sequence — turning a continuous amplification signal into absolute molecule counts, with no reference standard curve required.

• Vector genome titre — for AAV and lentivirus, the absolute count of vector genomes per mL, the number that anchors dose.
• Vector copy number (VCN) — for transduced cells, how many copies of the therapeutic gene integrated per cell; too low and there’s insufficient expression, too high raises a genotoxicity concern (insertional mutagenesis).
• Why ddPCR over qPCR here: absolute quantitation without a standard curve matters when reference materials are scarce or don’t yet exist — exactly the advanced-therapy situation.

The modalities and their control

The recurring problems

• Potency, again — but worse. For a living or self-assembling product, potency is central and hard: a cell-therapy cytotoxicity assay or an AAV transgene-function assay carries large variability, and there is often no validated reference material.
• Identity of an assembly. When the “molecule” is a capsid carrying a genome, or a lipid particle carrying mRNA, identity is a set of orthogonal reads, not one spectrum — extending the native-MS discussion to whole viral particles.
• Release before the data. A 14-day sterility test does not fit a 3-day autologous product — hence rapid microbial methods (rapid sterility, ATP bioluminescence, NAT-based mycoplasma) and, sometimes, conditional release with follow-up.
• NGS as the new cross-cutting tool. Next-generation sequencing now does vector and plasmid identity/integrity, mRNA sequence confirmation, cell-line characterisation, and adventitious-agent detection — increasingly replacing in-vivo assays.
• The frameworks are still forming. FDA (OTP) and EMA (ATMP / CAT) guidance, and the accelerated pathways these products often use, are evolving faster than the compendia — a lesson about working on a moving regulatory target that the chemometrics/AI week develops later in the term.

Where the analyst sits

With almost no reference materials, forming guidance, a batch size that can be one, and a clock that can be days, the analyst on an advanced therapy is doing the whole of Week 1 at once: choosing what to measure, developing the method, setting the specification, and defending all three. It is judgment under maximum uncertainty, and it is the STEAM “A” with the training wheels off.

On the job

• Flow cytometry gating is one of the first places a new hire’s independent judgment shows up on a report — expect your gating scheme to be reviewed by someone more senior before your first result goes on a batch record.
• If you can read a ddPCR report and explain why it doesn’t need a standard curve the way qPCR does, you’re ahead of most new hires walking into a cell-and-gene-therapy lab.
• “Release before the data” is not a corner being cut — it’s a defined, validated pathway with its own paperwork (conditional release, follow-up commitments); know where to find that paperwork before you need it.
• Reference materials you’d expect to just exist (a certified AAV capsid standard, a certified CAR-T potency standard) often don’t — part of the job is knowing how a lab qualifies its own in-house reference material when nothing external exists.

For discussion

• An AAV lot has a full/empty capsid ratio just outside spec, but infectious titre and potency are both in range. Would you release it? What would you want to know first?
• Two analysts gate the same flow-cytometry raw data differently and get different purity numbers. Whose is “right,” and how would a lab prevent this in practice?
• A CAR-T cytotoxicity assay has a %CV of 30% and there is no certified reference material. How do you set a defensible specification anyway?
• NGS can confirm mRNA sequence, detect adventitious agents, and characterise a cell line. What does it not tell you that a targeted assay still would?

Source note. Gene- and cell-therapy analytics follow USP ⟨1046⟩/⟨1047⟩, the emerging AAV and cell-therapy chapters, and FDA OTP and EMA ATMP guidance; flow cytometry follows standard cytometry references (Shapiro, Practical Flow Cytometry) and USP ⟨1027⟩; ddPCR follows the digital-PCR literature. mRNA-LNP follows the vaccine and mRNA-therapeutic analytical literature; oligonucleotides follow the OBP/USP oligonucleotide work. Rapid microbial methods follow USP ⟨1071⟩/⟨1223⟩ and Ph. Eur. 5.1.6 / 2.6.27. (Instructor: this field moves monthly — confirm the current guidance set; a live flow-cytometry gating demo, even on public example data, lands far better than the table alone.)

2.2 - Quality Risk Management — How Much Evidence Is Enough

The one idea

Two principles govern quality risk management: the evaluation of risk is grounded in scientific knowledge and ultimately links to protection of the patient; and the level of effort, formality, and documentation is proportionate to the level of risk.

Every analytical decision spends a finite budget of time, money, and attention. Risk management is how you point that budget at the failures that would actually hurt a patient, and stop gold-plating the ones that wouldn’t. It is the machinery behind “scientifically justified” — the phrase that appears in almost every ICH guideline and is doing a lot of quiet work.

The ICH Q9 framework

ICH Q9(R1) — Quality Risk Management (the R1 revision, adopted 2023, added guidance on subjectivity, the hazard-versus-risk distinction, formality, and risk-based decision-making). The process is a loop, not a form:

Two ideas from Q9(R1) matter for the analyst:

• Hazard is not risk. A hazard is the potential to cause harm; risk combines the probability of that harm with its severity. “This solvent is toxic” is a hazard statement; “at the residual level this method can detect, the exposure is X% of the PDE” is a risk statement.
• Formality is a dial, not a switch. A one-line rationale, a risk-ranking table, and a full cross-functional FMEA are all valid quality risk management — the guideline asks you to match the formality to what is at stake, and to say why.

The toolbox

Each tool below gets its own full walkthrough — mechanics, a worked analytical example, and where it breaks down:

FMEA in action

Failure Mode and Effects Analysis decomposes a method or process into steps, and for each step asks: what could fail (failure mode), what would that do (effect), why would it happen (cause), and how would we catch it (controls). Each mode is scored:

Risk Priority Number = Severity × Occurrence × Detection

• Severity — how bad the effect is for the patient or the decision (a wrong release decision scores high; a re-run scores low).
• Occurrence — how often the cause is expected to produce the failure.
• Detection — how likely the existing controls are to catch it before it matters. High detection score = poorly detected — this scale runs backward, and it is where most FMEAs go wrong.

Modes with a high RPN, or a high severity regardless of RPN, get an action; then the mode is re-scored to show the action worked. The number is easy to game and easy to over-trust — see the full FMEA walkthrough for a worked multi-failure-mode example and the known weaknesses worth teaching so students don’t over-trust it.

From risk assessment to control strategy

A control strategy is the planned set of controls — derived from current product and process understanding — that assures performance and quality. It is the output of risk management, not a separate exercise:

• Attribute risk assessment decides which quality attributes are critical (CQAs) and therefore need a specification and a method.
• Method risk assessment (an FMEA against the analytical target profile) decides which method parameters need to be controlled, and how tightly — this is where a robustness study is a risk-control activity, not a validation checkbox.
• The specification (Q6) and the stability program (Q1) are risk decisions in numeric form.
• Under the analytical procedure lifecycle, what counts as a reportable change to a method is set by the risk it carries.

Worked example — nitrosamine risk assessments. Between 2018 and 2023 every marketing authorization holder had to assess every product for the risk of N-nitrosamine impurities (NDMA, NDEA, and drug-specific nitrosamines), triggered by the valsartan recalls. The assessment is a textbook QRM: identify the hazard (potent mutagenic carcinogens), analyze the risk (synthetic route, nitrite sources, secondary amines, recovered solvents, water; then confirmatory testing), control it (route changes, nitrite scavengers, tightened limits at ppb levels), and communicate it (to the agency, on a deadline). It also shows the analyst’s exposure directly: the risk conclusion depended entirely on whether a method existed that could see a nitrosamine at its acceptable intake — a detection problem.

Source note. Risk management is anchored in ICH Q9(R1), with ICH Q8(R2), Q10, and Q14. FMEA methodology follows IEC 60812 and the AIAG-VDA FMEA handbook. The nitrosamine case follows the EMA/FDA guidance and Article 5(3) referral outcomes. (Instructor: confirm the Q9(R1) adoption date and current EMA nitrosamine guidance revision.)

2.2.1 - FMEA in Detail — Scoring, Scaling, and Where It Breaks

The one idea

RPN is a prioritization tool, not a measurement. It tells you which failure mode to look at first — it does not tell you how much worse one failure mode is than another, and treating it like it does is the single most common way an FMEA goes wrong.

Mechanics

Failure Mode and Effects Analysis decomposes a method or process into steps, and for each step asks: what could fail (failure mode), what would that do (effect), why would it happen (cause), and how would we catch it (controls)? Each mode is scored on three independent 1–10 scales and multiplied:

Risk Priority Number = Severity × Occurrence × Detection

• Severity — how bad the effect is for the patient or the decision. A wrong release decision (a failing batch shipped, or a good batch scrapped) scores high; a re-run that costs a day scores low.
• Occurrence — how often the cause is expected to produce the failure, from historical data or, absent that, engineering judgment.
• Detection — how likely the existing controls are to catch the failure before it matters. High detection score = poorly detected — this scale runs backward from the other two, and it is where most FMEAs go wrong: a “10” means “we would almost certainly miss this,” not “we’d definitely catch it.”

Modes with a high RPN, or a high severity regardless of RPN, get a corrective action; the mode is then re-scored to show the action actually moved the number, not just noted “action taken.”

Worked example — an HPLC assay method

Two things worth noticing in this table: the carryover mode (RPN 200) outranks the drifting-calibration mode (RPN 108) even though a wrong release decision from a drifting curve is arguably worse — because carryover’s detection score was so bad (8: nobody was actually looking for it). That is RPN doing its job: surfacing the blind spot, not just the scariest-sounding failure.

Why the same RPN can mean very different things

Both score 90. Mode A is a rare but severe failure that’s moderately well detected; mode B is a more frequent, less severe failure that’s poorly detected. A severity-first reviewer would act on A first regardless of the tied RPN — which is exactly the argument for not ranking a whole FMEA by RPN alone, and for flagging any mode with severity ≥ 9 for action independent of its RPN.

FMEA vs. FMECA

FMECA adds a formal criticality analysis on top of FMEA — instead of (or alongside) the RPN product, each failure mode’s criticality is assessed against a defined severity/probability matrix, often with failure-mode ratios when one cause can produce several distinct failure modes. In practice, most analytical-development FMEAs are really FMECAs in miniature: teams already flag “any severity ≥ 9 regardless of RPN” as an action trigger, which is a criticality rule, not a pure RPN rule.

Known weaknesses — worth teaching so students don’t over-trust the number

• RPN is an ordinal product treated as if it were interval data; an RPN of 100 is not “twice as bad” as 50, and — as shown above — different (S, O, D) triples give the same RPN with very different meaning.
• Detection and occurrence are often guessed. Q9(R1) explicitly flags this subjectivity and asks for it to be managed (defined scales, cross-functional scoring, documented assumptions).
• Many programs now supplement or replace RPN with a severity-first criticality matrix, or with risk ranking and filtering when comparing failure modes across unrelated processes.

When to reach for something else

FMEA decomposes one process step by step and scores every mode on the same three scales — it’s the right tool when the process is defined and you’re building or revising its control strategy. Reach for fault tree analysis instead when you’re working backward from a failure that has already happened and need to trace its root cause; reach for risk ranking and filtering when you’re comparing risks that don’t share a process or a scale at all.

2.2.2 - Fault Tree Analysis — Working Backward From a Failure

The one idea

FMEA asks, before anything has gone wrong, “what could fail in this process?” FTA asks, after something already has, “what chain of causes could have produced exactly this failure?” They run in opposite directions through the same failure space, and a mature quality system uses both.

Mechanics

A fault tree starts with a single, precisely defined top event — the failure that occurred — and branches downward through logic gates to the conditions that could produce it:

• An AND gate means every branch beneath it must be true for the event above to occur (e.g., a wrong result reaches release and the reviewer misses it).
• An OR gate means any one branch beneath it is sufficient (e.g., a degraded standard, a mis-set instrument parameter, or a transcription error could each independently cause a wrong reported value).

The tree bottoms out in basic events — causes you either confirm or rule out with data, not further decomposition. No formal Boolean notation is required to use this at the bench; the value is in the discipline of writing every “or this could have happened” branch down before deciding which one is true.

Worked example — an out-of-specification (OOS) assay result

Top event: Reported assay result outside the specification range.

Reported assay OOS
 └─ OR: Result is a true failure vs. a lab/analytical error
     ├─ OR (analytical/lab error branch)
     │    ├─ Standard was out of date or degraded
     │    │    → check standard prep date, storage conditions, prior QC data
     │    ├─ System suitability failed but was overridden or missed
     │    │    → review the suitability data logged that run
     │    ├─ Sample preparation error (dilution, weighing, transcription)
     │    │    → re-check the prep worksheet against the raw balance/pipette record
     │    └─ Instrument malfunction (detector drift, pump seal, injector carryover)
     │         → review instrument maintenance and diagnostic logs
     └─ AND (true-failure branch)
          ├─ Manufacturing process produced an out-of-spec batch
          │    → review batch record deviations, in-process controls
          └─ No analytical error found in the OOS investigation above
               → confirms the result should stand

An OOS investigation under Q7/GMP follows exactly this shape: Phase I (laboratory investigation) works the analytical-error branches first, because a confirmed lab error can invalidate the result without ever reaching the manufacturing branch; Phase II (full investigation) only proceeds down the true-failure branch once Phase I finds no assignable analytical cause.

When to reach for it vs. FMEA

FTA is reactive — it exists because a specific, already-observed failure needs a root cause, and it only makes sense once that top event is precisely defined. FMEA is prospective — it exists to find failure modes before they happen, and it doesn’t require anything to have gone wrong yet. In practice, a documented FMEA is often what an OOS investigation checks against: “was this failure mode already identified, and if so, why did the existing control not catch it?”

Known weaknesses

• FTA is only as good as the top event’s definition — a vaguely stated failure (“something went wrong with the assay”) produces an unusably broad tree.
• Trees for a complex, multi-step method can become large fast; without discipline about what counts as a “basic event,” the tree can sprawl without converging on an actionable root cause.
• FTA doesn’t score or prioritize the way RPN does — it’s a diagnostic tool for one failure, not a ranking tool across many, which is why it’s typically paired with an FMEA or risk ranking rather than used as the whole risk program.

2.2.3 - HACCP — Critical Control Points, Borrowed From Food Safety

The one idea

Instead of scoring every failure mode in a process, HACCP asks a narrower, sharper question: where in this process is a critical control point — a step where losing control means the hazard reaches the patient, with nothing downstream left to catch it?

Mechanics

HACCP originated in food safety (developed for NASA’s manned space program, to guarantee astronaut food had zero tolerance for contamination) and maps cleanly onto sterile and biologic manufacturing, which share that same “no downstream catch” property. The full method has seven principles; the ones that matter for a control-strategy discussion are:

1. Conduct a hazard analysis — what biological, chemical, or physical hazards could occur at each process step?
2. Identify critical control points (CCPs) — of all the steps, which ones are the point where the hazard can still be prevented, eliminated, or reduced to an acceptable level? A step downstream of the true control point is not itself a CCP, even if a hazard could theoretically show up there.
3. Establish critical limits — a measurable threshold for each CCP (a temperature, a pressure differential, a bioburden count) that separates “in control” from “out of control.”
4. Establish monitoring — how and how often the critical limit is checked, and by whom.
5. Establish corrective action — what happens, specifically, the moment a critical limit is exceeded.

(The remaining two principles — verification and record-keeping — are the documentation backbone that makes the first five auditable, and aren’t specific to any one CCP.)

Worked example — sterile fill/finish bioburden control

The filtration step is the CCP because it is the last point where the hazard (a non-sterile product) can still be prevented — everything upstream can be caught or corrected later in the process, and everything downstream has no way to remove an organism that already got through. That is the test for “is this a CCP,” not “could something go wrong here.”

When to reach for it vs. FMEA

FMEA decomposes an entire process into every failure mode and scores each one — useful when you want comprehensive coverage of a method or process. HACCP deliberately does the opposite: it narrows attention to the small number of points where losing control is unrecoverable, which is exactly right for manufacturing and process risk (sterility assurance, allergen control, cross-contamination) but a poor fit for analytical method risk, where FMEA’s step-by-step, fully-scored decomposition is what regulators and most labs actually expect.

Known weaknesses

• Works best when there really are a small number of make-or-break points; forcing a HACCP structure onto a process with many, roughly-equally-important risks just reproduces an FMEA with extra steps.
• Identifying the true CCP takes real process understanding — misidentifying a downstream inspection point as a CCP gives false confidence, since it doesn’t actually prevent the hazard, only detects it after the fact.
• Less natural for analytical-method risk (where FMEA dominates) than for manufacturing/process risk, where it originated and still fits best.

2.2.4 - HAZOP — Deviations From Design Intent

The one idea

HAZOP doesn’t start from a list of known failure modes the way FMEA does — it starts from the process’s own design intent and systematically asks what happens if reality deviates from it, one guide word at a time, parameter by parameter.

Mechanics

For each parameter at each step of a process (flow rate, temperature, pressure, pH, concentration, time), a HAZOP team applies a fixed set of guide words and asks what a deviation of that kind would actually cause:

Unlike FMEA, HAZOP doesn’t score every deviation on Severity/Occurrence/Detection — the output is a qualitative list of credible deviations, their causes, consequences, and existing safeguards, with follow-up actions where the safeguards look thin.

Worked example — HPLC flow rate and a bioreactor’s temperature

Notice the bioreactor row: a MORE temperature deviation doesn’t just risk an obvious failure (dead cells) — it can silently shift a critical quality attribute (glycosylation) while the culture still looks healthy, which is exactly the kind of consequence a guide-word walk-through is designed to surface deliberately, rather than relying on someone to have already thought of it.

When to reach for it vs. FMEA

HAZOP and FMEA overlap heavily in outcome — both end up identifying deviations and their consequences — but HAZOP is organized around the process’s design intent, parameter by parameter, which makes it a natural fit for engineering and process-design teams examining a new unit operation (a reactor, a filtration skid, a chromatography skid) before it’s ever run. Most QC labs default to FMEA for method risk because the “steps” of a method are already well defined; HAZOP earns its keep more in process/engineering contexts where the parameters, not discrete process steps, are the natural unit of analysis.

Known weaknesses

• Applying every guide word to every parameter at every step can be slow and exhaustive for a complex process — teams often scope it to the parameters most likely to matter, which reintroduces some of the same judgment calls HAZOP is meant to avoid.
• Without a scoring step, prioritizing which deviations to act on first is a separate, later exercise — HAZOP tells you what could deviate, not which deviation matters most.
• The overlap with FMEA means running both on the same process is often redundant; most sites pick one as the primary tool for a given risk type (HAZOP for process design, FMEA for methods) rather than running both routinely.

2.2.5 - Risk Ranking and Filtering — Comparing Risks That Don't Share a Scale

The one idea

FMEA scores risks within one process on one shared scale. Risk ranking and filtering compares risks across processes, products, or sites that have no natural shared scale at all, by explicitly defining and weighting the criteria that make one risk matter more than another.

Mechanics

1. Define criteria that matter across every risk being compared — typically patient impact, regulatory exposure, likelihood, and detectability, though a portfolio-level exercise might add business impact or timeline pressure.
2. Weight the criteria to reflect what actually matters most in this decision (patient impact usually carries the most weight; timeline pressure usually carries the least, if it’s included at all).
3. Score each risk against every criterion, using whatever scale is practical (often 1–5, sometimes qualitative bands converted to numbers).
4. Compute a weighted score and rank — then filter: set a threshold or a headcount/budget cutoff and act on what clears it, explicitly documenting why anything below the line is being deferred.

The “filtering” half is as important as the ranking half — the exercise exists to produce a short, defensible action list, not just a long sorted table nobody acts on.

Worked example — a site quality council’s quarterly resourcing decision

Five unrelated findings are competing for the same limited investigation and remediation budget this quarter:

Ranked and filtered against a “fund the top three this quarter” cutoff: the stability OOS trend (26) and the documentation deviation (23) fund first regardless of tiebreaks; the method-transfer gap and the inspection commitment tie at 19 and need a secondary criterion (e.g., regulatory due date) to break the tie for the third slot. The aging-fleet risk (13) is explicitly deferred — not ignored, documented as deferred, with the reasoning on record for the next review cycle.

When to reach for it vs. FMEA

Use risk ranking and filtering when the decision spans multiple unrelated risks competing for the same finite resource — funding, staffing, audit time — not when you’re working through the failure modes of a single process or method, which is FMEA’s job. It’s the tool for “which of these five different problems do we fix first,” not “what could go wrong in this one method.”

Known weaknesses

• The weighting scheme is itself a subjective judgment call — this is the same criticism Q9(R1) raises about FMEA’s Severity/Occurrence/Detection scoring; risk ranking and filtering doesn’t remove that subjectivity, it just moves it up a level, from scoring individual failure modes to weighting the criteria that compare them.
• Different stakeholders (quality, manufacturing, regulatory affairs) often disagree on the weights themselves — reaching agreement on the weighting is frequently the harder part of the exercise, not the scoring.
• A weighted score can create false precision — a 26 vs. a 23 looks decisive, but both numbers rest on the same soft inputs as any other risk score, and the ranking should be sanity-checked qualitatively before being treated as a tiebreaker.

2.2.6 - Ishikawa / Fishbone / PHA — Structuring the First Pass

The one idea

An FMEA is only as complete as its failure-mode list, and that list has to come from somewhere. Ishikawa (fishbone) diagrams and Preliminary Hazard Analysis are how you brainstorm it systematically, category by category, instead of relying on whoever’s in the room to remember everything from experience.

Mechanics

An Ishikawa diagram starts from a defined effect (an observed or feared problem) and branches into standard categories of contributing cause. Adapted for an analytical lab, the categories are usually:

• Method — the procedure itself: parameters, steps, order of operations
• Materials — reagents, standards, reference materials, columns, consumables
• Machine — instrumentation: hardware, software, calibration state
• Manpower — analyst training, technique, fatigue, handoffs
• Environment — temperature, humidity, lighting, vibration, power quality

Preliminary Hazard Analysis (PHA) is a lighter, earlier-stage cousin — a first-pass brainstorm of what could possibly go wrong before a process even exists in detail, often just a simple hazard/cause/effect table, used to scope what a later, more formal risk assessment needs to cover.

Worked example — “unexpected peak in a stability sample”

This is deliberately a long, unfiltered list — the point of the fishbone pass is coverage, not judgment. Three or four of these branches then become the failure-mode column of a follow-on FMEA: “contaminated mobile phase” becomes a scoreable failure mode with its own severity, occurrence, and detection; “detector lamp aging” becomes another. The fishbone did the brainstorming; the FMEA does the prioritizing.

When to reach for it vs. FMEA directly

Skip straight to FMEA when the failure modes are already well understood from experience — a mature, well-characterized method rarely needs a fresh fishbone pass. Reach for Ishikawa or PHA first when the process or method is new or unfamiliar, or when a cross-functional team is starting from very different mental models of what could go wrong and needs a shared, structured brainstorm before anyone starts scoring anything.

Known weaknesses

• Purely qualitative — a fishbone diagram or PHA table has no scoring or prioritization built in; it can surface a long list of contributing factors without telling you which ones actually matter.
• Coverage depends heavily on who’s in the room; the category headings help structure the brainstorm, but they don’t guarantee completeness the way a systematic top-down decomposition (like FMEA’s step-by-step structure) does.
• It is not, on its own, a complete quality risk management record — it’s the front end that typically feeds into an FMEA or risk ranking and filtering exercise, not a substitute for either.

3 - Week 3 — Sep 28: Introduction to NMR Spectroscopy

(Lecture 3. Instructor: MAI.) This week and next week belong to nuclear magnetic resonance spectroscopy — the technique that reads a molecule’s structure from how its nuclei respond to a magnetic field. It’s taught back to back with the chemistry, method-development, and risk framework from the last two weeks still fresh, and right before atomic spectroscopy picks the small-molecule toolkit back up.

What this session covers

• The physical basis of NMR: nuclear spin, the applied field, resonance.
• ¹H and ¹³C NMR as the two workhorse experiments.
• Chemical shift, coupling, and integration — what each tells you about a structure.
• Problems assigned for next class.

Where this fits in the course

NMR doesn’t get a dedicated technique week later in the term the way atomic and molecular spectroscopy do, but it shows up as a working tool elsewhere: solid-state NMR appears in Week 6’s polymorph toolbox, 2D-NMR is one of the higher-order-structure methods for a biologic, and ¹H NMR is the technique that caught the heparin/OSCS adulteration case discussed later in the term. This week and next give you the fundamentals those later mentions assume.

Source note. (Instructor MAI: this page is a scheduling placeholder — replace with your own material and problem set.)

4 - Week 4 — Oct 5: NMR Spectroscopy, Continued — Interpretation

(Lecture 4. Instructor: MAI.) Last week introduced NMR; this week goes over the assigned problems and moves into reading a real spectrum end to end.

What this session covers

• Going over the problem set from last week.
• Spectral interpretation: building a structure from chemical shift, multiplicity, and integration together.
• Where NMR sits next to the separation and mass-spectrometry evidence taught later in the term for confirming an identity or a structure.

Where this fits in the course

Atomic spectroscopy picks the AF/SM-led thread back up next week. The risk-homework thread resumes there too.

Source note. (Instructor MAI: this page is a scheduling placeholder — replace with your own material.)

5 - Week 5 — Oct 12: Atomic Spectroscopy (Risk Homework)

(Lecture 5.) NMR was MAI’s the last two weeks; this week the AF/SM thread picks back up where Week 2 left it, with the first of three technique weeks — atomic spectroscopy, then molecular spectroscopy, then separations and mass spectrometry. The API-synthesis section flagged metal catalysts as a source of elemental impurities. This week is where that risk gets measured, and where it either clears a limit or has to be controlled.

The one idea

A test that produces a number — or a pass — is worthless if the number isn’t a measurement of the thing you actually care about.

Atomic spectroscopy — the technique family

Where UV-Vis measures molecules, atomic spectroscopy measures elements: atomise the sample, then measure absorption or emission at element-specific wavelengths, or count ions by mass.

The regulatory frame — ICH Q3D / USP ⟨232⟩–⟨233⟩

Q3D sets permitted daily exposures (PDEs) for elemental impurities by route of administration, grouped into classes: Class 1 (As, Cd, Hg, Pb — always assessed), Class 2A (Co, V, Ni — likely, assess if plausible), Class 2B and Class 3 (assessed only if intentionally added, such as a catalyst named in the synthesis, or otherwise a known risk). The analyst’s job splits in two:

• The risk assessment — where could each element come from (drug-substance synthesis and catalysts — the API-synthesis section’s Pd, Pt, Ni couplings, for instance), excipients, water, manufacturing equipment, container closure — and does the total plausibly approach the PDE? This is a Q9 risk-management exercise, and it decides whether routine testing is even needed.
• The method — closed-vessel microwave digestion, then ICP-OES or ICP-MS, validated per USP ⟨233⟩ (specificity, accuracy by spiked recovery, precision, a demonstrated limit) with internal standards and often standard addition for matrix effects.

Worked case — from “heavy metals” to element-specific testing

Until the 2010s, most pharmacopeias controlled elemental impurities with a single colorimetric heavy-metals test (the old USP ⟨231⟩): precipitate metal sulfides, compare the resulting brown colour to a lead standard, report pass/fail. It was cheap and universal — and wrong in both directions. It under-recovered the elements of most concern (mercury, and much of the arsenic and lead, were lost in sample preparation) and it flagged samples on colour that had nothing to do with toxic metals. ICH Q3D and USP ⟨232⟩/⟨233⟩ replaced it with a risk assessment plus element-specific, validated instrumental methods. The lesson is specificity: a test that produces a number, or a pass, is worthless if the number isn’t a measurement of the thing you care about.

Risk-assessment assignment (Risk Homework, checkpoint 1 of 3)

Using the FMEA / risk-ranking approach from Week 2: take a drug product of your choice and build the Q3D elemental-impurity risk assessment — sources (starting with the synthetic route), contributions, and a defended conclusion on which elements, if any, need routine testing and at what stage. The same assignment structure returns at molecular spectroscopy and mass spectrometry — by the third pass, scoring detectability should be a habit.

Where the analyst sits

Q3D makes elemental impurities feel like a checklist — classes, PDEs, a table of elements. The judgment is upstream of the table: does the method referenced in a risk assessment actually detect each named element at 30% of its PDE, or is the assessment leaning on a method that was never challenged to see that low? Checking that is the job, not trusting that someone already did.

For discussion

• The old colorimetric heavy-metals test had a %RSD better than many ICP methods. Why is that not reassuring?
• A Q3D risk assessment concludes “no routine testing needed” for palladium, based on the synthetic route in the API-synthesis section. What evidence would you want to see before accepting that conclusion?
• If your ICP-MS method has a validated limit of quantitation right at 30% of an element’s PDE, is that method fit for purpose? What would make you more or less comfortable with it?

Source note. Elemental impurities: ICH Q3D(R2), USP ⟨232⟩/⟨233⟩, and the history of the withdrawn ⟨231⟩.

6 - Week 6 — Oct 19: Molecular Spectroscopy (Risk Homework)

(Lecture 6.) Last week measured elements. This week measures molecules two ways: first by how much light they absorb (UV-Vis, the oldest quantitative method in the toolkit), then by how their bonds vibrate (IR and Raman), which also tells crystal form apart from crystal form. Both matter for the same reason as everything else this term — the number only means something if you know which of its failure modes you’re looking at.

The one idea

A = εbc looks like a law of physics; treat it like one and you’ll misread every deviation as a sample problem when half are the instrument and half are chemistry the equation never promised to cover. Move to vibrations and the rule flips: IR and Raman see the same molecular vibrations through opposite selection rules — a vibration shows in IR if it changes the dipole moment, in Raman if it changes the polarisability — two halves of one picture, plus a second axis entirely in the solid-state techniques: how the identical molecules are packed, which changes dissolution and bioavailability without changing a single bond.

Near-IR is the outlier of the vibrational set: it sees only faint overtones and combination bands, broad and overlapping, carrying real information that no human can read off the plot — which is why NIR and chemometrics grew up together.

UV-Vis and Beer’s law

A = ε b c — absorbance equals molar absorptivity times path length times concentration. It holds when the light is monochromatic, the analyte is dilute and non-interacting, and nothing in the sample scatters or fluoresces. It fails — usually curving toward the concentration axis — for identifiable reasons:

Absorbance is kept in roughly 0.2–1.0 AU not by tradition but because that is where the assumptions above are safest and the relative error is lowest.

The common thread across all five uses: it’s the same absorbance measurement, pointed at a different question. What changes is not the physics, it’s which deviation from Beer’s law you have to worry about for that particular use — stray light matters enormously for a high-absorbance assay and barely at all for an identity check.

The vibrational and fluorescence techniques

Adjacent techniques — the solid-state toolbox

Not this week’s core content, but worth knowing exists: the API is the same molecule in every crystal form, and a separate family of techniques reads how it’s packed rather than what bonds it has — X-ray powder diffraction (the polymorph/hydrate/salt identity method), differential scanning calorimetry and thermogravimetric analysis (melting, transitions, Tg; water/solvent content), dynamic vapour sorption (hygroscopicity, amorphous content), polarised light microscopy (a fast first look), and solid-state NMR (polymorph ID and quantitation — the same nucleus-in-a-field physics as the NMR sessions earlier in the term, applied to a solid rather than a solution). Week 9 covers the first two in full. The recurring teaching point, if you go looking: amorphous content — a small amorphous fraction is more soluble, less stable, and often invisible to XRPD below ~5%, and it’s the classic hidden variable behind a batch that suddenly fails dissolution.

What all of this is used for

Making the result trustworthy

For an identity test: the reference spectrum, matched sampling, a documented acceptance criterion (a correlation threshold or specified band/peak positions, not “looks the same”), and awareness that a polymorph difference can fail an over-tight identity test for the right reason. For a quantitative NIR or Raman method you are validating a model, not just an instrument: the calibration set must span every source of variation the method will meet, a reference method supplies the truth values, and preprocessing is locked with the model.

Compendial basis: USP ⟨857⟩ (UV-Vis), ⟨854⟩ (MIR), ⟨858⟩ (Raman), ⟨1119⟩ (NIR), ⟨941⟩ (XRPD), ⟨891⟩ (thermal analysis); Ph. Eur. 2.2.25 / 2.2.24 / 2.2.48 / 2.2.40 / 2.9.33 / 2.2.34.

Risk-assessment assignment (Risk Homework, checkpoint 2 of 3)

Take an in-line NIR blend-uniformity method and build the method FMEA against its analytical target profile (Week 2 approach). Weight the failure modes a spectroscopic model adds over a wet method: an out-of-calibration-range sample, probe-window fouling, feed-material drift, a stale model. Score their detectability — which would the running system actually catch? The third checkpoint is mass spectrometry.

Reading a Certificate of Analysis

A CoA is one page listing every routine test on a batch, the result, the specification, and pass/fail. Reading one competently, on day one, means recognising where every line came from — pulling together everything the course has taught so far, and everything still to come:
